FX8-S

8" FX Style Subwoofer

This product has been discontinued
Technology header click
Icon marine 80
Fx8s webrgb
Tags:

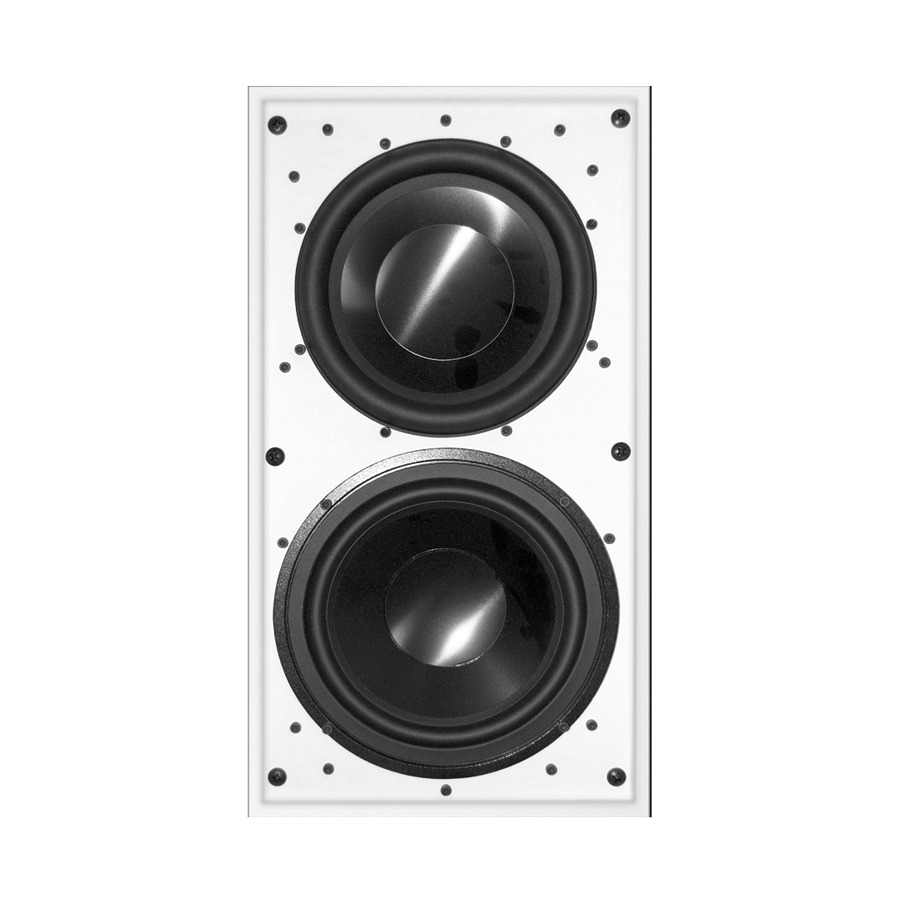

A custom sized FX style inwall subwoofer. With one 8" Active subwoofer and one 8" Passive subwoofer, this makes a great solution for smaller footprint and still having booming bass.

Specifications
Frequency Response

45-250Hz +/-3dB

Nominal Impedance

8 ohms

Sensitivity

88dB 2.83V/1m

Recommended Power Range

50 - 200W

Woofer

(1) 8" (204mm) Active, (1) 8" (204mm) Passive

Enclosure

Aircraft Marine Grade Aluminum

Finishes

White Paintable Grille

Required Mounting Depth

4.125 in (104.77 mm)

Width

11.204 in (284.58 mm)

Depth

3.875 in (98.42 mm)

Height

19 in (482.60 mm)

Grille Height

10.304 in (261.72 mm)

Grille Width

18.1 in (459.74 mm)
