QX1010

10" Shallow Depth In-Wall Subwoofer

Technology header click
Tags:

Now with Magnetic Grille mount.

The QX1010 is just one option in James Loudspeaker’s series of in wall subwoofers. These unique subs are designed to offer smooth, deep bass to compliment any audio system while maintaining a discrete and space-saving design which doesn’t break the budget. The QX1010 is a compact QX style in-wall subwoofer, using the same mounting system as other QX style speakers. With a single 10” active woofer, this sub offers a great solution for smaller footprint subwoofers while still delivering booming bass. Designed for mounting behind displays, this sub is extremely versatile and easily hidden.

The QX1010 is constructed entirely from aircraft grade aluminum for strength, sonic performance, and durability. Available for marine and outdoor use with the addition of a severe powder coat. Complete with a custom colored, perforated aluminum grille which sits only 3/16” off the wall or completely flush with the addition of a custom James pre-construction board, this sub can easily be integrated into any environment, offering a subdued visual effect, designed to be as unobtrusive as possible. Paintable grille available by request only.

For marine/outdoor use, order the QX1010M.

Specifications
Frequency Response

27-140Hz +/-3dB

Nominal Impedance

8 ohms

Sensitivity

88dB 2.83V/1m

Recommended Power Range

150 - 500W

Recommended Amplifier

M1000

Woofer

(1) 10" (254mm) Laminated Aluminum Honeycomb

Enclosure

Aircraft Marine Grade Aluminum

Finishes

White Paintable Grille (Paintable By Request Only)

Cutout

13.625" x 19.750"

Required Mounting Depth

3.875 in (98.42 mm)

Width

14.32 in (363.73 mm)

Depth

4.125 in (104.77 mm)

Height

20.32 in (516.13 mm)

Grille Height

20.32 in (516.13 mm)

Grille Width

14.32 in (363.73 mm)

Preconstruction Board (PCB)

QX1010PB

Flush Mount Preconstruction Board (PCBF)

QX1010PBF

Click photo for download image options

Qx1010

QX1010 - Available downloads

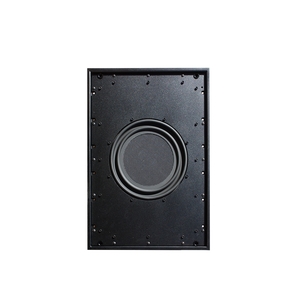

Title: QX1010 front
