812FS

8", 4-Way Freestanding, Bi-Amp Ready

This product has been discontinued
Technology header click
Icon quad 80
812fs web
Tags:
Specifications
Frequency Response

40Hz-40kHz +/-3dB

Nominal Impedance

8 ohms

Sensitivity

102dB 2.83V/1B

Crossover

4-Way

Recommended Power Range

50 - 300W

Woofer

(4) 8" (203mm) Aluminum

Mid-bass

(4) 6.5" (165mm) Neodymium

Mid

(4) 6.5" (165mm) Neodymium

Tweeter

(4) 1" (25mm) Beryllium

Enclosure

Aircraft Marine Grade Aluminum

Finishes

Black,White Cloth, or White Paintable Grille

Width

17.5 in (444.50 mm)

Height

75 in (1905.00 mm)

Product Documents

    None

Related Documents

Click photo for download image options

812fs web

812FS - Available downloads

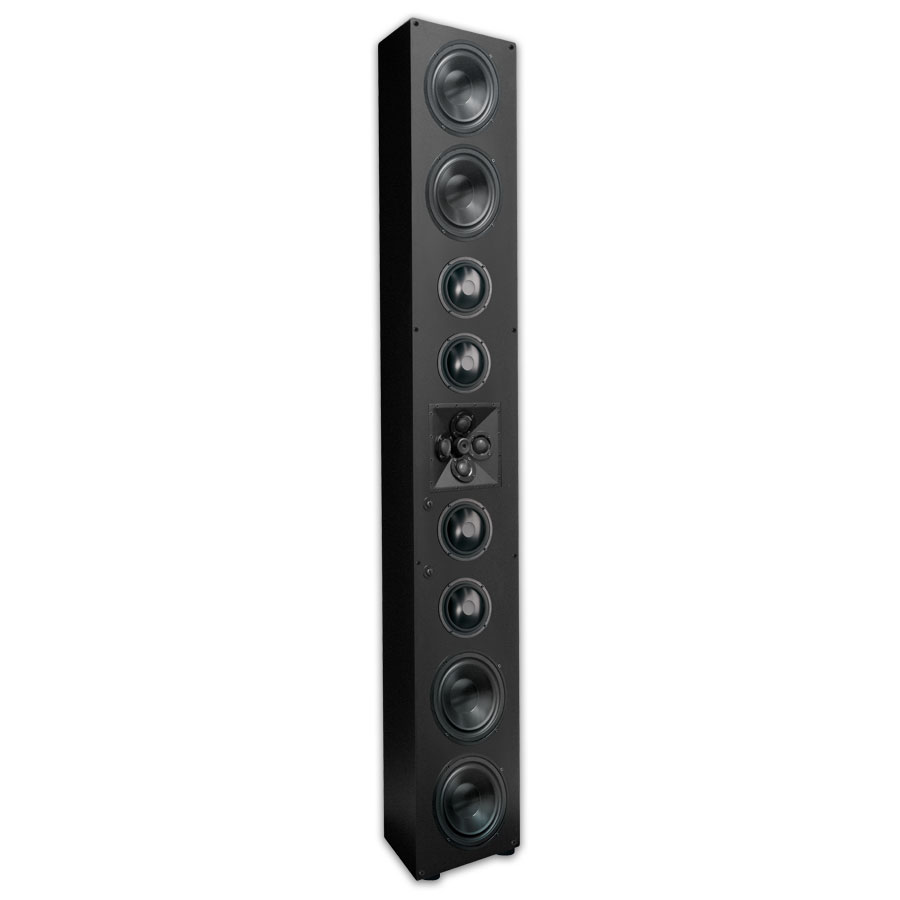

Title: 812FS ISO View

812fs web
Size Resolution (Right-click: Save link as...)
32.69 KB 900x900 812FS_Web.jpg
812fs collage

812FS - Available downloads

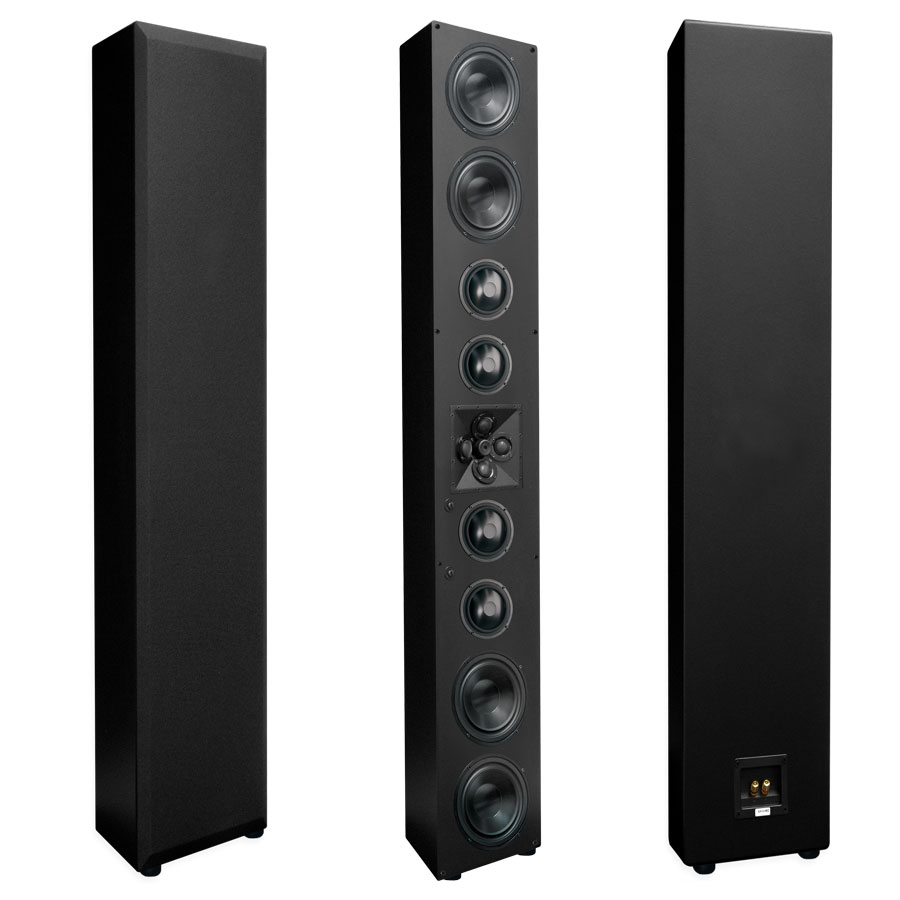

Title: 812FS Line-Up

812fs collage
Size Resolution (Right-click: Save link as...)
56.48 KB 900x900 812FS_Collage.jpg
Be grilles web

812FS - Available downloads

Title: Optional cloth and perf grilles are available

Be grilles web
Size Resolution (Right-click: Save link as...)
128.65 KB 900x900 BE_grilles_web.jpg
