A2.1 (New)

James 3 Channel 360W Amplifier

Tags:

Designed and engineered by James Loudspeaker, we leveraged our decades of sound engineering experience to build what might be the simplest, most smartly designed amp in the industry. Designed for bi-amping in mind, the A2.1 provides left and right stereo channels, a subwoofer channel, and a simple to use crossover with level adjustments, providing extreme flexibility and outstanding performance for a number of applications.

Featuring analog, and digital inputs, and a IR remote control, the A2.1 is ideal for integration with a stand-alone TV in a bedroom or guest room where you desire premium L/R & Subwoofer sound. This may include a SoundBar with an inwall/inroom subwoofer.

Switchable input sensitivity allows use with mobile phones and standard audio sources and a switchable subsonic filter of 30Hz or 50Hz allows better matching to subwoofers.

The A2.1 is perfect for smaller landscape system using both left, right and subwoofer speakers. Check out our prepackaged landscape systems, the 65AT4, the 85AT4 and the 105AT4.

The A2.1 makes a great addition to your computer to add a high-end media experience requiring rich L/R & Subwoofer sound.

Specifications
Number of Channels

3 (left/Right/subwoofer)

Nominal Power Output (8 ohms)

40W / 40W / 70W (L/R/Sub)

Nominal Power Output (4 ohms)

65W / 65W / 170W (L/R/Sub)

Nominal Power Output (2 ohms)

110W / 110W / NA (L/R/Sub) sub channel not 2 ohms stable

THD at 1W

0.1%

Frequency Response

20Hz-20kHz +/- 0.2dB

Input Sensitivity (Unbalanced)

switchable 0.2V or 0.775V

Input Sensitivity (Balanced)

switchable 0.2V or 0.775V

Output Connectors

3 Dual Banana Jacks

Auto Off Time

20min turn off time

AC Power Req

Switchable 115V/230V (50Hz/60Hz) 600W max

Width

19 in (482.60 mm)

Depth

10 in (254.00 mm)

Height

1.75 in (44.45 mm)

Rack Spaces

1U

Net Weight

11 lbs (4.99 kg)

Shipping Weight

12 lbs (5.44 kg)

Supplied Accessories

Remote control, 10ft IR receiver, 6ft RCA to mini cable, IEC power cable, Manual

Product Documents

Click photo for download image options

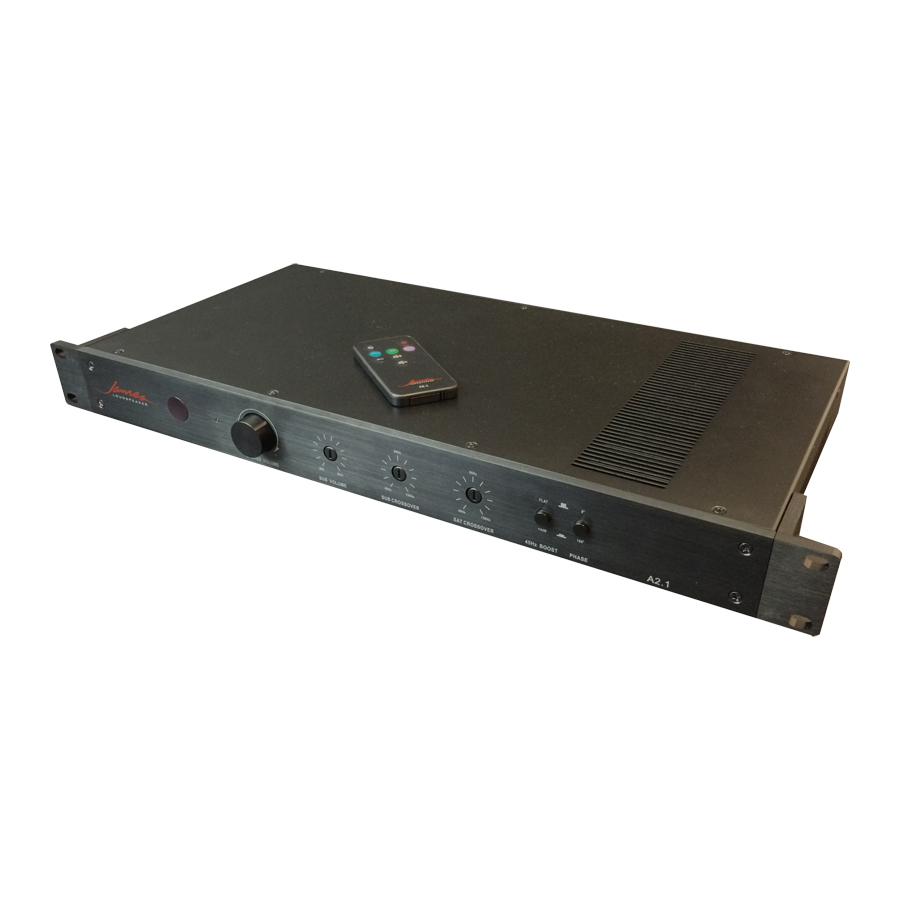

A2.1rev2 perspective

A2.1 (New) - Available downloads

Title: A2.1 Amplifier with remote

A2.1rev2 perspective
Size Resolution (Right-click: Save link as...)
171.55 KB 900x900 A2.1rev2_perspective.jpg

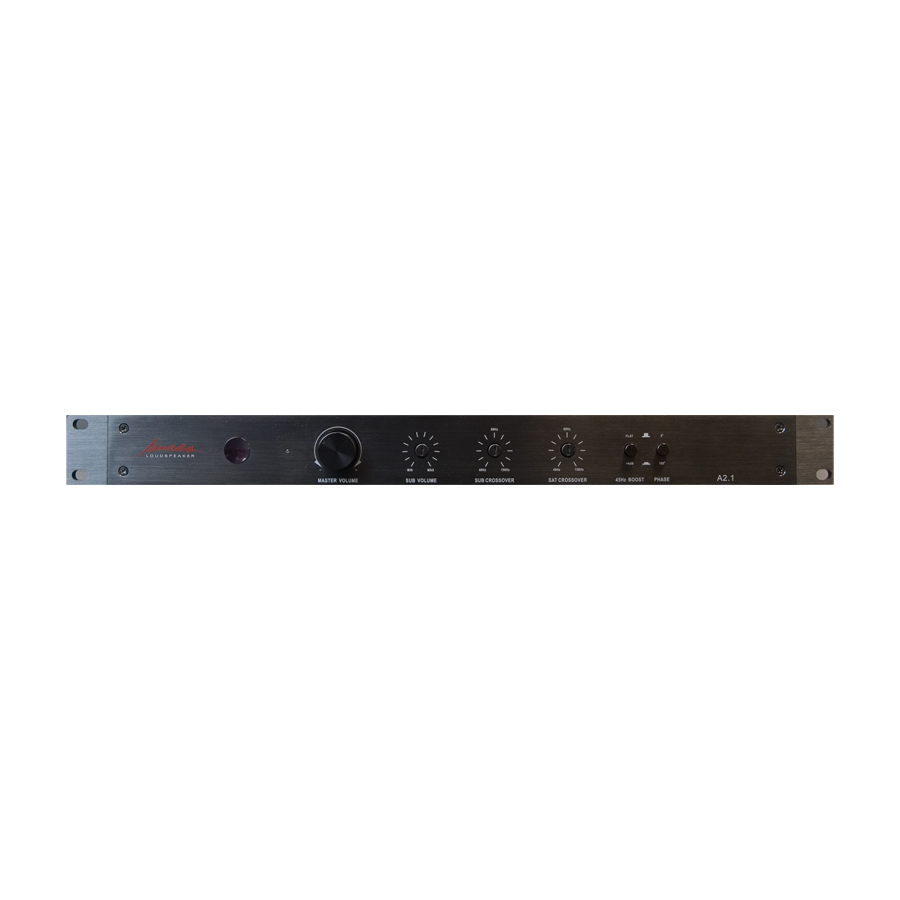

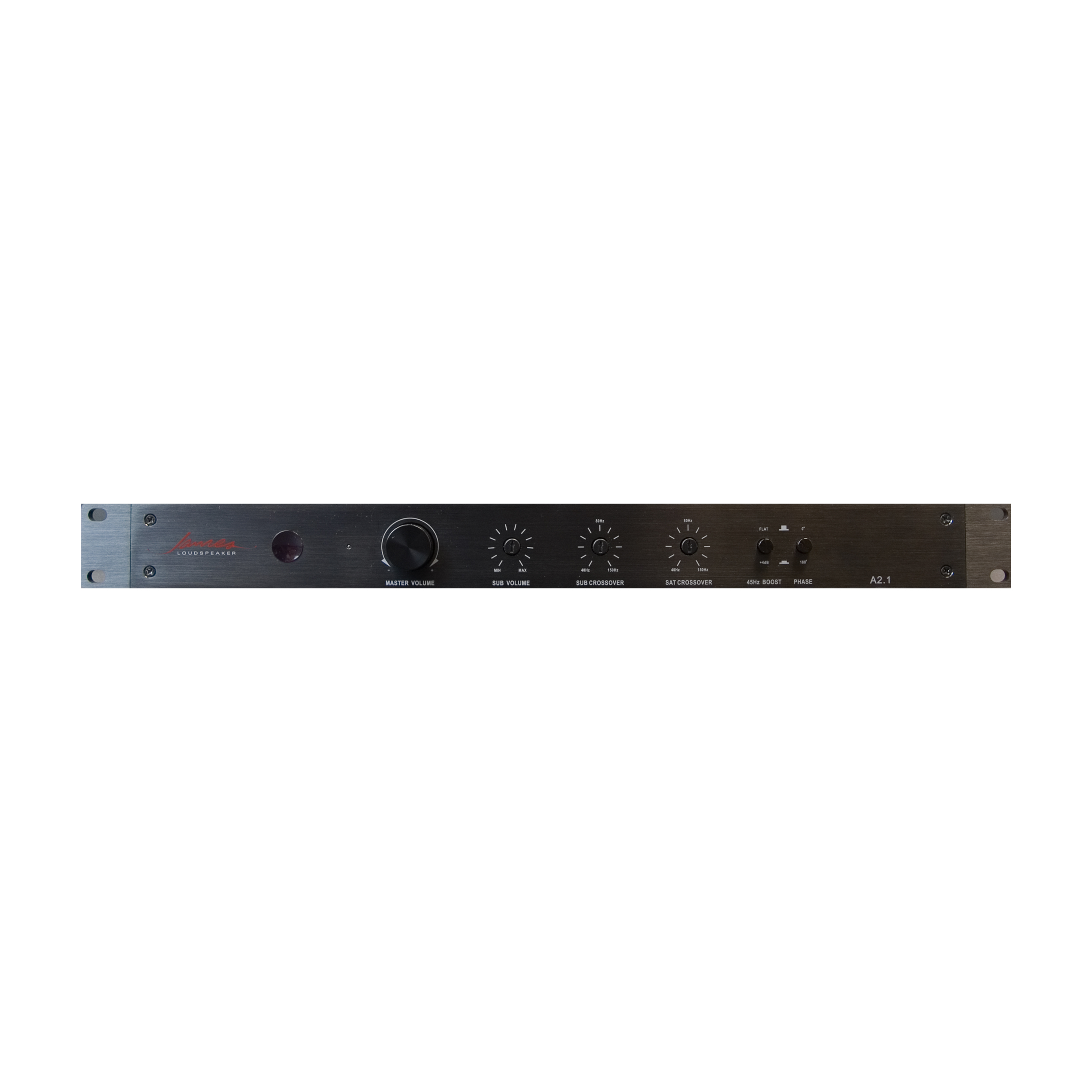

A2.1rev2 front 900

A2.1 (New) - Available downloads

Title: A2.1 Amplifier - front view

A2.1rev2 front 900
Size Resolution (Right-click: Save link as...)
105.89 KB 900x900 A2.1rev2_front_900.jpg
636.57 KB 2500x2500 A2.1rev2_front_hi-res.jpg
A2.1rev2 rear 900

A2.1 (New) - Available downloads

Title: A2.1 Amplifier - rear view

A2.1rev2 rear 900
Size Resolution (Right-click: Save link as...)
130.02 KB 900x900 A2.1rev2_rear_900.jpg
498.12 KB 2000x2000 A2.1rev2_rear_hi-res.jpg

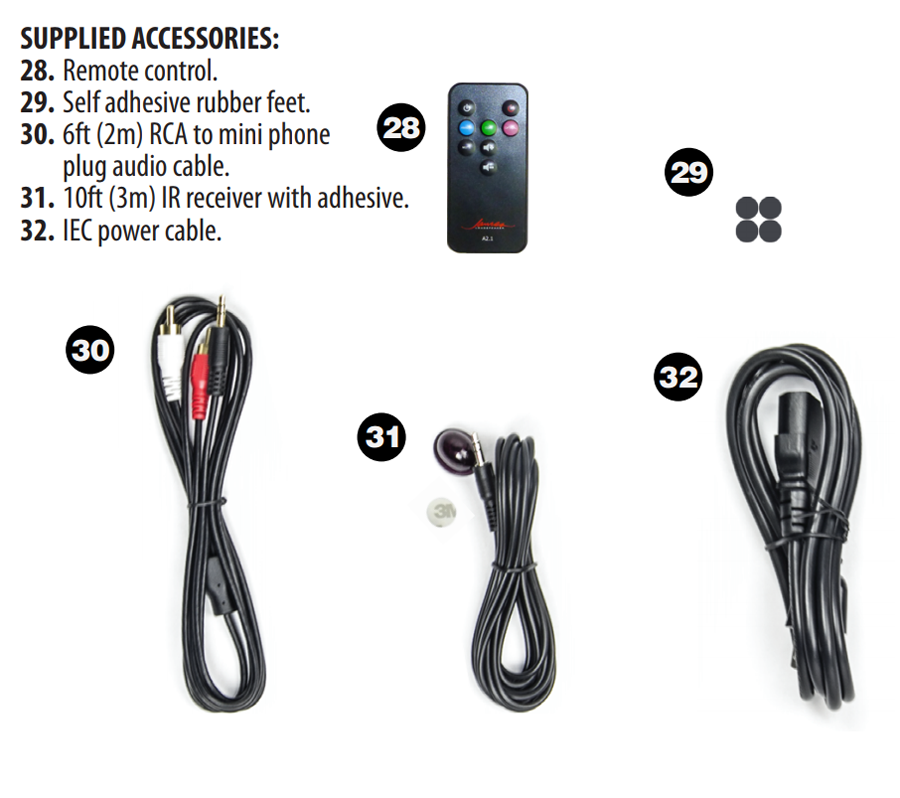

A2.1 accessories

A2.1 (New) - Available downloads

Title: Supplied Accessories

A2.1 accessories
Size Resolution (Right-click: Save link as...)
313.32 KB 900x798 A2.1_accessories.png
