FXCQ620R

6.5", 2-Way, Quad Tweeter Ceiling Speaker

This product has been discontinued
Technology header click
Tags:

The FXCQ620R in-ceiling loudspeaker from James provides performance that is second to none and features a sleek, modern appearance with a 3/8” (9.5mm) wide aluminum flange which is only 0.09” (2.3mm) thick, making the loudspeaker appear almost flush when mounted. The 6.5” woofer is James designed with an aluminum cone and santoprene surround to allow marine use while maintaining the highest quality sound. A James first, the Quad-Tweeter Array, features 4 aluminum 0.75” (19 mm) dome tweeters in a 22.5° offset array for wide dispersion, high power handling, and low distortion promising to deliver audiophile-quality where it counts. The enclosure is constructed with aircraft grade 5052 aluminum and includes a round white paintable aluminum grilles. The FXCQ620R has an impressive 92dB sensitivity with bass down to below 65Hz. A multi-element network blends the highs and lows into a smooth and wide response.

For marine applications, order the marine version, FXCQ620RM. A square version is available as the FXCQ620S.  70V options are available - for more information, contact a James dealer, representative or the James office.

Specifications
Frequency Response

68Hz-24kHz +/-3dB

Nominal Impedance

8 ohms

Sensitivity

92dB 2.83V/1m

Recommended Power Range

50 - 150W

Woofer

(1) 6.5" (165mm) Aluminum

Tweeter

(1) 0.75” (19mm) Aluminum Quad Tweeter

Enclosure

Aircraft Marine Grade Aluminum

Finishes

White Paintable Grille

Cutout

∅8.5" (215.90 mm) / 8.5" x 8.5"

Width

9.15 in (232.41 mm)

Depth

5.86 in (148.84 mm)

Height

9.15 in (232.41 mm)

Preconstruction Board (PCB)

FXC620R-PB

Product Documents

Related Documents

Click photo for download image options

Fxcq620 2

FXCQ620R - Available downloads

Title: FXCQ620 Round In-Ceiling Speaker

Fxcq620 2
Size Resolution (Right-click: Save link as...)
94.42 KB 900x900 FXCQ620-2.jpg

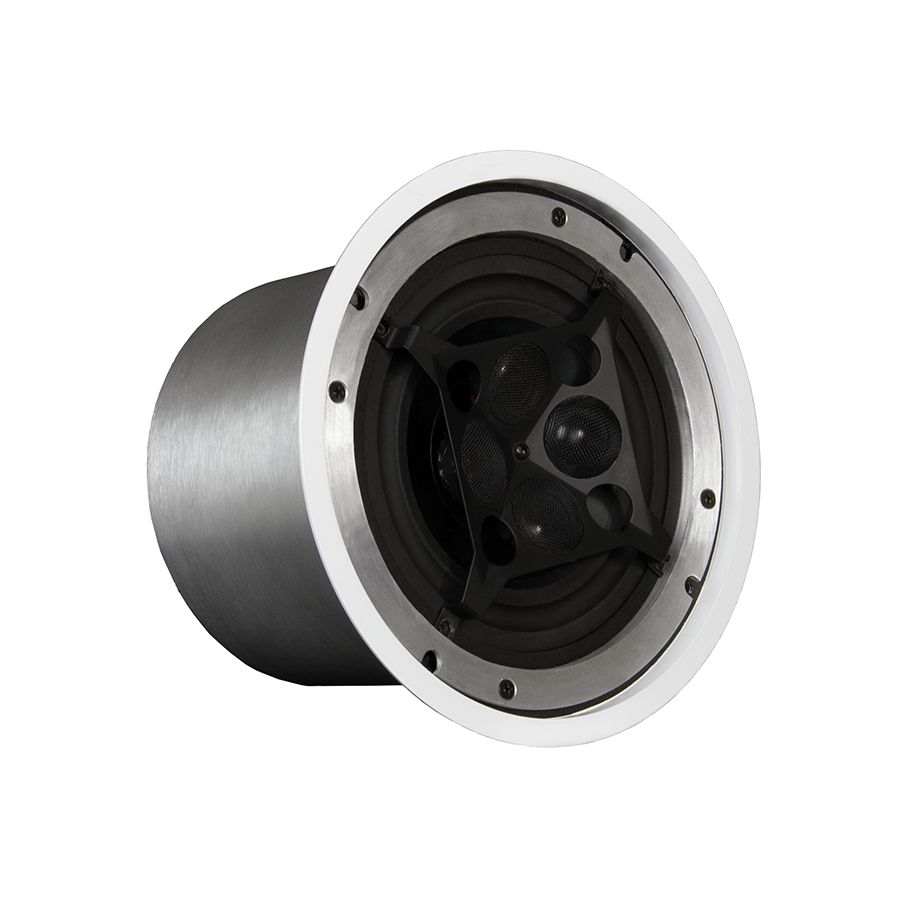

Fxcq620 3 front no grille

FXCQ620R - Available downloads

Title: FXCQ820R_Side

Fxcq620 3 front no grille
Size Resolution (Right-click: Save link as...)
49.41 KB 900x900 FXCQ620-3_Front_no_grille.jpg
9.85 MB 2400x2400 FXCQ620R_Front_no_grille.png

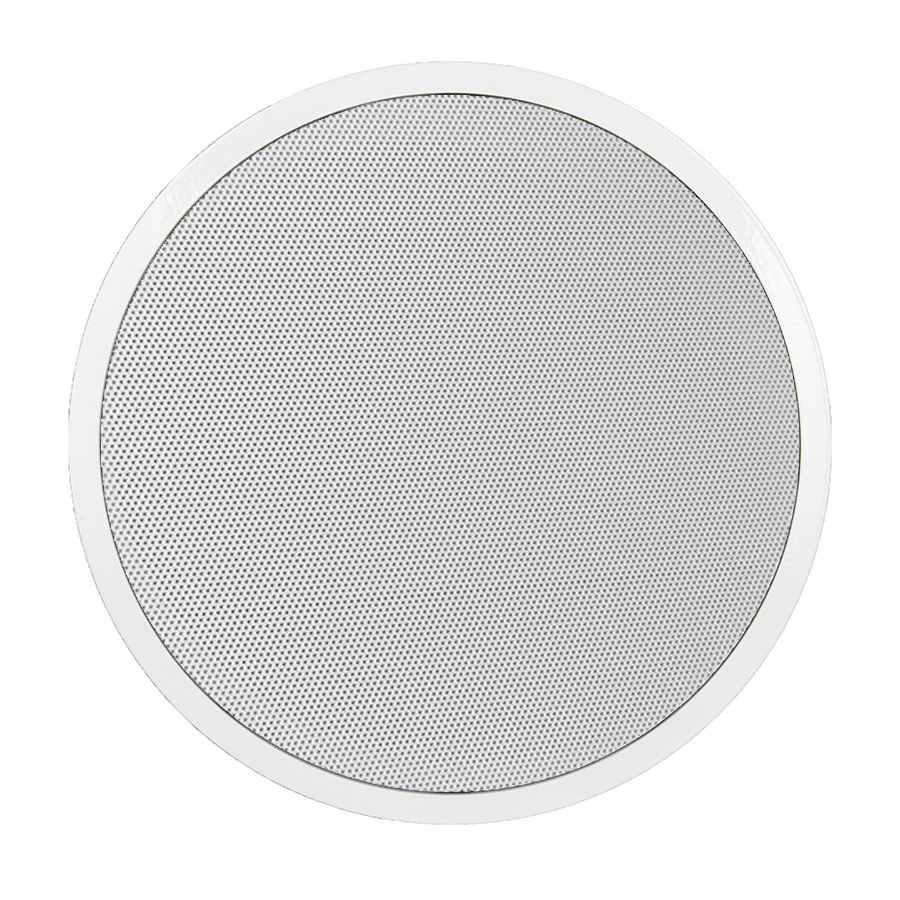

Fxc front web

FXCQ620R - Available downloads

Title: FXCQ620 Round In-Ceiling Speaker

Fxc front web
Size Resolution (Right-click: Save link as...)
165.04 KB 900x900 FXC_Front_Web.jpg
10.74 MB 2400x2400 FXCQ620R.png
6.63 MB 2400x2400 FXCQ620R_Front.png
5.42 MB 2400x2400 FXCQ620R_Front_nogrille.png
2.95 MB 2400x2400 FXCQ620R_Side.png
11.67 MB 2400x2400 FXCQ620R_Rear_tilt.png
11.75 MB 2400x2400 FXCQ620R_Rear.png

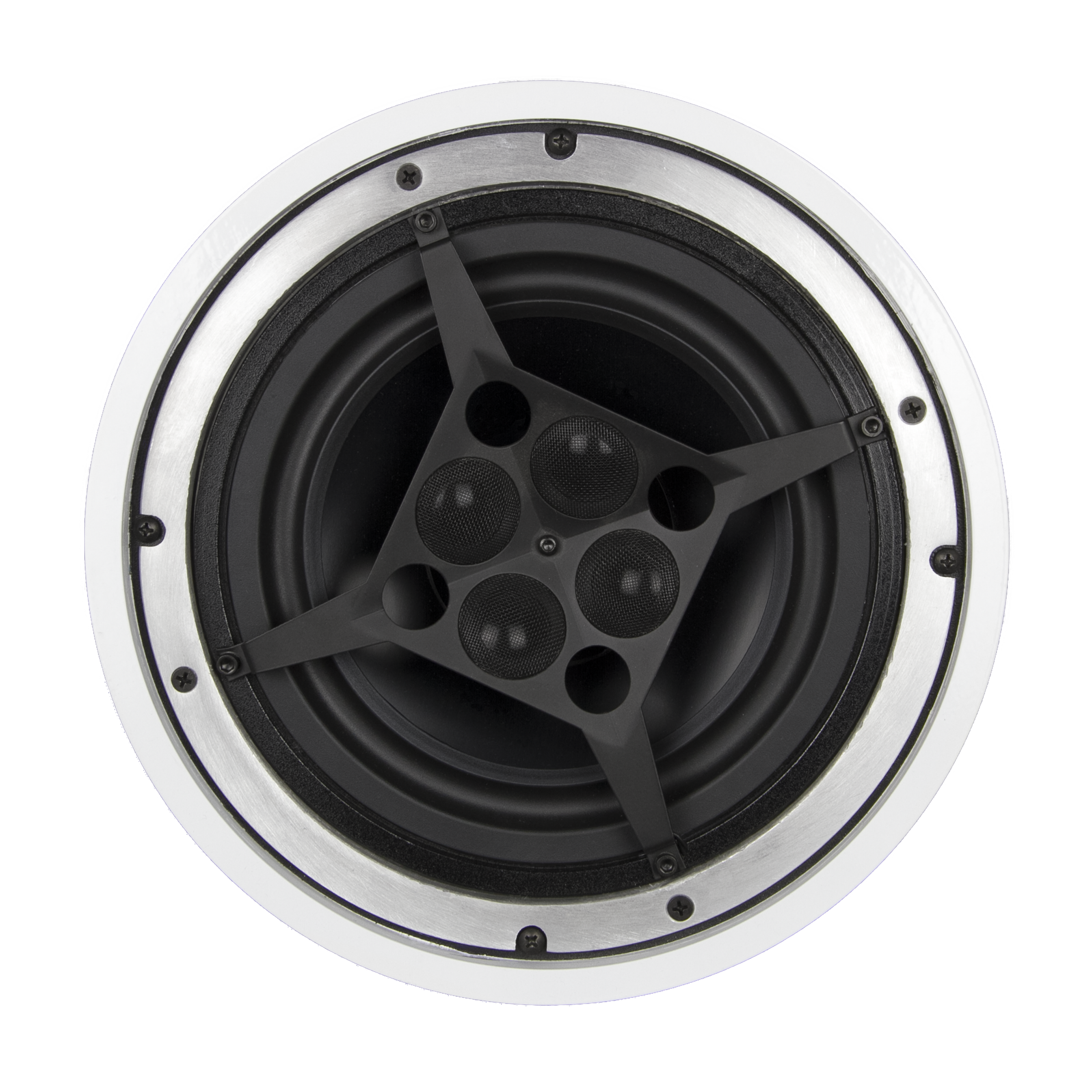

Fxcq620r front nogrille

FXCQ620R - Available downloads

Title: FXCQ620 Round In-Ceiling Speaker

Fxcq620r front nogrille
Size Resolution (Right-click: Save link as...)
83.15 KB 900x900 FXCQ620R_Front_nogrille.jpg

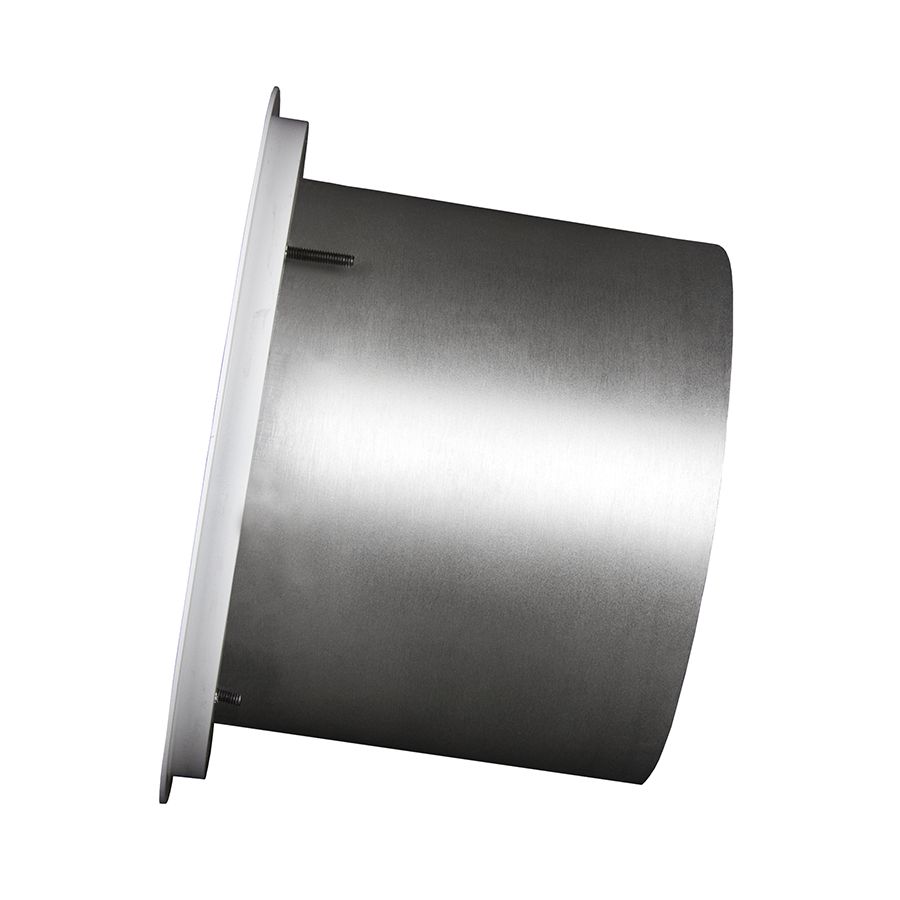

Fxcq620r side

FXCQ620R - Available downloads

Title: FXCQ620 Round In-Ceiling Speaker

Fxcq620r side
Size Resolution (Right-click: Save link as...)
45.69 KB 900x900 FXCQ620R_Side.jpg

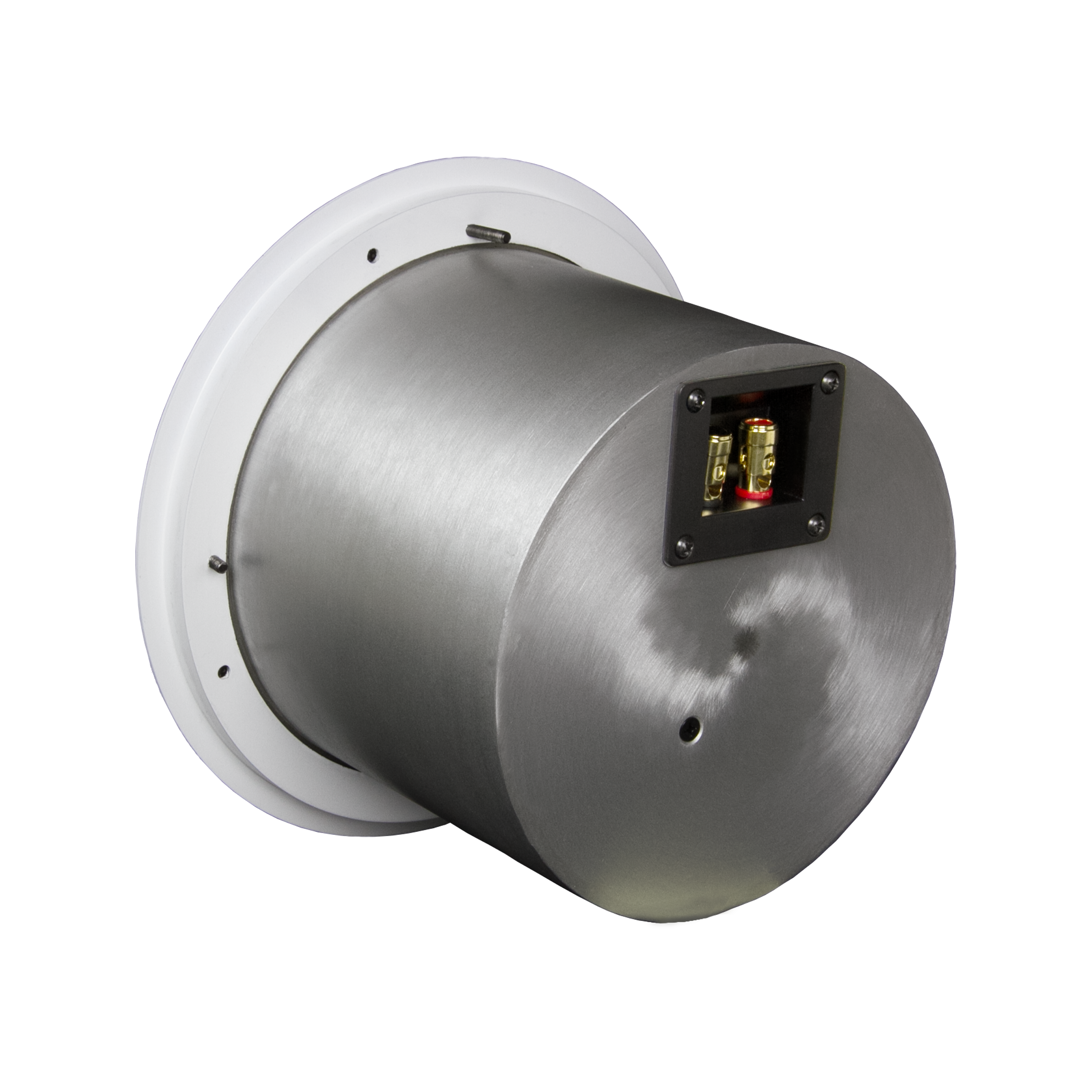

Fxcq620 4 rear tilt

FXCQ620R - Available downloads

Title: FXCQ620 Round In-Ceiling Speaker

Fxcq620 4 rear tilt
Size Resolution (Right-click: Save link as...)
50.16 KB 900x900 FXCQ620-4_Rear_tilt.jpg

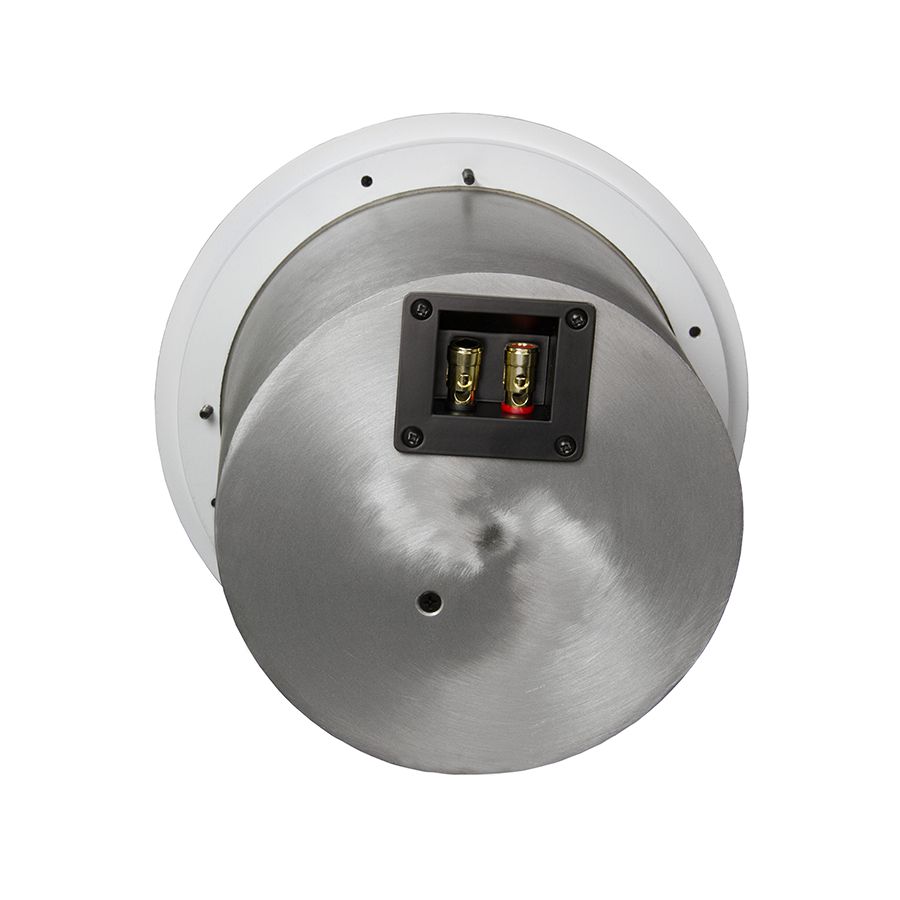

Fxcq620 2 rear
