FXA550S

5 1/4”, 3-Way, Ceiling/Surround Speaker

Tags:

James Loudspeaker is dedicated to providing the optimal performance solution for any application. The FXA series introduces a new design concept to the James Loudspeaker lineup by offering a ceiling/in-wall solution for use in applications where coverage is a challenge. The FXA550S angled baffle loudspeaker was developed to provide high performance at an off-axis seating position while ensuring reduced reflections from the any adjacent boundary.  The FXA550S is a full 3-way design in a FX style edge detail appearing virtually flush when installed.

The FXA550S makes an outstanding ceiling speaker for both L/C/R and surround applications as well as a great in-wall surround speaker, allowing downward coverage to adhere to many 3D immersive specifications such as Atmos, Auro3D and DTS:X.  The FXA series also provides an ideal solution for additional rooms where speakers must be located off of the main listening area.

A beryllium tweeter provides the ultimate in high fidelity performance and as well as timbre matches James BE Series models.  Along with the BE tweeter, dual 3” high excursions mid-range transducers are mounted on the main baffle which is angled at 30 degrees towards the listening area.  Dual 5.25” woofers are angled on the adjacent baffle at 20 degrees to provide full bass response.

All woofers are designed with aluminum cones, santoprene surrounds and die cast baskets to be outdoor/marine ready. All enclosures are constructed with aircraft/marine 5052 aluminum and include aluminum white paintable grilles.

All units are assembled and tested in Minden, Nevada, and guaranteed to give you that signature James sound. For outdoor and marine applications order the FXA550SM model.  70V options and custom colors are available, contact James for information.

Specifications
Frequency Response

65Hz-40kHz ±3dB

Nominal Impedance

4 ohms

Sensitivity

89dB @ 2.83V/1m

Crossover

3-Way

Recommended Power Range

50 - 250W

Woofer

(2) 5 1/4” (32 mm) Aluminum

Mid

(2) 3” (76 mm) High Excursion

Tweeter

(1) 1” (25 mm) Beryllium

Enclosure

Aircraft Marine Grade Aluminum

Finishes

White Paintable Grille

Cutout

12.125" x 12.125" (308mm x 308mm)

Width

12.75 in (323.85 mm)

Depth

5.88 in (149.35 mm)

Height

12.75 in (323.85 mm)

Preconstruction Board (PCB)

FXA550S-PB

Product Documents

Related Documents

Click photo for download image options

Fxa550s iso web

FXA550S - Available downloads

Title: FXA550S ISO

Fxa550s iso web
Size Resolution (Right-click: Save link as...)
254.10 KB 900x900 FXA550S_ISO_Web.jpg

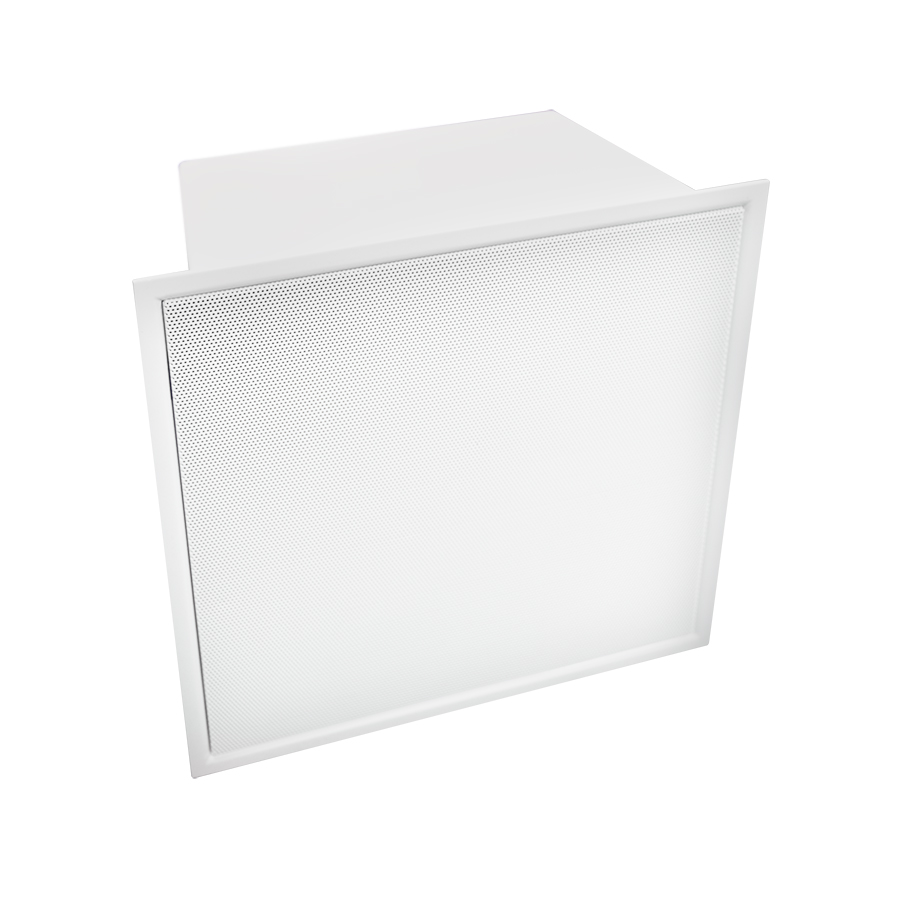

Fxa iso web

FXA550S - Available downloads

Title: FXA550S

Fxa iso web
Size Resolution (Right-click: Save link as...)
217.62 KB 900x900 FXA_ISO_web.jpg
25.84 MB 2400x2400 FXA_ISO_HQ_web.tif

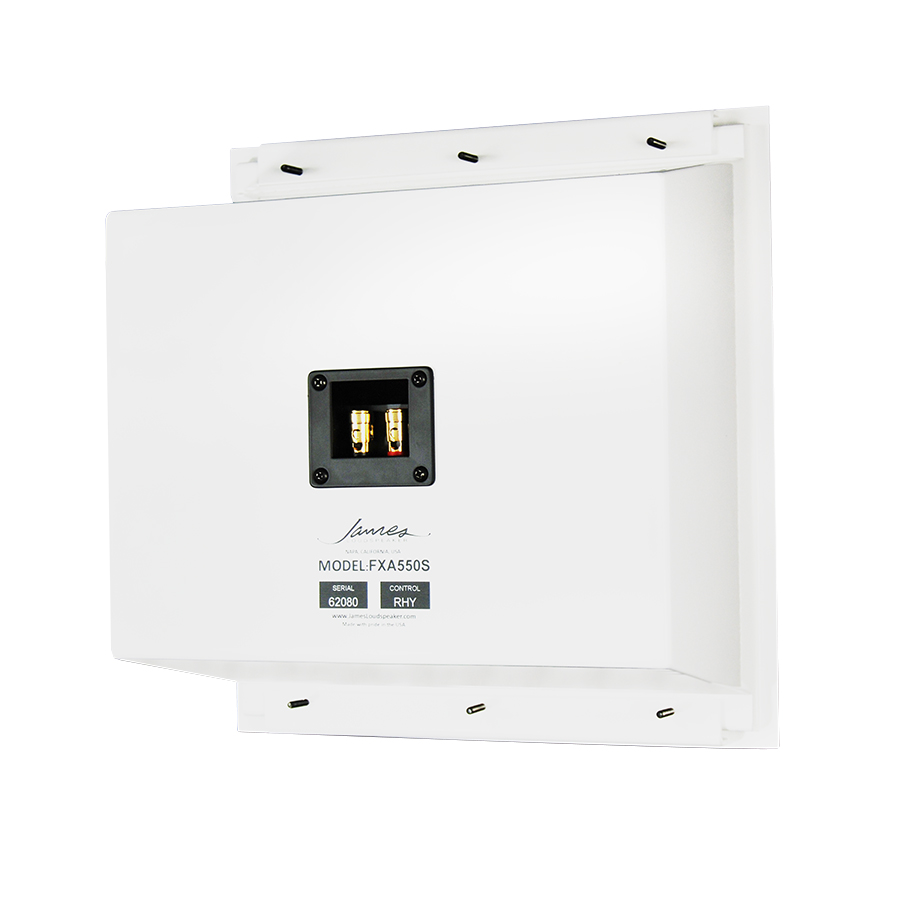

Fxa rear web
