One of many available options in the EMB II Subwoofer series features a very contemporary, non-obtrusive cabinet design.  The down-firing design provides 4 finished sides for flexibility in room placement. Built from solid aircraft grade aluminum and expertly finished to your color preference, the craftsmanship of this compact subwoofer exudes luxury and performance.

Internally, the EMB8-DF utilizes our famous “Energy Multiplying Bandpass” technology to obtain high output and low distortion from a very compact enclosure. Inside, the cabinet features a patented 6.5” woofer and a pneumatically phase coupled 8” passive radiator, both with aluminum cones and rubber surrounds. The EMB8-DF subwoofer has been tuned to perform all the way down to an impressive 28 Hz!  Because it is a high power handling passive subwoofer, we recommend pairing it with our M1000 class D amplifier which provides 1000 watts of clean power and features a full DSP digital processor. The 8-ohm impedance allows a total of two EMB8-DF subwoofers to be powered with a single M1000 amplifier.

For outdoor/marine applications, order the EMB8-DF-M.  70 Volt outdoor/marine version is also available as a EMB8-DF-M-70.

Product Documents

• CAD drawings

  • EMB8-DF CAD Drawing (PDF)
  • EMB8-DF CAD Drawing (DWG)

• Datasheets/Cutsheets

  • EMB8-DF Datasheet

Related Documents

• Brochures

  • Full Line Brochure
  • Hidden Subwoofer Brochure
  • Interior Product Brochure

• Color Samples/Finishes

  • Standard Powder Coat Finishes

Click photo for download image options

EMB8-DF - Available downloads

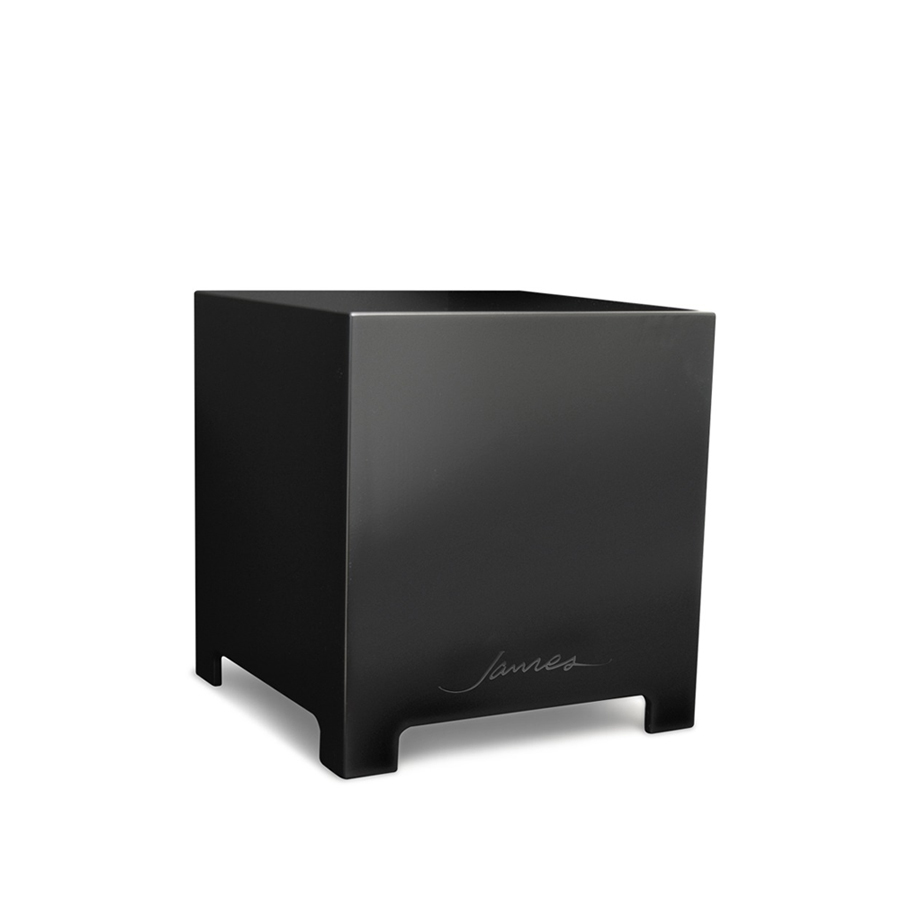

Title: EMB8DF Down-Firing Subwoofer

Size	Resolution	(Right-click: Save link as...)
138.49 KB	900x900	EMB8DF_Web_rgb.jpg
