8", 2-Way, Ceiling Speaker w/ Magnetic Grille
The QXC820 in-ceiling loudspeaker features a sleek modern appearance with a borderless aluminum grille that protrudes less than 3/16” (5mm) from the wall. Our quad tweeter array, incorporating four 0.75" (19mm) aluminum dome tweeters in a 22.5° offset array for wide dispersion, high power handling and low distortion promises to deliver audiophile-quality where it counts. Combined with a 8" (203mm) high output aluminum woofer, the QXC820 has an impressive 93dB sensitivity with bass down to below 60Hz. A multi-element network blends the highs and lows into a smooth and wide response. The sealed cabinet design features all aircraft aluminum construction for strength, sonic performance and durability.
Suited for outdoor and marine environments when upgraded to our uniquely treated James Loudspeaker marine grade (a 15% upcharge).Complete with a perforated aluminum grille in either round or square design, this sub can easily be integrated into any environment, offering a subdued visual effect, designed to be as unobtrusive as possible.
Choose between a square or round grill when ordering this product.
Standard Models QXC820R (round), QXC820S (square)
Marine Grade Models QCS820R-M or QXC820S-M
60Hz-24kHz +/-3dB
8 ohms
93dB 2.83V/1m
50 - 250W
(1) 8" (203mm) Aluminum
(4) 0.75" (19mm) Aluminum
Aircraft Marine Grade Aluminum
White Paintable Grille
∅10.125" (257.18mm)
10.84 in (275.34 mm)
6 in (152.40 mm)
10.84 in (275.34 mm)
10.84 in (275.34 mm)
9 lbs (4.08 kg)
10 lbs (4.54 kg)
QXC820PB
QXC820R-PBF/QXC820S-PBF

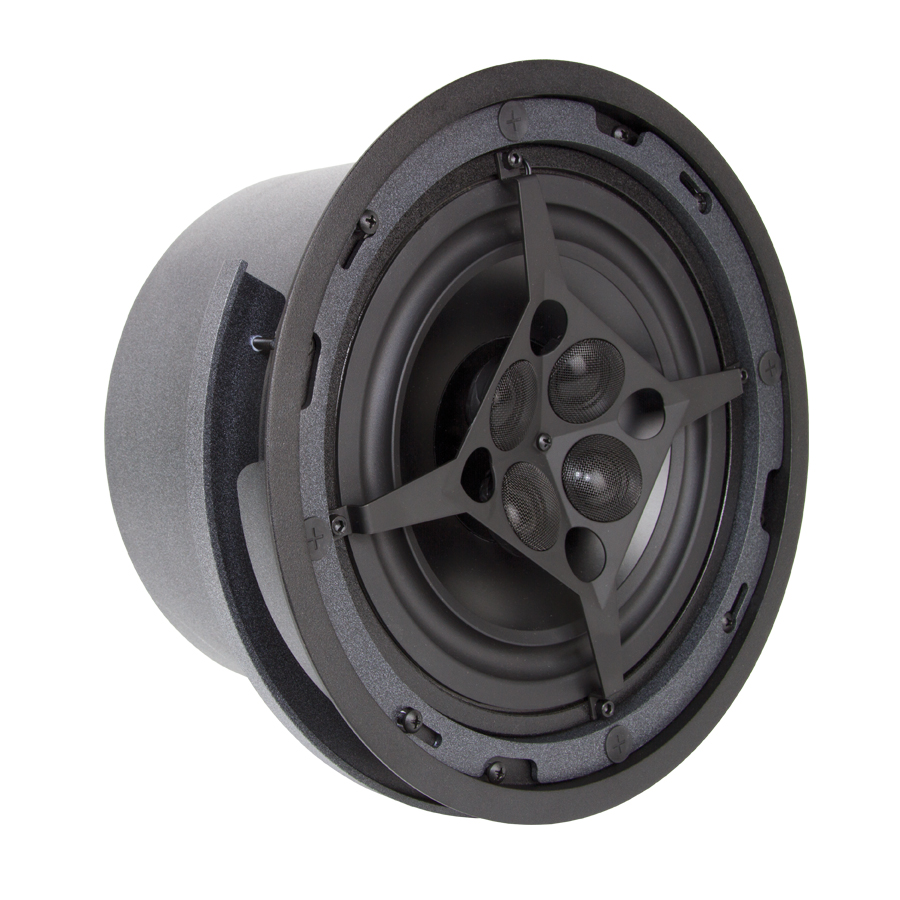

Title: QXC820R/S - Front
Size | Resolution | (Right-click: Save link as...) |
---|---|---|
404.54 KB | 900x900 | QXC820RS_ISO.jpg |
Title: Round Perforated Grille
Size | Resolution | (Right-click: Save link as...) |
---|---|---|
240.95 KB | 900x900 | Grille_Round_Web.jpg |
Title: QXC820R/S - Grille - Rear
Size | Resolution | (Right-click: Save link as...) |
---|---|---|
464.01 KB | 900x900 | QXC820R_Grille_Rear.jpg |
Title: QXC Square Front
Size | Resolution | (Right-click: Save link as...) |
---|---|---|
251.83 KB | 900x900 | Grille_Square_Front_Web.jpg |
Title: QXC Square Rear
Size | Resolution | (Right-click: Save link as...) |
---|---|---|
198.13 KB | 900x900 | Grille_Square_Rear_Web.jpg |
Title: QXC Demo Installation
Size | Resolution | (Right-click: Save link as...) |
---|---|---|
129.33 KB | 900x900 | QXC_Demo_Front_Web.jpg |
Title: QXC Push Terminal
Size | Resolution | (Right-click: Save link as...) |
---|---|---|
231.28 KB | 900x900 | qxc-push-terminals.jpg |
Title: QXC Water Gland Terminal
Size | Resolution | (Right-click: Save link as...) |
---|---|---|
230.56 KB | 900x900 | qxc-water-gland-terminal.jpg |
Title: Flush mount preconstruction board
Size | Resolution | (Right-click: Save link as...) |
---|---|---|
170.17 KB | 900x900 | qxc-flush-mount-brackets-installed-1-900.jpg |
Title: Flush mount preconstruction board
Size | Resolution | (Right-click: Save link as...) |
---|---|---|
79.38 KB | 900x900 | qxc-flush-mount-brackets-installed-2-900.jpg |
Title: Flush mount preconstruction board
Size | Resolution | (Right-click: Save link as...) |
---|---|---|
167.77 KB | 900x900 | qxc-flush-mount-brkt-installed-900.jpg |
Title: Flush mount preconstruction board
Size | Resolution | (Right-click: Save link as...) |
---|---|---|
111.32 KB | 900x900 | qxc-flush-mount-brkt-installed-4-900.jpg |
Title: Flushmount preconstruction board
Size | Resolution | (Right-click: Save link as...) |
---|---|---|
110.16 KB | 900x900 | qxc-flush-mount-brkt-installed-5-900.jpg |
QXC installation video for the 2017 version f the QXC. The new version has half moon clamps and a new marine rated magnetic grille.
A tutorial on how to properly install James Loudspeaker's QX style grilles. This is a required step for those looking to custom paint their grilles to match their installation area.
