The FXCQ820S in-ceiling loudspeaker from James provides performance that is second to none and features a sleek, modern appearance with a 3/8” (9.5mm) wide aluminum flange which is only 0.09” (2.3mm) thick, making the loudspeaker appear almost flush when mounted. The 8” woofer is James designed with an aluminum cones and santoprene surround to allow marine use while maintaining the highest quality sound. A James first, the Quad-Tweeter Array, features 4 aluminum 0.75” (19 mm) dome tweeters in a 22.5° offset array for wide dispersion, high power handling, and low distortion promising to deliver audiophile-quality where it counts. The enclosure is constructed with aircraft grade 5052 aluminum and includes a round white paintable aluminum grille. The FXCQ820S has an impressive 93dB sensitivity with bass down to below 60Hz. A multi-element network blends the highs and lows into a smooth and wide response.

For marine applications, order the marine version, FXCQ820SM. A round version is available as the FXCQ820R. 70V options are available - for more information, contact a James dealer, representative or the James office.

Product Documents

• CAD drawings

  • FXCQ820S CAD Drawing (DWG)
  • FXCQ820S CAD Drawing (PDF)

• Datasheets/Cutsheets

  • FXCQ820S Datasheet

• Installation Guides and Info

  • FXC Series - Sheetrock Installation

• Manuals

  • Paintable Grille Instructions

Related Documents

• Brochures

  • Full Line Brochure

• Case Studies

  • Case Study - The MAW Gallery (CS1006)

Click photo for download image options

FXCQ820S - Available downloads

Title: FXCQ820S Front

Size	Resolution	(Right-click: Save link as...)

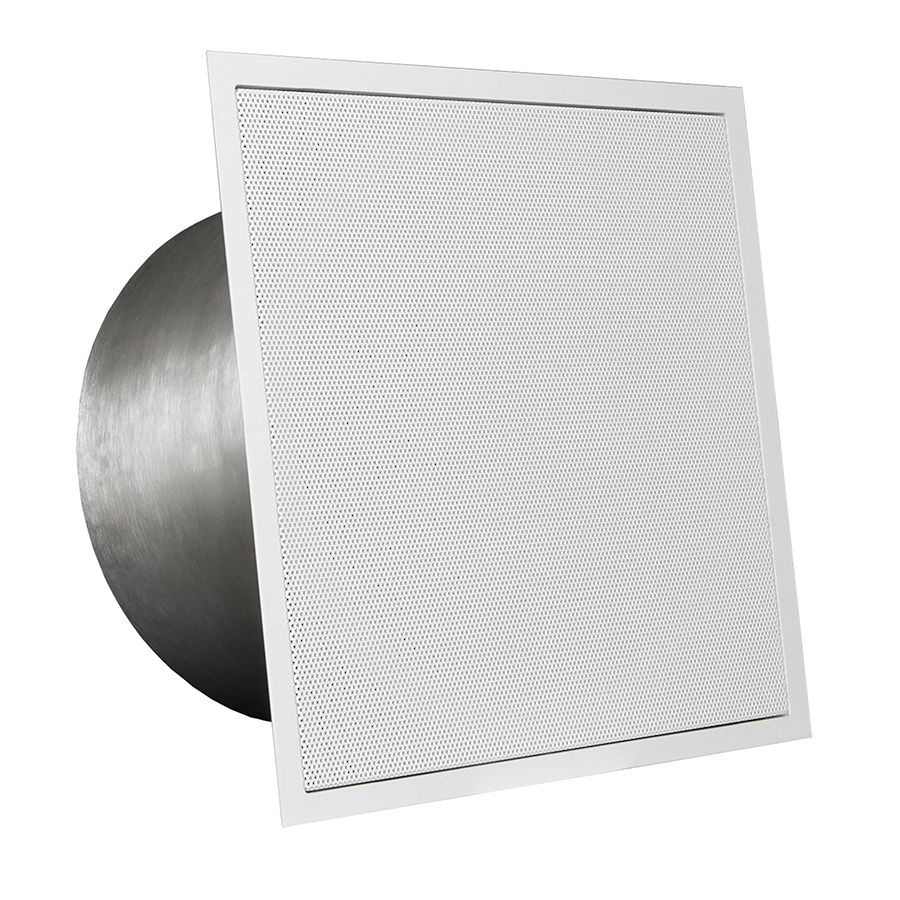

368.57 KB	900x900	FXCQ820S_ISO_Web.jpg

FXCQ820S - Available downloads

Title: FXCQ820S Square In-Ceiling Speaker

Size	Resolution	(Right-click: Save link as...)

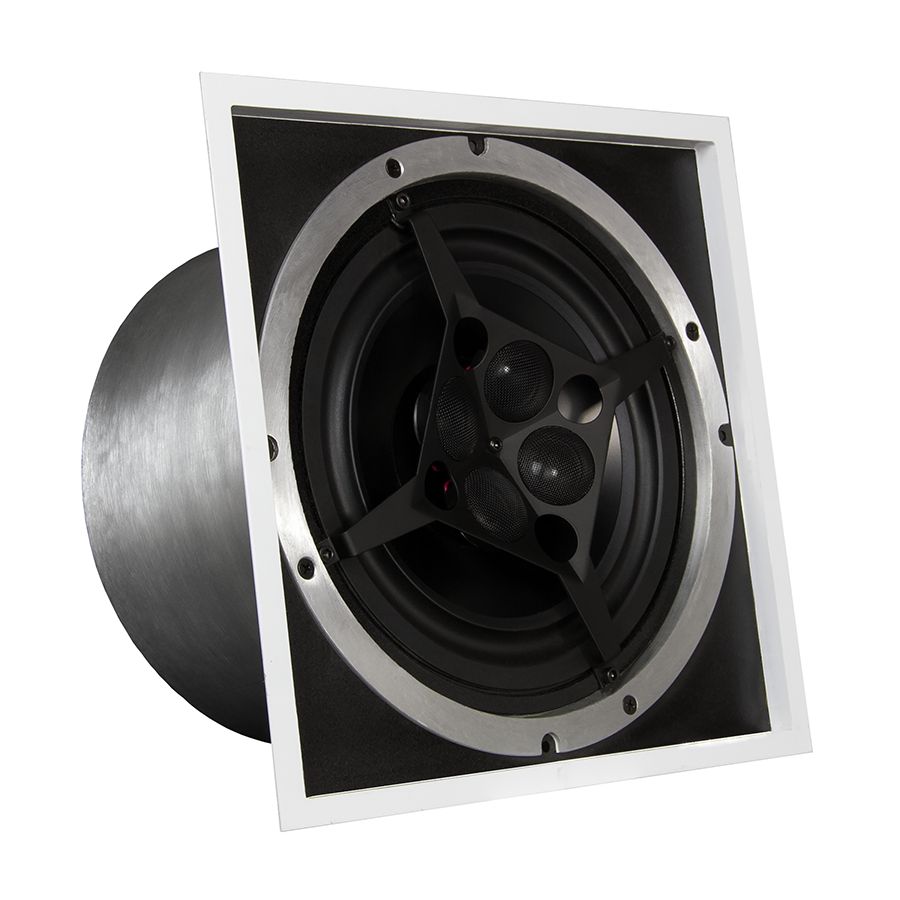

65.83 KB	900x900	FXCQ820.jpg

FXCQ820S - Available downloads

Title: FXCQ820S Square In-Ceiling Speaker

Size	Resolution	(Right-click: Save link as...)

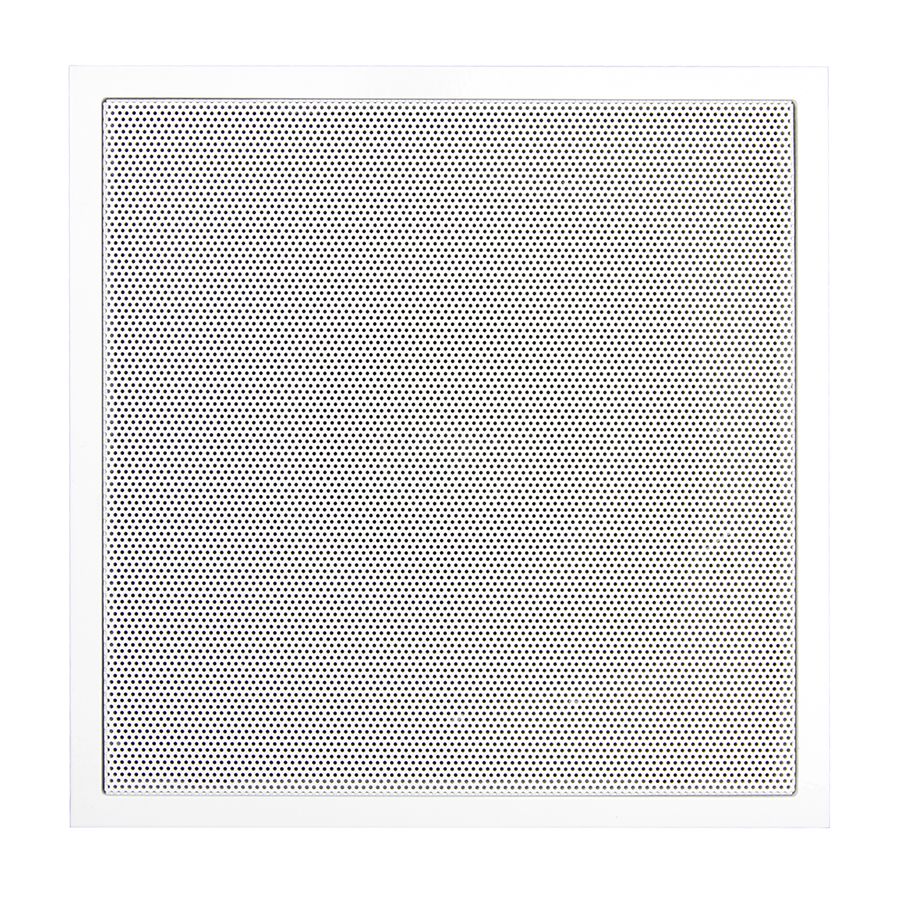

267.74 KB	900x900	FXCQ820S_Front_Grille.jpg

FXCQ820S - Available downloads

Title: FXCQ820S Square In-Ceiling Speaker

Size	Resolution	(Right-click: Save link as...)

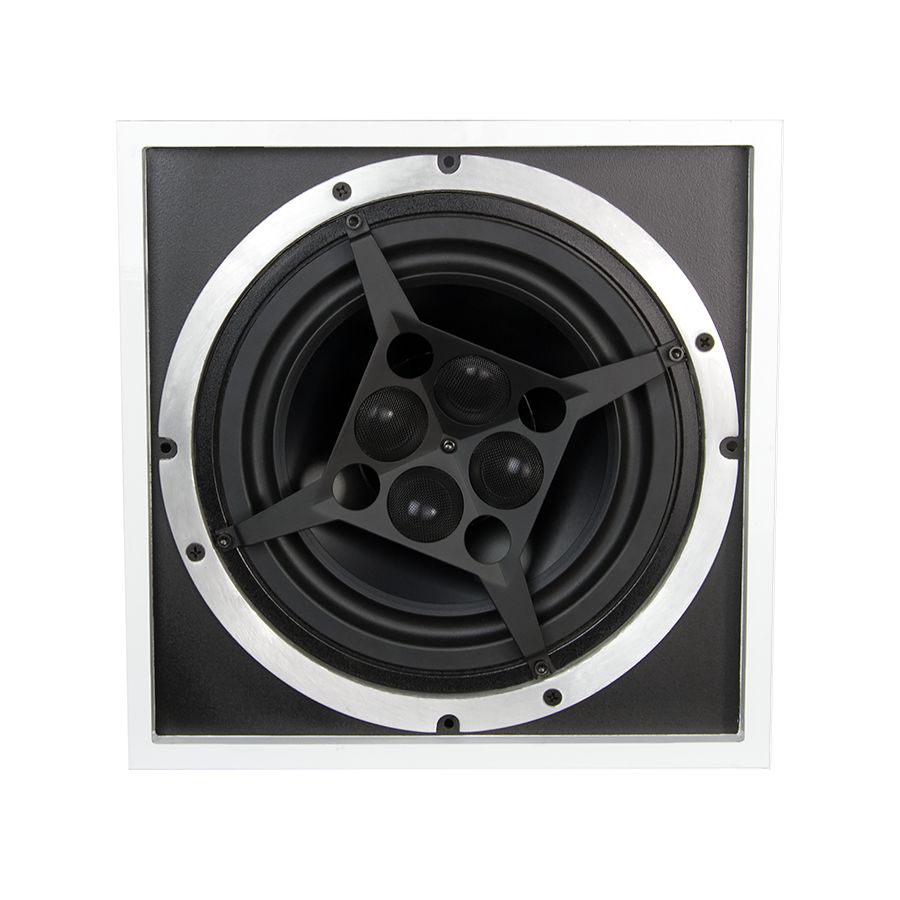

70.83 KB	900x900	FXCQ820_Front_wGrille.jpg

FXCQ820S - Available downloads

Title: FXCQ820S Square In-Ceiling Speaker

Size	Resolution	(Right-click: Save link as...)

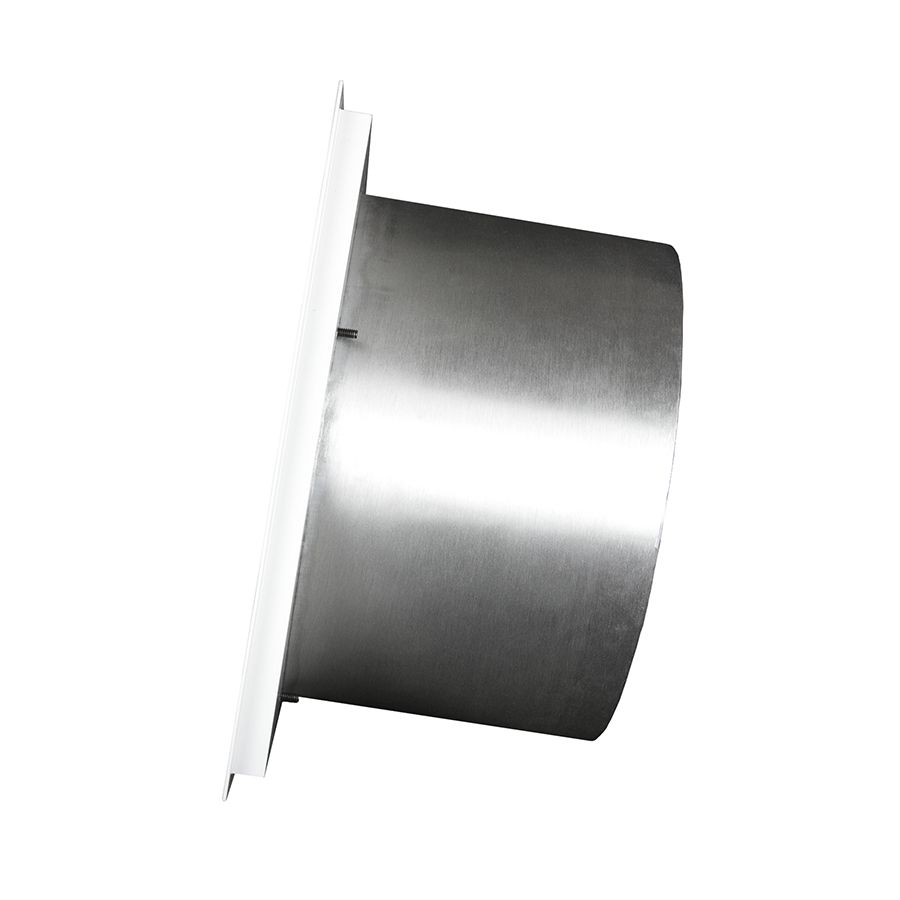

33.85 KB	900x900	FXCQ820_side.jpg

FXCQ820S - Available downloads

Title: FXCQ820S Square In-Ceiling Speaker

Size	Resolution	(Right-click: Save link as...)

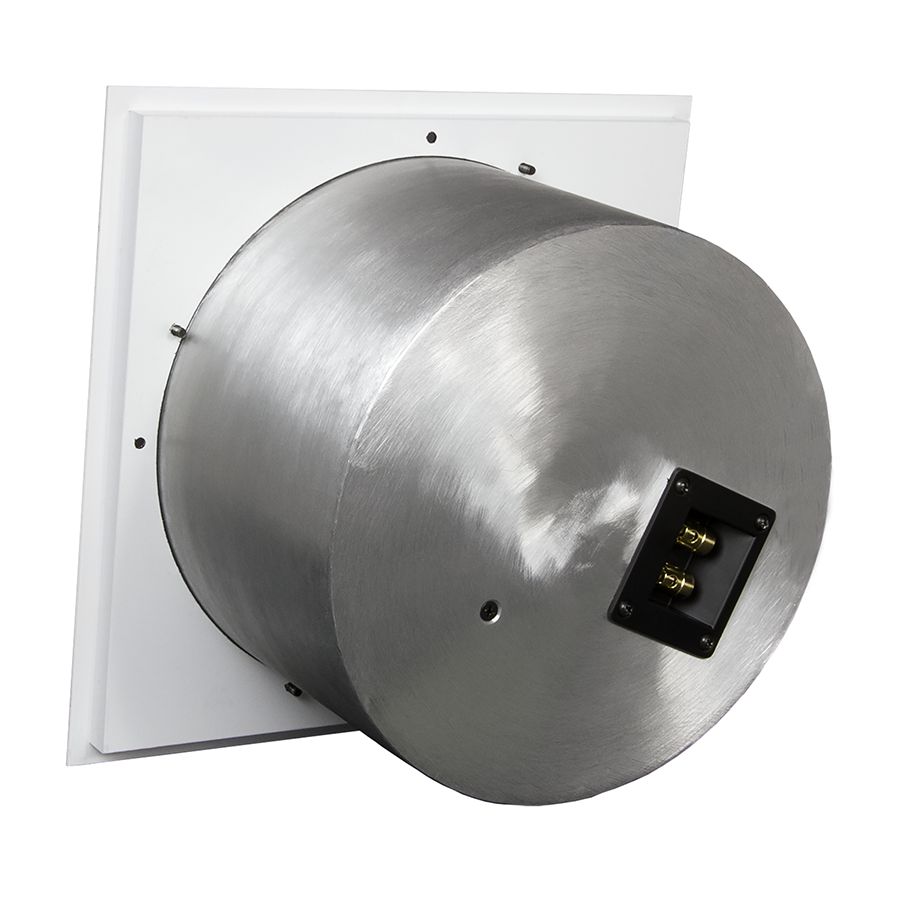

58.32 KB	900x900	FXCQ820-2_Back_tilt.jpg

FXCQ820S - Available downloads

Title: FXCQ820S Square In-Ceiling Speaker

Size	Resolution	(Right-click: Save link as...)

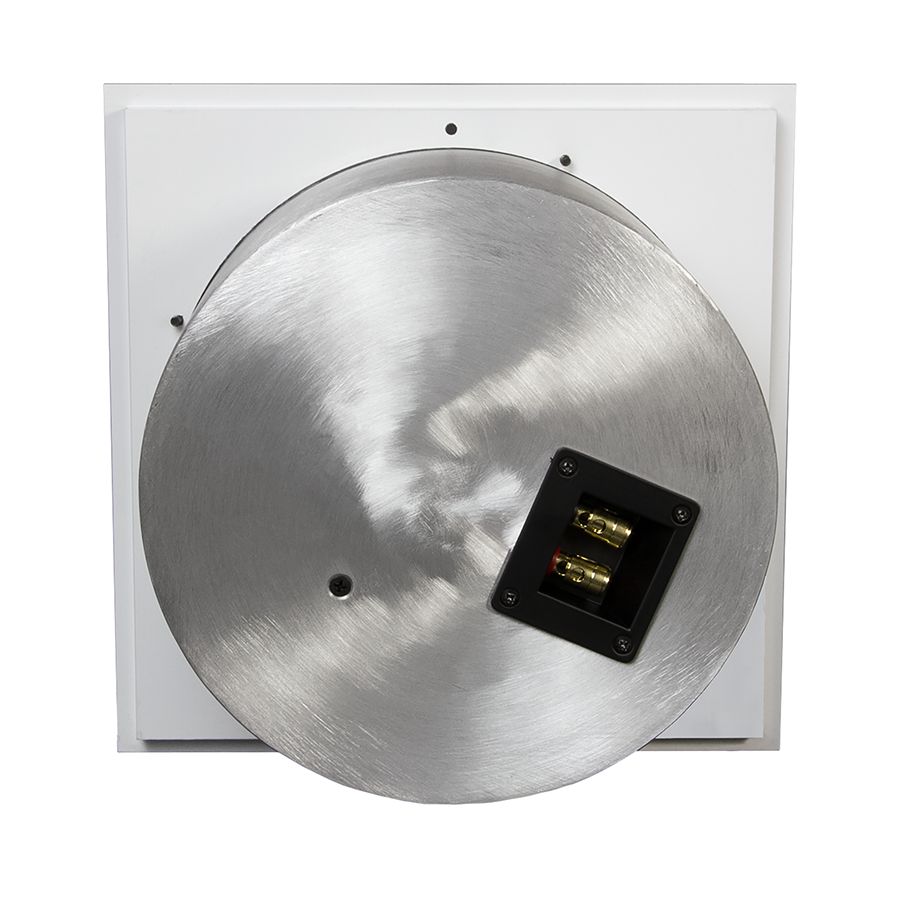

71.79 KB	900x900	FXCQ820-3_Rear.jpg
