C-82ST70

Custom Shallow Depth Subterranean subwoofer

Technology header click
Tags:

THIS PRODUCT HAS BEEN CUSTOM DESIGNED FOR A SPECIFIC CUSTOMER AND IS ONLY SHOWN FOR REFERENCE. WE ARE NOT ABLE TO ACCEPT ORDERS USING THE MODEL NUMBER SHOWN. PLEASE CONTACT JAMES TO DISCUSS YOUR APPLICATION AND WE WILL DESIGN A PRODUCT JUST FOR YOU!

We had a request to provide some high output subterranean subwoofers, but they could only be buried in 10 inches of soil.  This required the enclosure height being reduced to 8 inches – too small for the depth of a 10” or 12” woofer.  In order to get high output, we went with two 8 inch drivers which equal about an 11” woofer!  Also, a 200W, 70V toroidal transformer was used.  They sounded great!



We also designed a smaller, single woofer custom version, C-81ST70.  Ref number is 190115-CH1011.

Specifications
Width

16.5 in (419.10 mm)

Depth

21.5 in (546.10 mm)

Height

8 in (203.20 mm)

Reference Number

151027-K1X2

Product Documents

Related Documents

Click photo for download image options

C 82st 00

C-82ST70 - Available downloads

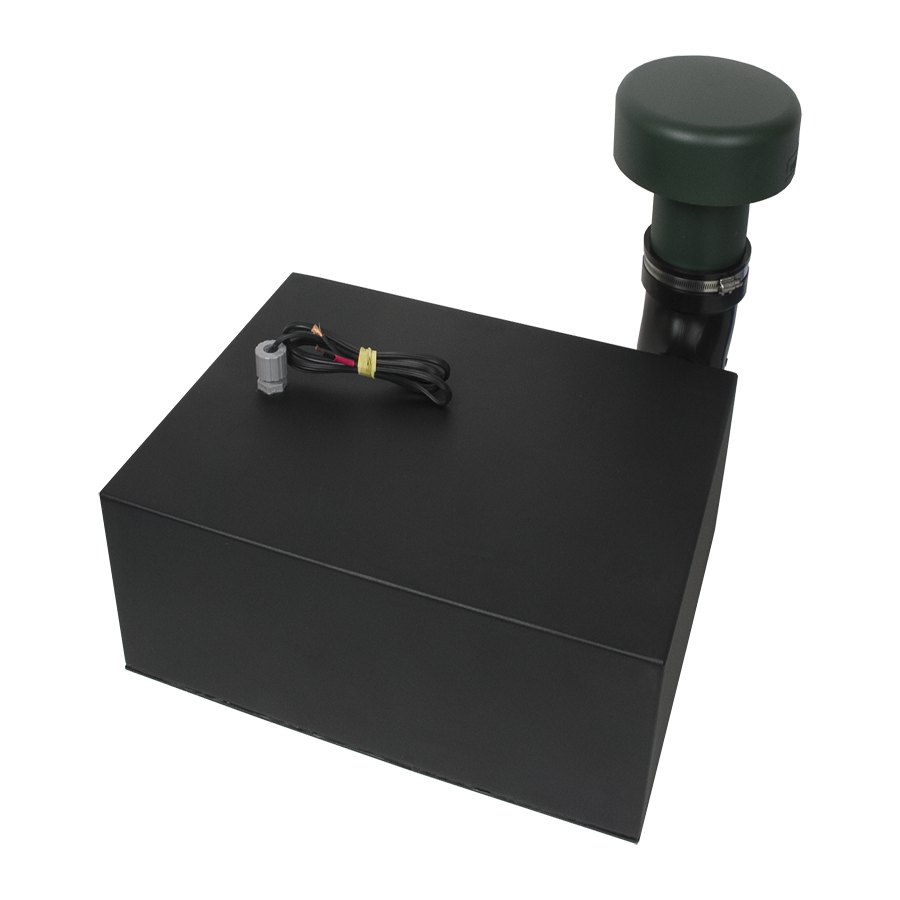

Title: Front View
