The FXCQ820R in-ceiling loudspeaker from James provides performance that is second to none and features a sleek, modern appearance with a 3/8” (9.5mm) wide aluminum flange which is only 0.09” (2.3mm) thick, making the loudspeaker appear almost flush when mounted. The 8” woofer is James designed with an aluminum cones and santoprene surround to allow marine use while maintaining the highest quality sound. A James first, the Quad-Tweeter Array, features 4 aluminum 0.75” (19 mm) dome tweeters in a 22.5° offset array for wide dispersion, high power handling, and low distortion promising to deliver audiophile-quality where it counts. The enclosure is constructed with aircraft grade 5052 aluminum and includes a round white paintable aluminum grille. The FXCQ820R has an impressive 93dB sensitivity with bass down to below 60Hz. A multi-element network blends the highs and lows into a smooth and wide response.

For marine applications, order the marine version, FXCQ820RM. A square version is available as the FXCQ820S. 70V options are available - for more information, contact a James dealer, representative or the James office.

Product Documents

• CAD drawings

  • FXCQ820 CAD Drawing (PDF)
  • FXCQ820 CAD Drawing (DWG)

• Datasheets/Cutsheets

  • FXCQ820R Datasheet

• Installation Guides and Info

  • FXC Series - Sheetrock Installation

• Manuals

  • Paintable Grille Instructions

Related Documents

• Brochures

  • Full Line Brochure

• Case Studies

  • Case Study - The MAW Gallery (CS1006)

Click photo for download image options

FXCQ820R - Available downloads

Title: FXCQ820 Round In-Ceiling Speaker

Size	Resolution	(Right-click: Save link as...)

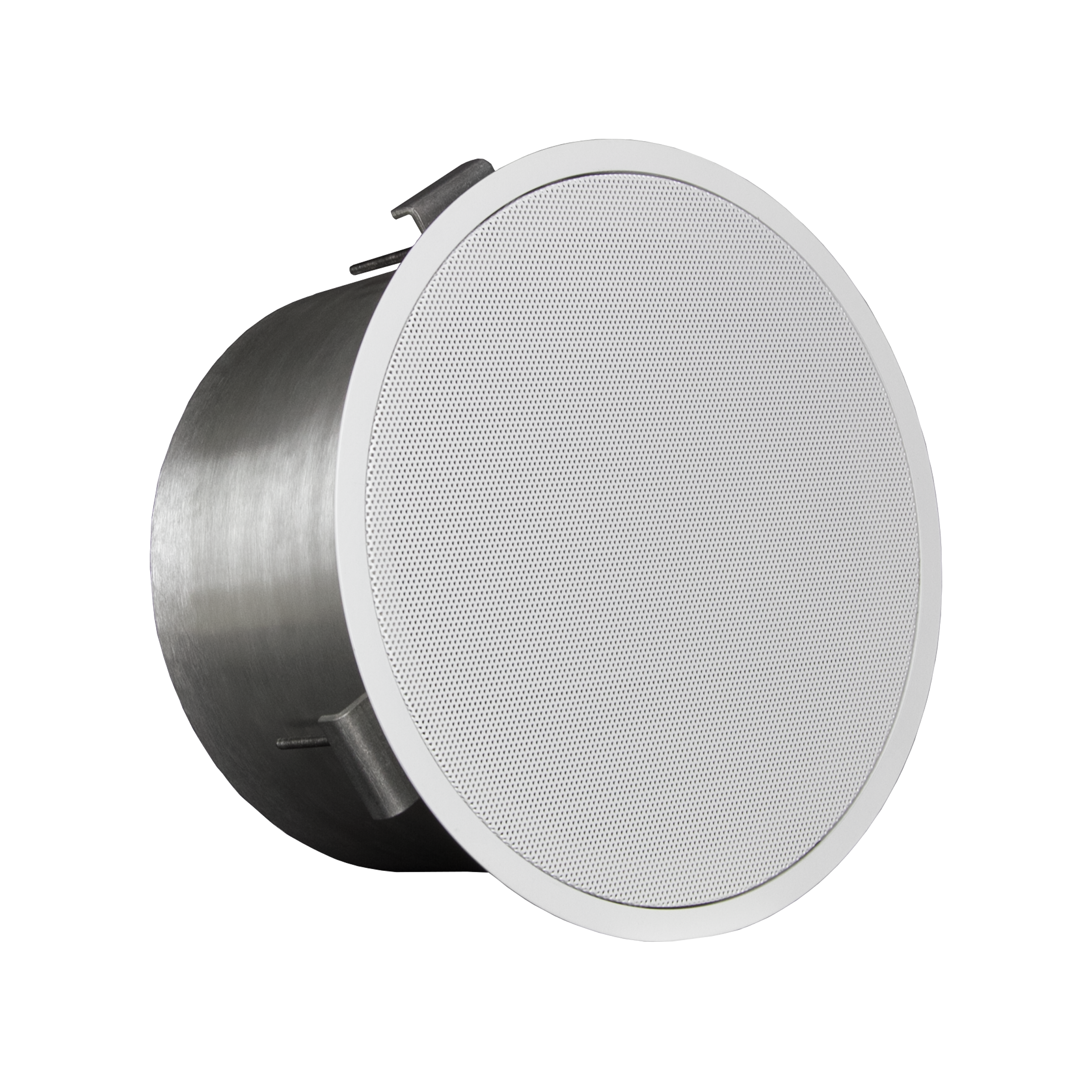

112.02 KB	900x900	FXCQ820R_ISO_Grille.jpg

FXCQ820R - Available downloads

Title: FXCQ820 Round In-Ceiling Speaker

Size	Resolution	(Right-click: Save link as...)

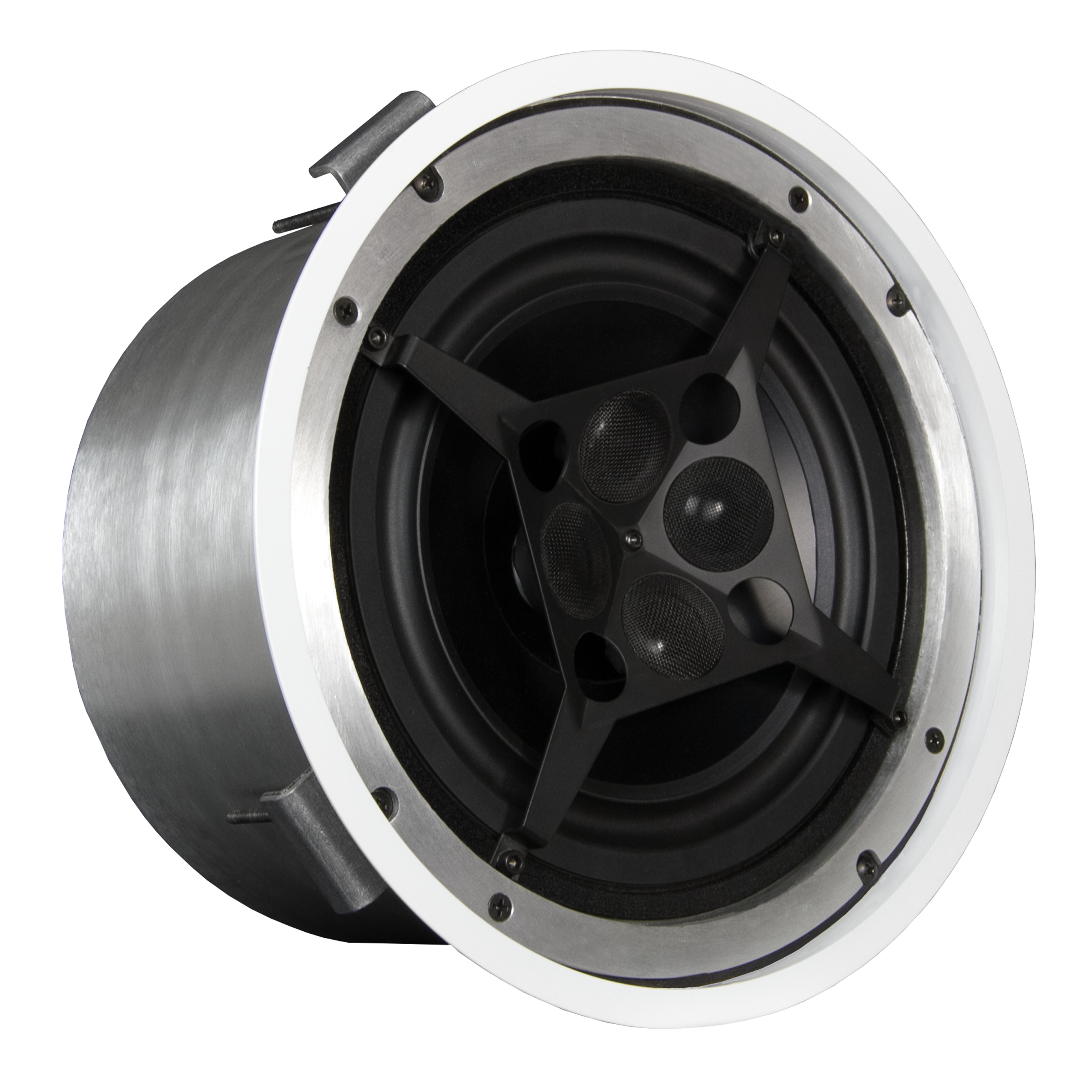

76.26 KB	900x900	FXCQ820R_ISO.jpg
13.04 MB	2400x2400	FXCQ820R_ISO_Grille.png

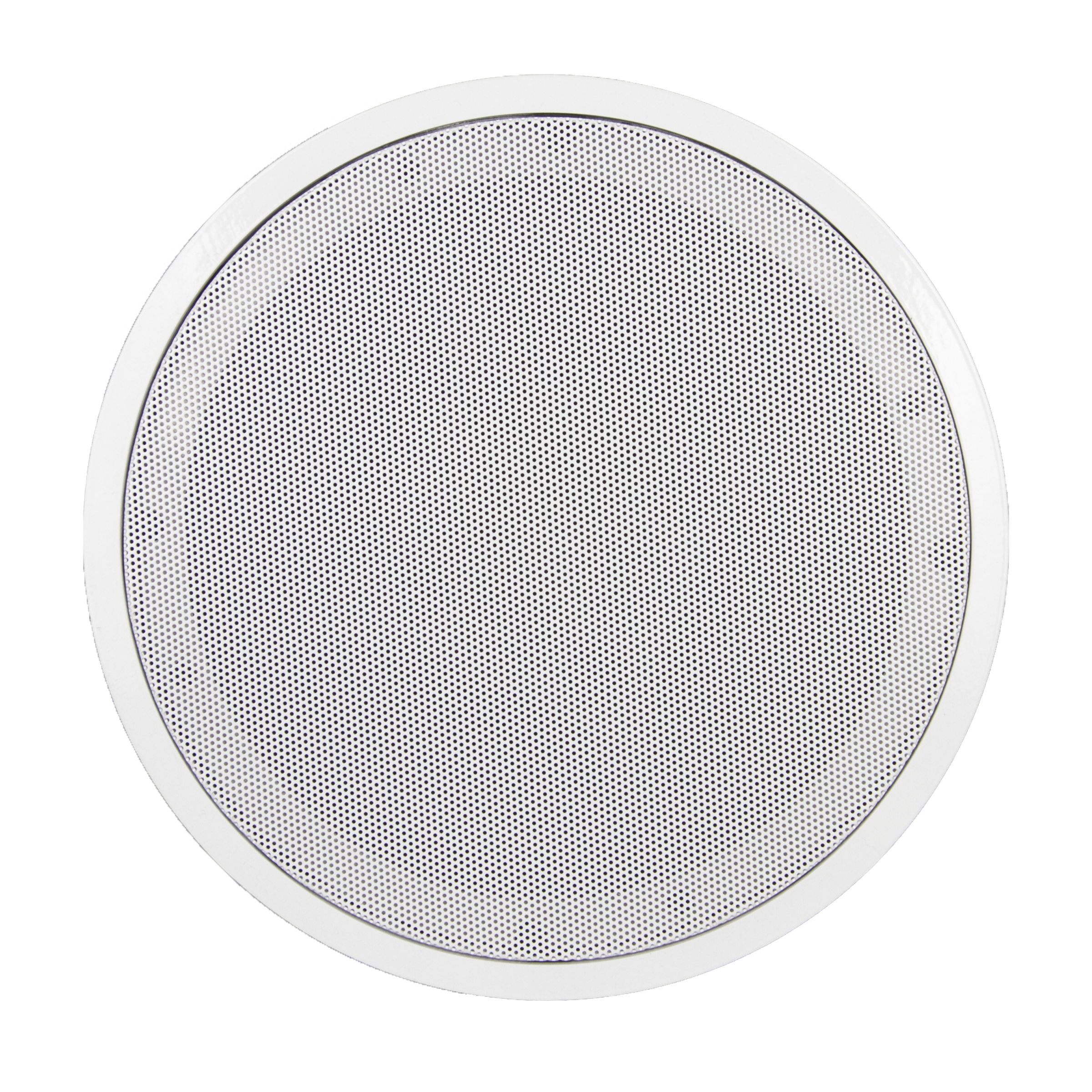

6.34 MB	2400x2400	FXCQ820R_Front_Grille.png
5.73 MB	2400x2400	FXCQ820R_Front.png
9.38 MB	2400x2400	FXCQ820R_Side.png
16.55 MB	2400x2400	FXCQ820R_Inverted_ISO.png
17.34 MB	2400x2400	FXCQ820R_ISO.png
12.21 MB	2400x2400	FXCQ820R_Rear.png

FXCQ820R - Available downloads

Title: FXCQ820 Round In-Ceiling Speaker

Size	Resolution	(Right-click: Save link as...)

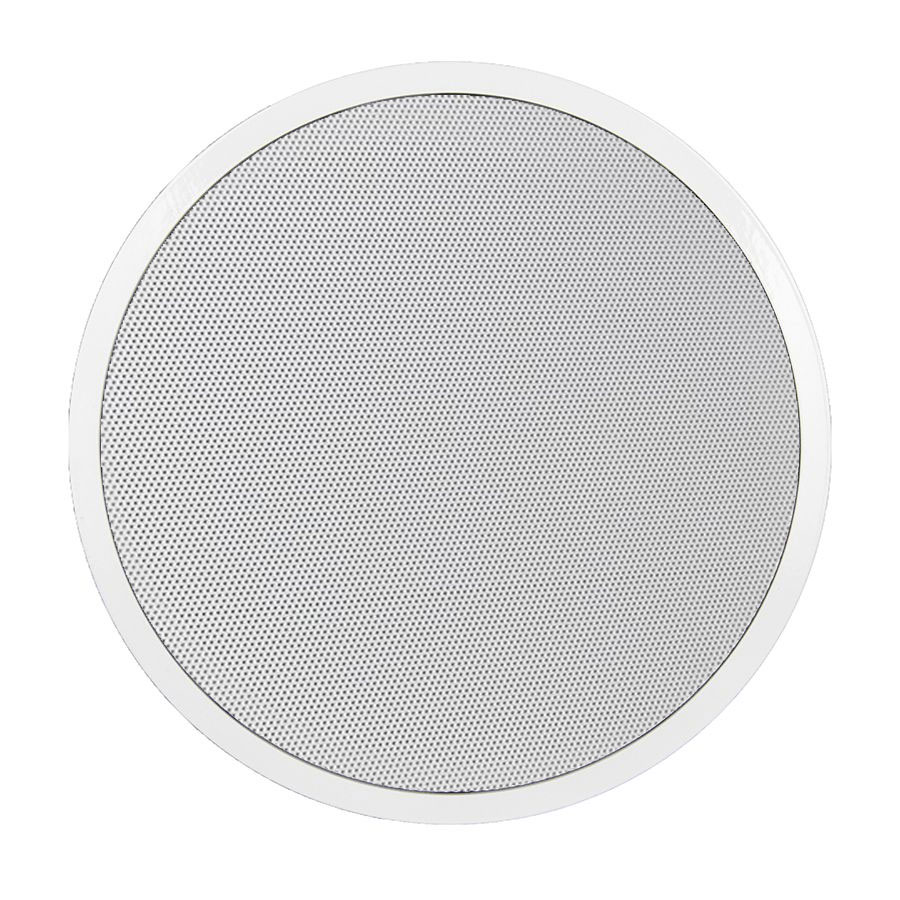

165.04 KB	900x900	FXC_Front_Web.jpg

FXCQ820R - Available downloads

Title: FXCQ820 Round In-Ceiling Speaker

Size	Resolution	(Right-click: Save link as...)

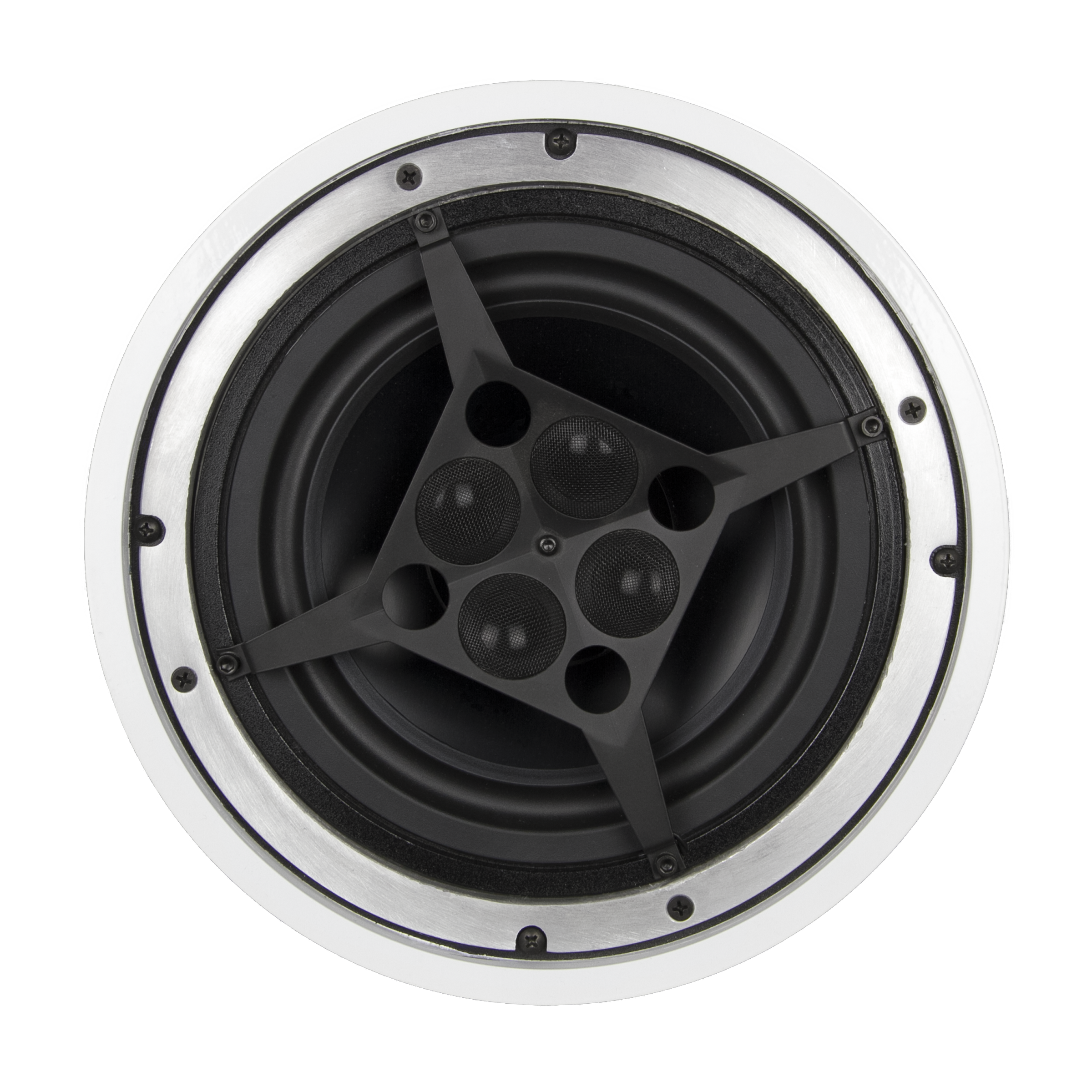

83.51 KB	900x900	FXCQ820R_Front.jpg

FXCQ820R - Available downloads

Title: FXCQ820 Round In-Ceiling Speaker

Size	Resolution	(Right-click: Save link as...)

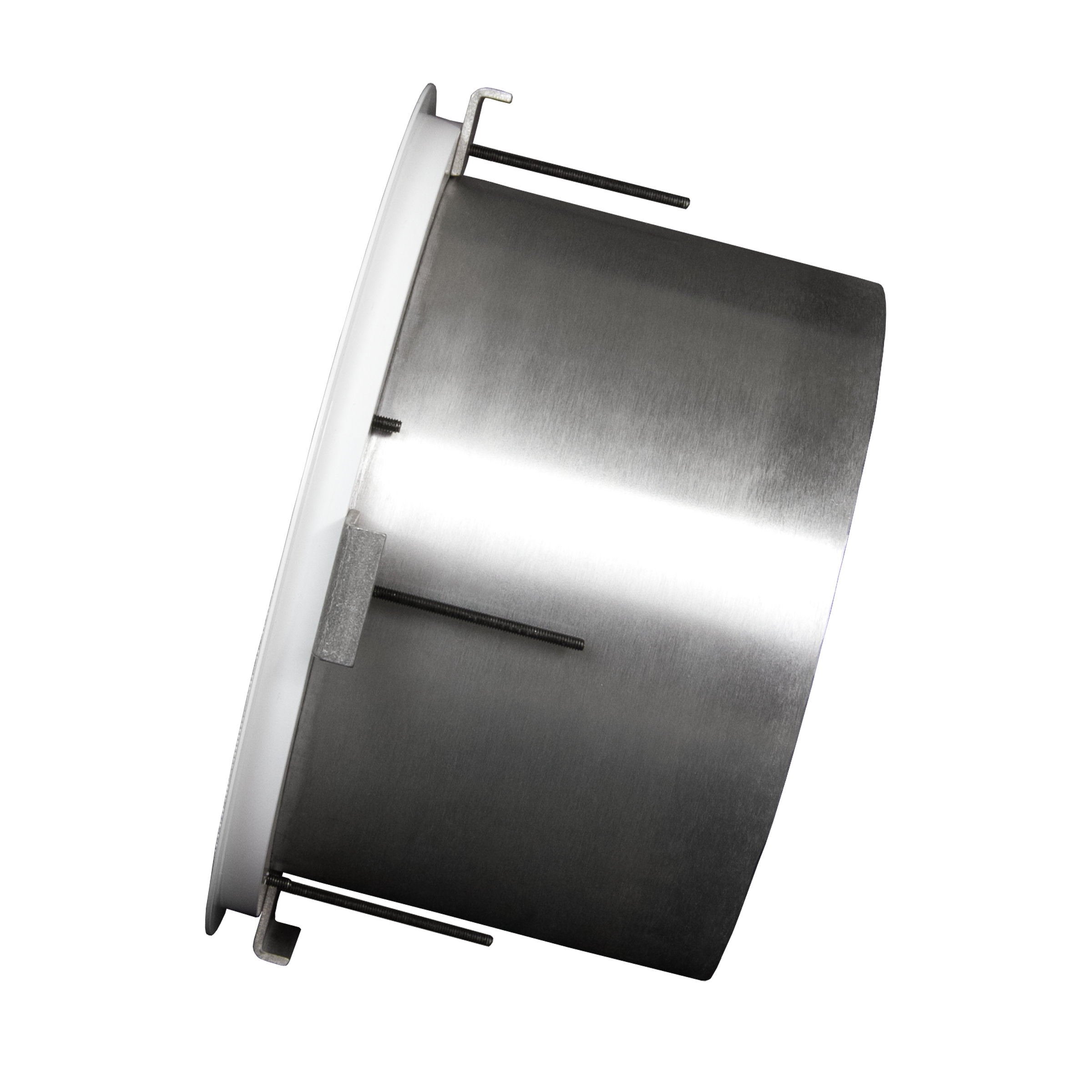

47.60 KB	900x900	FXCQ820R_Side.jpg

FXCQ820R - Available downloads

Title: FXCQ820 Round In-Ceiling Speaker

Size	Resolution	(Right-click: Save link as...)

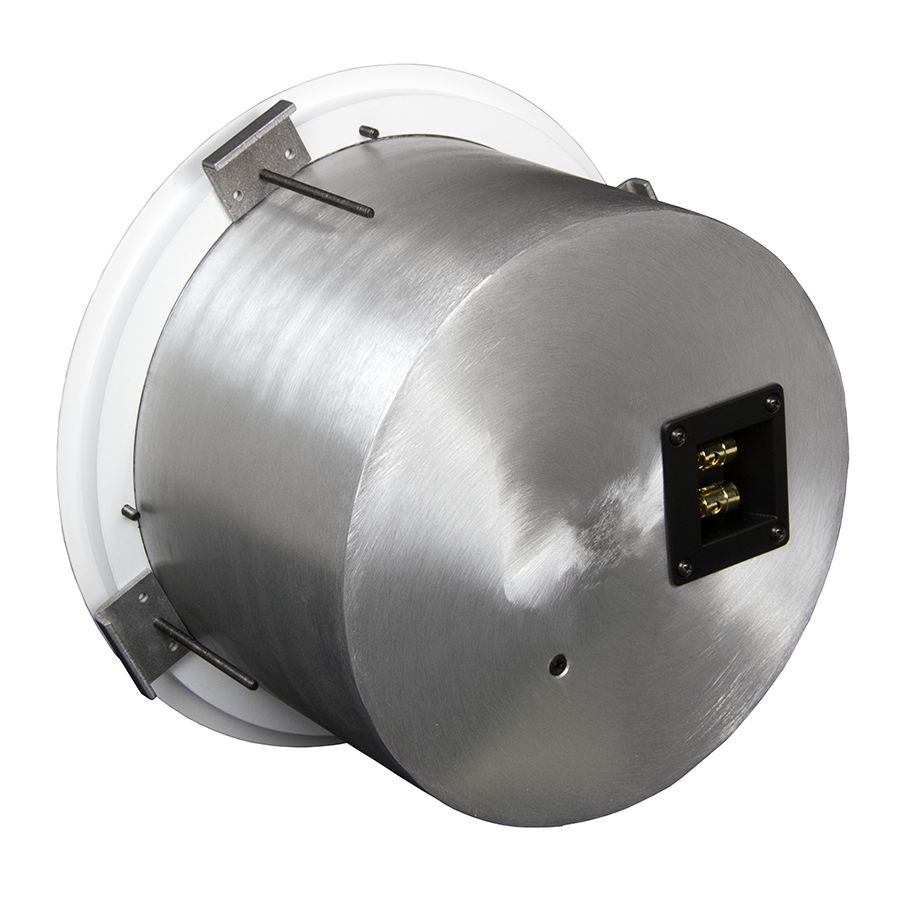

69.45 KB	900x900	FXCQ820R_Inverted_ISO.jpg

FXCQ820R - Available downloads

Title: FXCQ820 Round In-Ceiling Speaker

Size	Resolution	(Right-click: Save link as...)

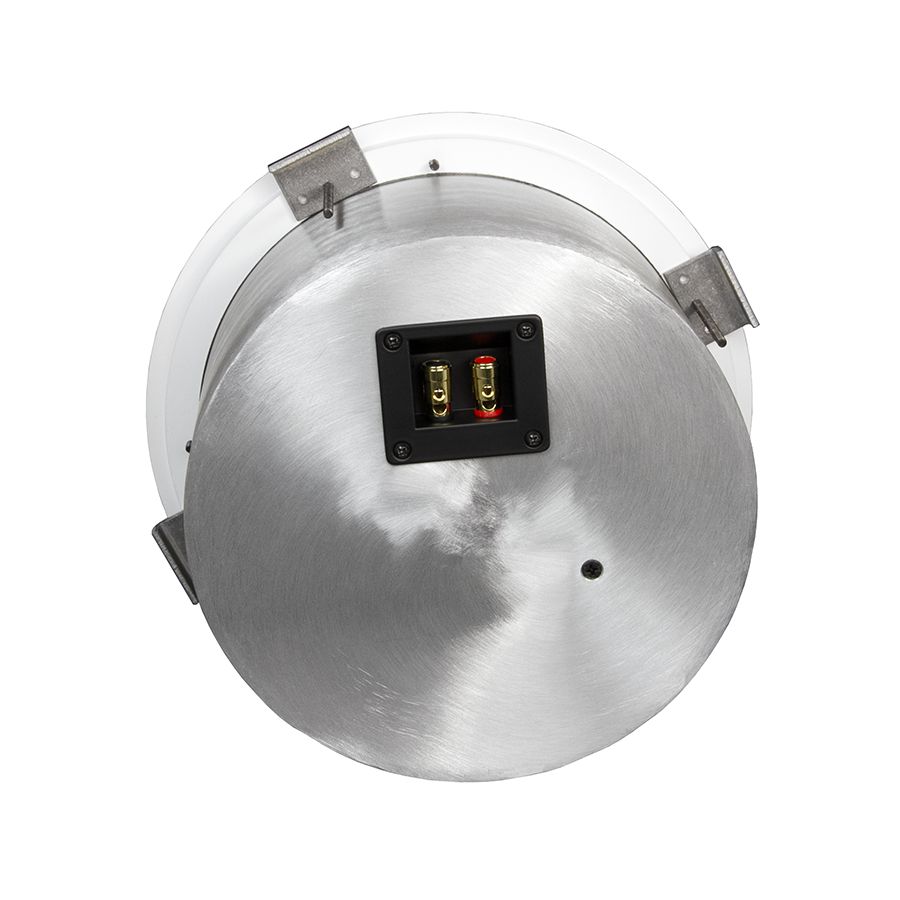

58.92 KB	900x900	FXCQ820R_Rear.jpg
