C-15DF5QCS

High Output Outdoor Array System

Technology header click
Tags:

THIS PRODUCT HAS BEEN CUSTOM DESIGNED FOR A SPECIFIC CUSTOMER AND IS ONLY SHOWN FOR REFERENCE. WE ARE NOT ABLE TO ACCEPT ORDERS USING THE MODEL NUMBER SHOWN. PLEASE CONTACT JAMES TO DISCUSS YOUR APPLICATION AND WE WILL DESIGN A PRODUCT JUST FOR YOU!

This marine grade speaker was crafted to provide wide audio coverage on a large resort beach in Panama. In addition to having a wide coverage area, they also exhibit an impressive frequency response that reaches all the way down to 18Hz, and an astounding throw distance for high output levels at very far distances. Originally developed to carry audio all the way out in the water, overcoming both distance and noise-floor issues were a necessity, but as usual, James delivers. This speaker can also be easily mounted to the floor, making them perfect for any public area.

It also has a custom pair of splayed 55Q style vertical array speakers on top of a EMB15DF subwoofer. All marine designed to survive the salt air and rain. A quantity of these run along the grass line cover the almost 50,000 square feet of sand and water. The systems were 70V bi-amped (100W x 2 for the tower section and 200W for the subwoofer).

Specifications
Frequency Response

18Hz - 24 kHz +/-3dB

Woofer

(1) 15" (381mm) Aluminum

Mid

(8) 5.25" (133mm) Aluminum

Tweeter

(8) 1" (25mm) Titanium Quad Array

Width

16 in (406.40 mm)

Depth

16 in (406.40 mm)

Height

50 in (1270.00 mm)

Product Documents

    None

Related Documents

Click photo for download image options

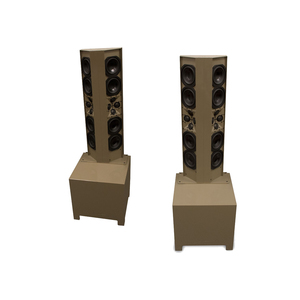

C 55qwemb15df

C-15DF5QCS - Available downloads

Title: C-55QWEMB15DF-70

C 55qwemb15df
Size Resolution (Right-click: Save link as...)
158.39 KB 900x900 C-55QWEMB15Df.jpg
