53SA-4-1L
Custom 53SA-4-1L
Tags:
THIS PRODUCT HAS BEEN CUSTOM DESIGNED FOR A SPECIFIC CUSTOMER AND IS ONLY SHOWN FOR REFERENCE. WE ARE NOT ABLE TO ACCEPT ORDERS USING THE MODEL NUMBER SHOWN. PLEASE CONTACT JAMES TO DISCUSS YOUR APPLICATION AND WE WILL DESIGN A PRODUCT JUST FOR YOU!
This was a very special 53SA-4 derivative for a yacht project. The grille trim kit was enloaged to make room for a single light fixture.
38Hz-22kHz±3dB
4 ohms
88dB 2.83V/1m
(1) 5.25” (133 mm) Aluminum
(1) 2” (50 mm) Aluminum
(1) 0.75” (19 mm) Aluminum
Aircraft Marine Grade Aluminum
13.0 in (330.20 mm)
4.0 in (101.60 mm)
14.38 in (365.25 mm)
15 lbs (6.8 kg)
Product Documents
-
CAD drawings
-
Datasheets/Cutsheets
Related Documents
-
Brochures
Click photo for download image options
53SA-4-1L - Available downloads

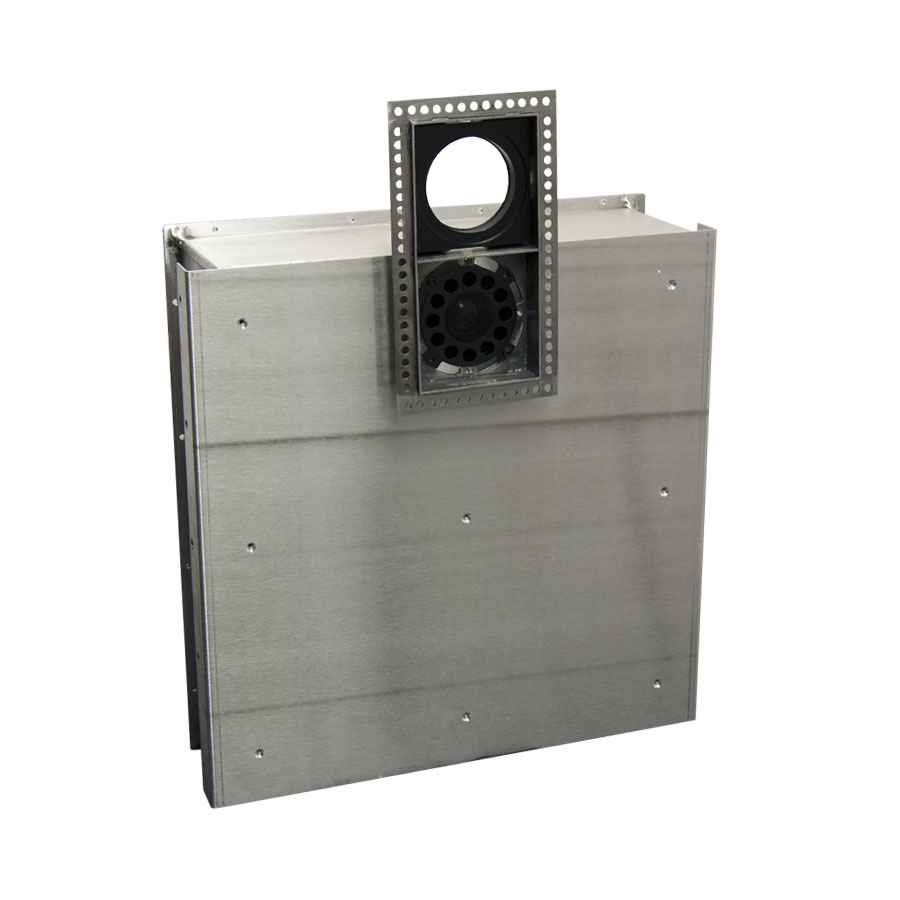

Title: 53SA-4-1L
| Size | Resolution | (Right-click: Save link as...) |
|---|---|---|
| 54.33 KB | 900x900 | 53SA-4-1L.jpg |
53SA-4-1L - Available downloads

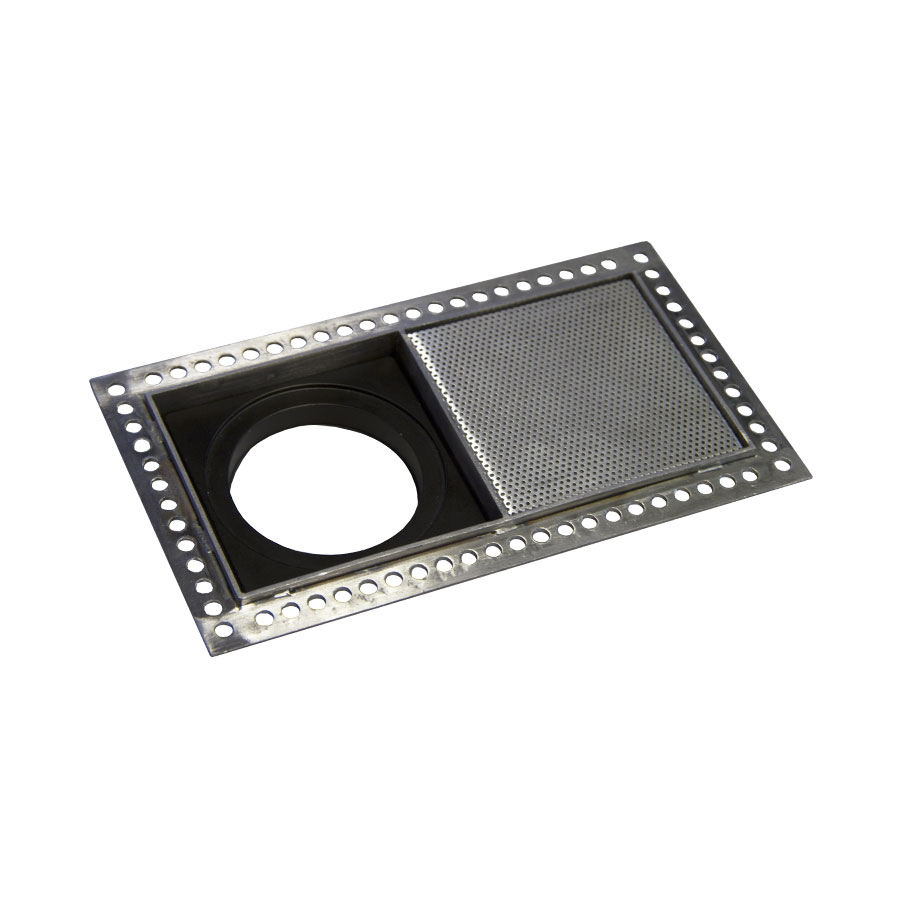

Title: 53SA-4-1L Grille/Light Assembly
| Size | Resolution | (Right-click: Save link as...) |
|---|---|---|
| 63.08 KB | 900x900 | 53SA-4-1L-Grille_Light-Assembly.jpg |
SA Installation - Wood/Solid surface
Small Aperture Installation into a solid surface such as wood or marble.
Small Aperture - Sheetrock Trim Kit Installation
A short installation video on how to install a James Loudspeaker sheetrock trim kit for the Small Aperture® series. For demonstrational purposes half of the trim kit is left exposed.
