63FX
6.5" - 2-Way Flushmount In-wall
Tags:
(2) 6.5" neodynium woofer (1) 1" dome tweeterp AFDC circuit adjusts the speaker to your environment.. James' Opus In-Wall speakers are concealed discretely into your environment. Enclosure construction crafted from 5052 aircraft aluminum ensuring minimal internal resonance.
Specifications
Frequency Response
50-20khz +/- 3dB
Nominal Impedance
4 Ohms
Sensitivity
90dB @ 2.83V @ 1 Meter
Crossover
AFDC 12 dB / Octave - Variable
Drivers
(2) 6.5
Recommended Power Range
50W - 200W
Woofer
(2) 6.5
Tweeter
(1) 1
Enclosure
Aircraft Aluminum
Finishes
Paintable White Grille
Cutout
24.875 x 9.125 / 632mm x 232mm
Width
9.77 in (248.16 mm)
Depth
3.875 in (98.42 mm)
Height
25.577 in (649.66 mm)
Grille Height
24.703 in (627.46 mm)
Grille Width
8.896 in (225.96 mm)
Product Documents
-
CAD drawings
-
Datasheets/Cutsheets
-
Installation Guides and Info
Click photo for download image options
63FX - Available downloads

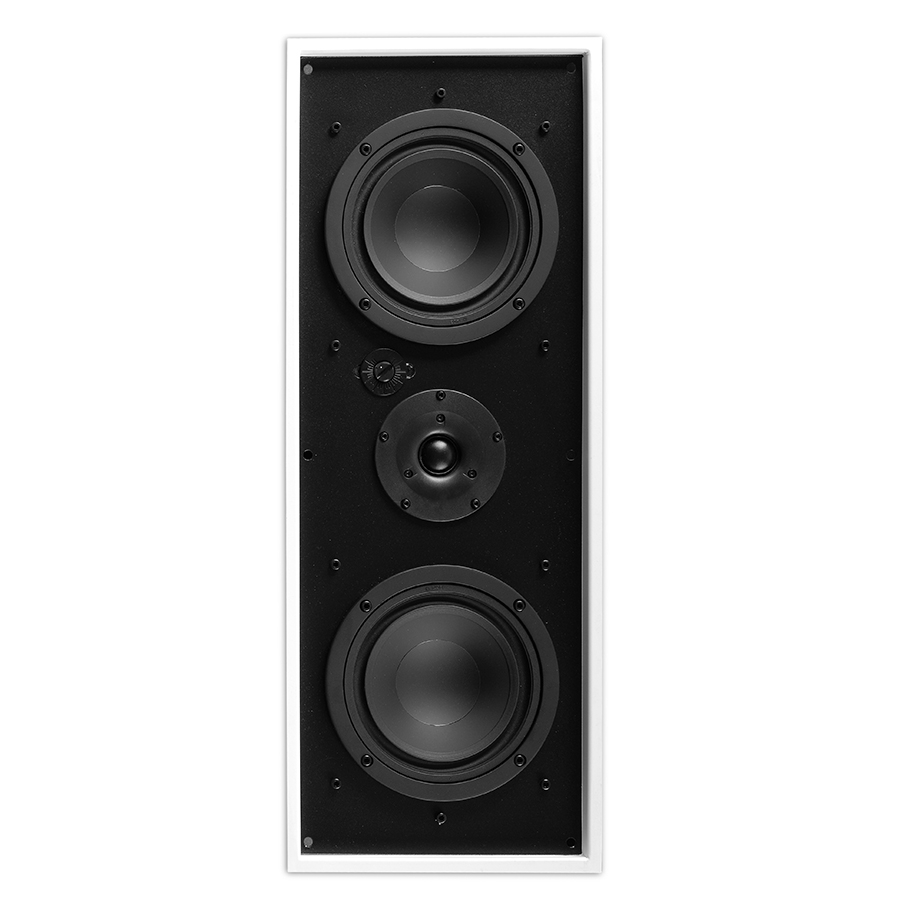

Title: 63FX front
| Size | Resolution | (Right-click: Save link as...) |
|---|---|---|
| 150.79 KB | 900x900 | 63fx-front.jpg |
