SLT3-CS
3.5" Woofer, Centergy Pair With a 4.97" Depth
Tags:
THIS PRODUCT HAS BEEN CUSTOM DESIGNED FOR A SPECIFIC CUSTOMER AND IS ONLY SHOWN FOR REFERENCE. WE ARE NOT ABLE TO ACCEPT ORDERS USING THE MODEL NUMBER SHOWN. PLEASE CONTACT JAMES TO DISCUSS YOUR APPLICATION AND WE WILL DESIGN A PRODUCT JUST FOR YOU!
The SLT, or "Slot" series provides a special solution and performance for your home entertainment needs and it is a custom design. Like all James soundbars, each bar comes completely customized for your TV. Not only do we guarantee that your bar will perfectly match the size of your television, but we also make sure that your bar comes in the color and format that you want. Whether you’re looking for just a center channel, a stereo bar, or the complete package of left, center and right, we have the bar for you. We even make bars that mount to the sides of the TV for applications where mounting to the bottom is impossible, using the James Loudspeaker centergy technology to integrate the center channel into both bars in a dual monaural design and allowing maximum versatility in integrating sound into your entertainment system.
80Hz-20kHz +/-3dB
4 ohms
87dB 2.83V/1m
50 - 150W
(4-6) 3.5" (89mm) High Excursion
(1-3) 2" (50mm) Aluminum
(1-3) 0.75" (19mm) Aluminum
Aircraft Grade Aluminum
Studio Black, Satin Black, Gloss Black, Dark Titanium, Light Titanium, Mirror Silver
3.15 in (80.01 mm)
4.97 in (126.24 mm)
Custom / (Absolute Minimum Height: 36" or 914mm)
Product Documents
-
Datasheets/Cutsheets
-
Manuals
Related Documents
-
Brochures
Click photo for download image options
SLT3-CS - Available downloads

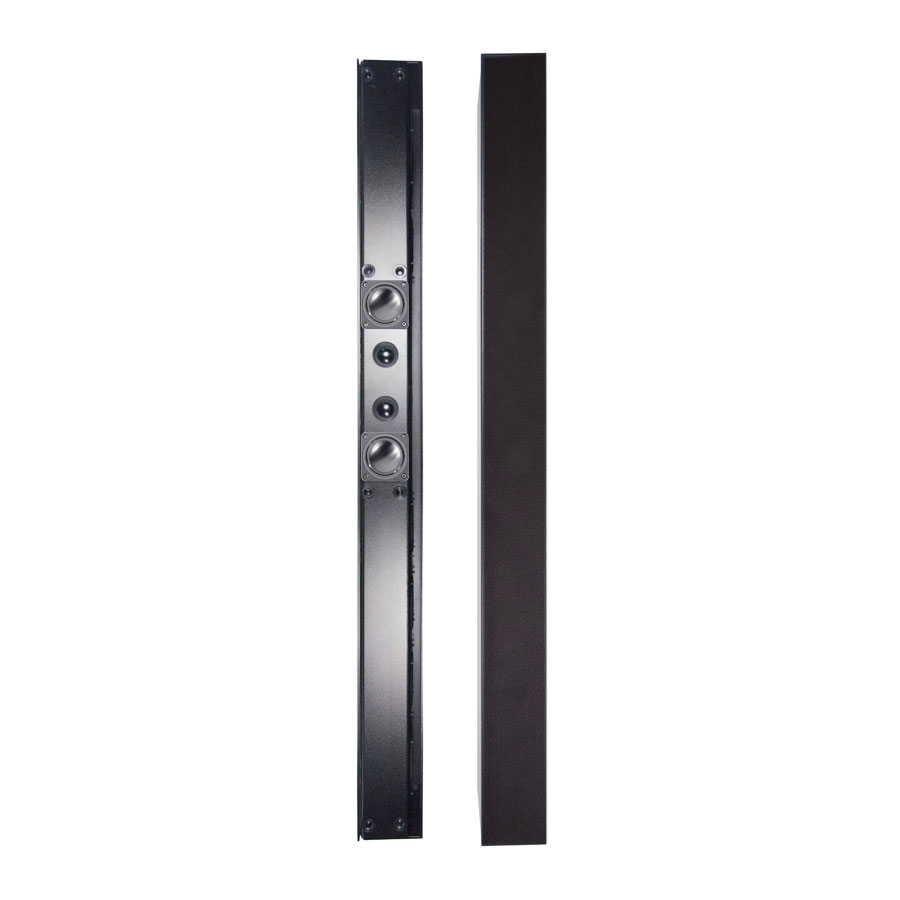

Title: SLT3CS Centergy Pair SoundBar
| Size | Resolution | (Right-click: Save link as...) |
|---|---|---|
| 32.67 KB | 900x900 | SLT3CS-Centergy-Pair-SoundBar.jpg |
SLT3-CS - Available downloads
Title: SLT3CS-Single
| Size | Resolution | (Right-click: Save link as...) |
|---|---|---|
| 26.39 KB | 900x900 | SLT3CS-Single.jpg |
SLT3-CS - Available downloads

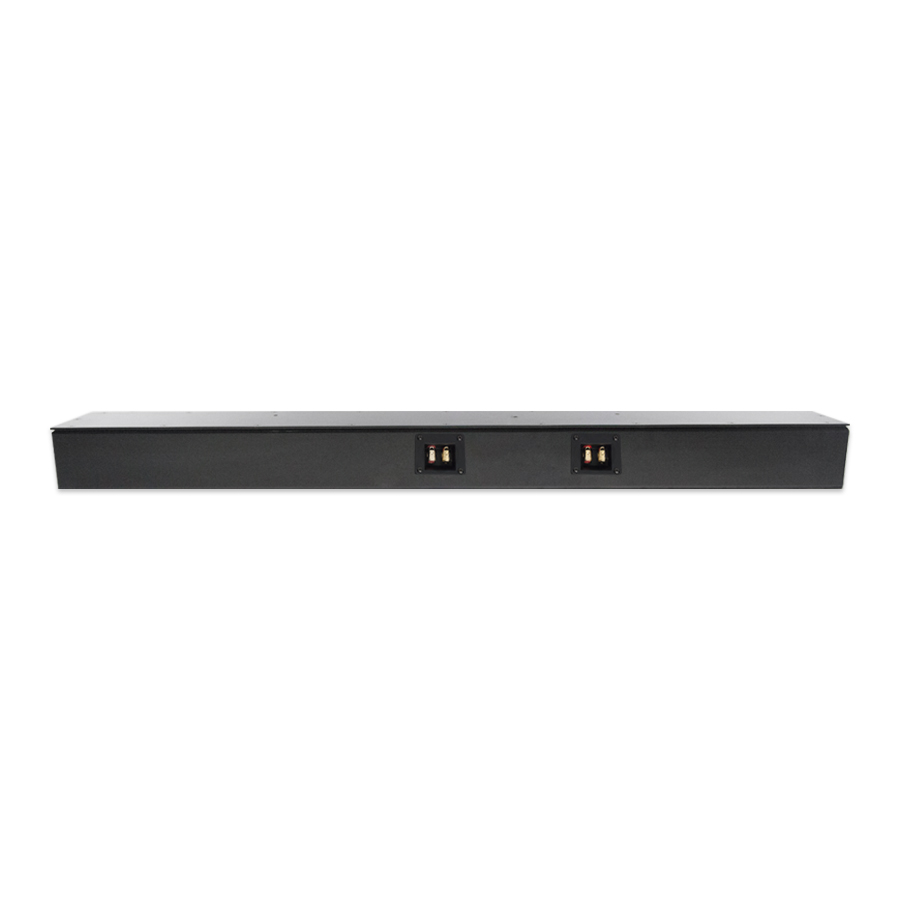

Title: SLT3CS Rear
| Size | Resolution | (Right-click: Save link as...) |
|---|---|---|
| 96.32 KB | 900x900 | SLT3C_Rear_Web.jpg |
SLT3-CS - Available downloads
Title: SLT3CS Slot Close-Up
| Size | Resolution | (Right-click: Save link as...) |
|---|---|---|
| 467.86 KB | 900x900 | SLT3_C_WEB.jpg |
SLT3-CS - Available downloads
Title: SPL CS TV Installation Example
| Size | Resolution | (Right-click: Save link as...) |
|---|---|---|
| 30.49 KB | 900x900 | TV-Mount-Example.jpg |
| 30.49 KB | 900x900 | TV-Mount-Example.jpg |
SLT3-CS - Available downloads
Title: SLT3CS Install Example
| Size | Resolution | (Right-click: Save link as...) |
|---|---|---|
| 133.68 KB | 1288x900 | SLT3CS_Slot_Install.jpg |
