FXC620R
6", 2-Way, Ceiling Speaker

This product has been discontinued

Tags:

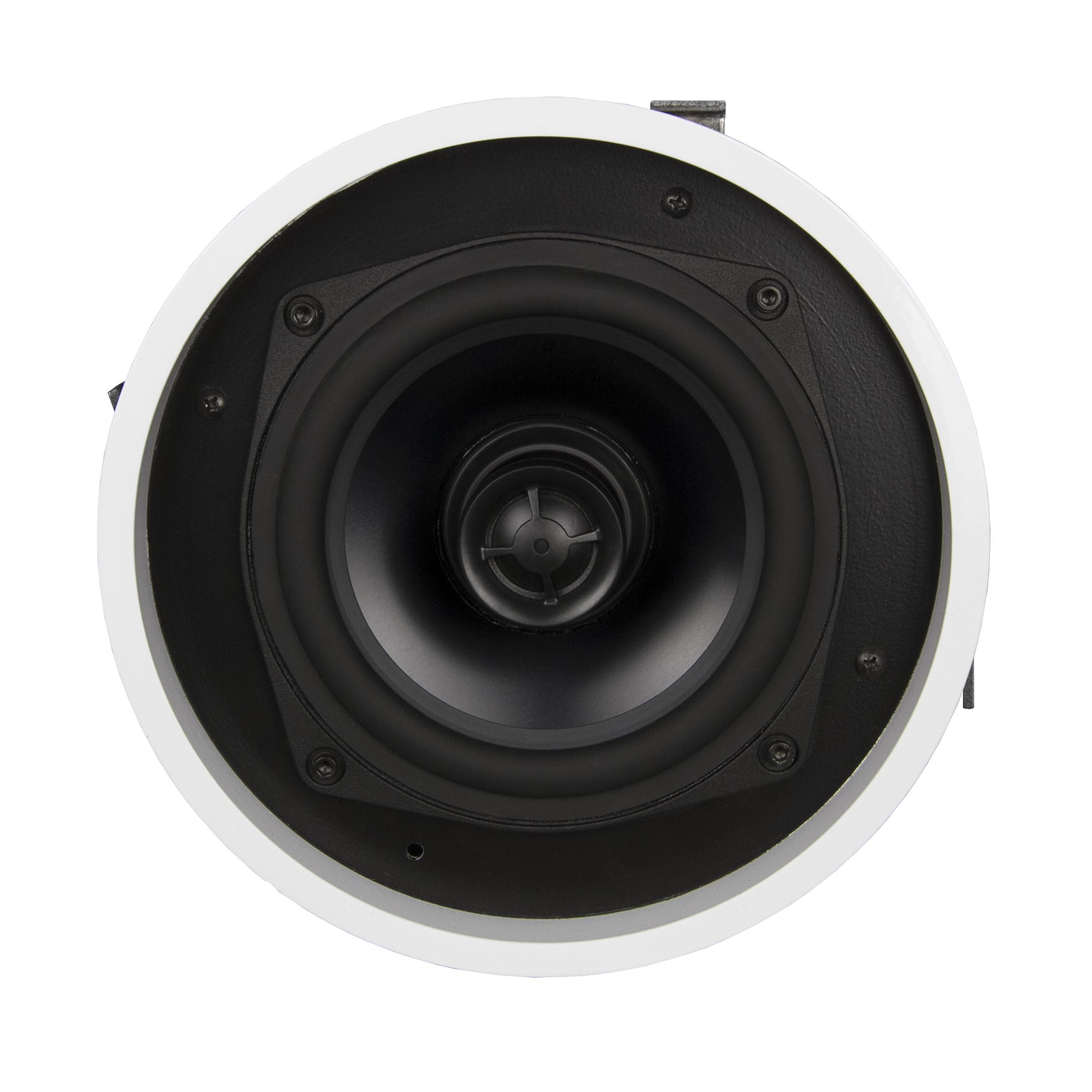

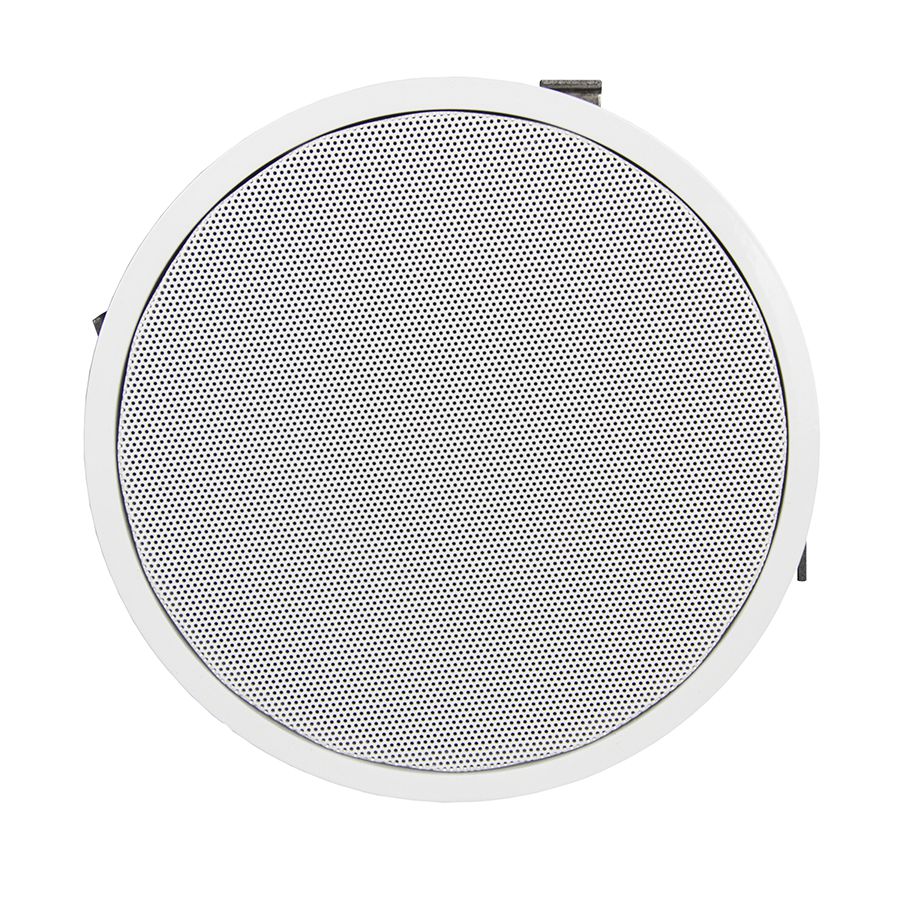

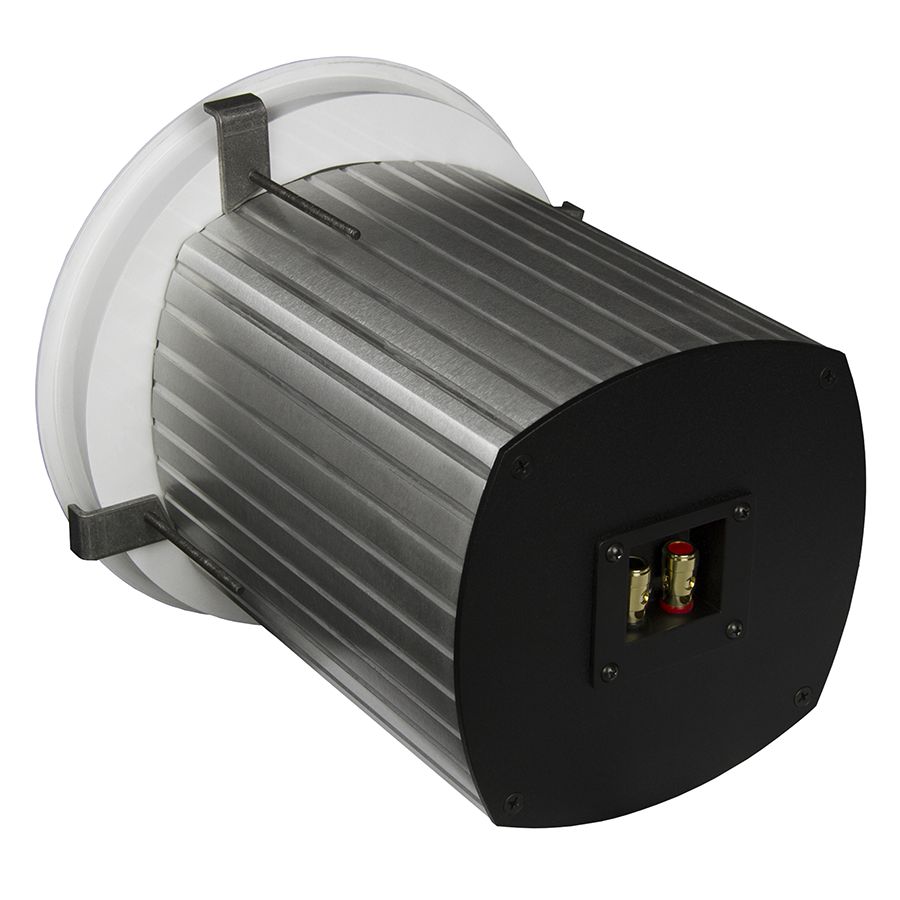

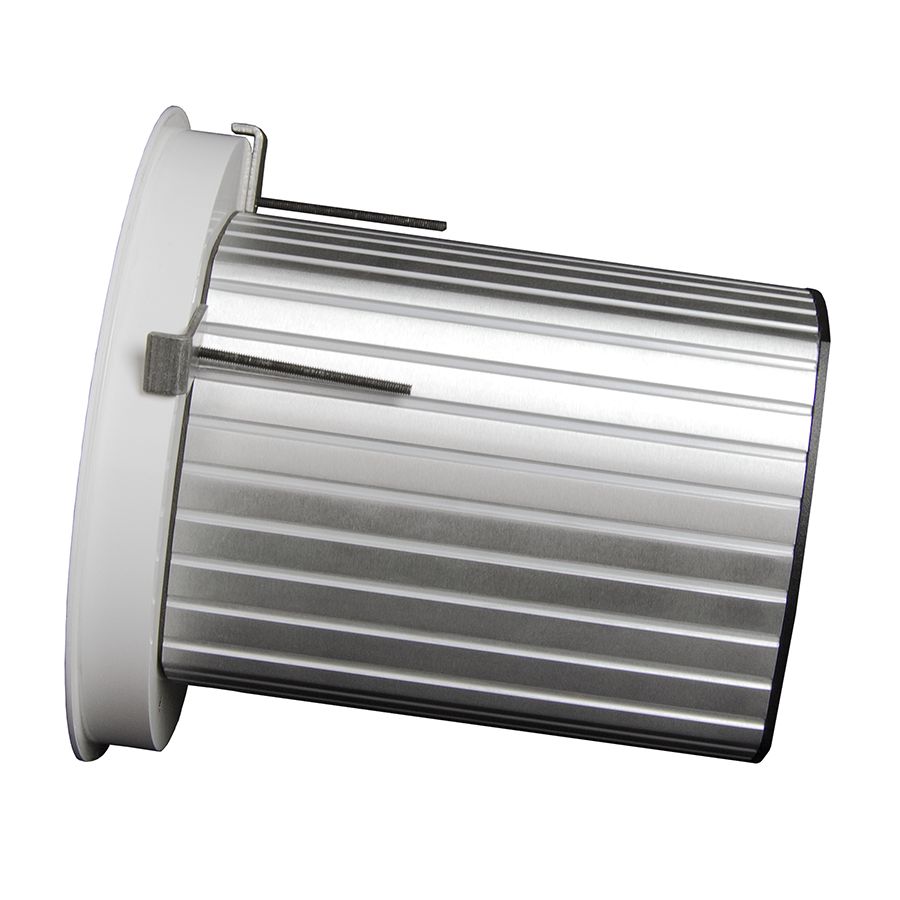

The FXC620R ceiling speaker features a traditional 3/8” mounting flange, but by using a thin aluminum material instead of plastic, the speakers provides a flush mounted look - a preferred visual for many clients. The FXC620R, small-format loudspeakers feature a coaxially mounted 0.75” aluminum dome tweeter design over a proprietary high-excursion 6.5” woofer. The FXC line was inspired by the successful SXC in-ceiling speakers, and intended for smaller spaces like kitchens, bathrooms and hallways where a James SA Series speaker is not needed. These speakers are enhanced when paired with a James subwoofer such as the QXC10S or QXC8S. All woofers are James designed with aluminum cones and santoprene surrounds to allow marine use while maintaining the highest quality sound. The enclosure is constructed with aircraft grade 5052 aluminum and includes a round white paintable aluminum grille. Installation could not be easier for either retro-fit or new construction projects.

For marine applications, use the FXC620RM. 70V options available - for more information, contact your James dealer, representative or the James office.

Specifications

Frequency Response

70Hz-20kHz +/-3dB

Nominal Impedance

4 ohms

Sensitivity

90dB 2.83V/1m

Recommended Power Range

25 - 150W

Woofer

(1) 6.5" (165mm) Aluminum

Tweeter

(1) 0.75" (19mm) Aluminum

Enclosure

Aircraft Marine Grade Aluminum

Finishes

White Paintable Grille

Cutout

∅8.500" (215.90 mm) / 8.5" x 8.5"

Width

9.150 in (232.41 mm)

Depth

6 in (152.40 mm)

Height

9.150 in (232.41 mm)

Preconstruction Board (PCB)

FXC620R-PB

Product Documents

CAD drawings
- FXC620R Drawing (DWG)
- FXC620R Drawing (PDF)
Datasheets/Cutsheets
- FXC620R Datasheet
Installation Guides and Info
- FXC Series - Sheetrock Installation
Manuals
- Paintable Grille Instructions
