The FXCQ620S ceiling loudspeaker from James provides performance that is second to none and features a sleek, modern appearance with a 3/8” (9.5mm) wide aluminum flange which is only 0.09” (2.3mm) thick, making the loudspeaker appear almost flush when mounted. The 6.5” woofer is James designed with an aluminum cone and santoprene surround to allow marine use while maintaining the highest quality sound. A James first, the Quad-Tweeter Array, features 4 aluminum 0.75” (19 mm) dome tweeters in a 22.5° offset array for wide dispersion, high power handling, and low distortion promising to deliver audiophile-quality where it counts. The enclosure is constructed with aircraft grade 5052 aluminum and includes a round white paintable aluminum grille. The FXCQ620S has an impressive 92dB sensitivity with bass down to below 65Hz. A multi-element network blends the highs and lows into a smooth and wide response.

For marine applications, order the marine version, FXCQ620SM. A round version is available as the FXCQ620R.  70V options are available - for more information, contact a James dealer, representative or the James office.

Product Documents

• CAD drawings

  • FXCQ620S CAD Drawing (PDF)
  • FXCQ620S CAD Drawing (DWG)

• Datasheets/Cutsheets

  • FXCQ620S Datasheet

• Installation Guides and Info

  • FXC Series - Sheetrock Installation

• Manuals

  • Paintable Grille Instructions

Related Documents

• Brochures

  • Full Line Brochure

• Case Studies

  • Case Study - The MAW Gallery (CS1006)

Click photo for download image options

FXCQ620S - Available downloads

Title: FXCQ620S Front

Size	Resolution	(Right-click: Save link as...)
295.48 KB	900x900	FXCQ620S_ISO_Web.jpg

FXCQ620S - Available downloads

Title: FXCQ620S Square In-Ceiling Speaker

Size	Resolution	(Right-click: Save link as...)
62.82 KB	900x900	FXCQ620S_Front_no_grille.jpg

FXCQ620S - Available downloads

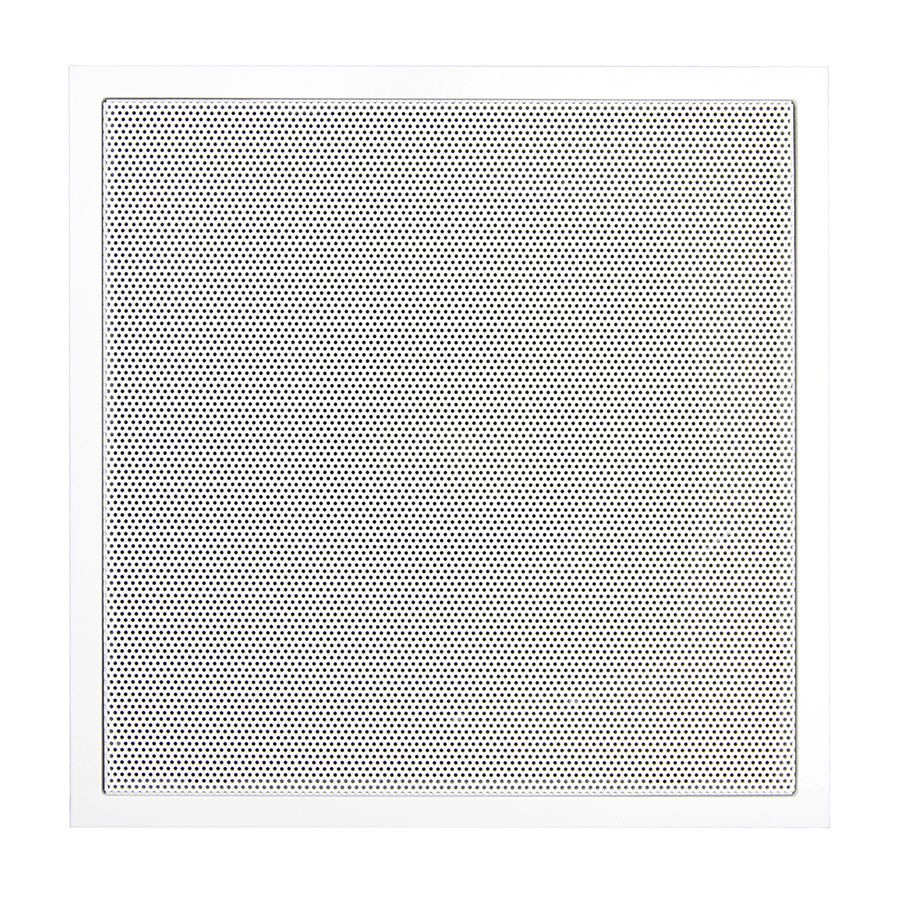

Title: FXCQ620S Square In-Ceiling Speaker

Size	Resolution	(Right-click: Save link as...)
267.74 KB	900x900	FXCQ620S_Front_Grille.jpg

FXCQ620S - Available downloads

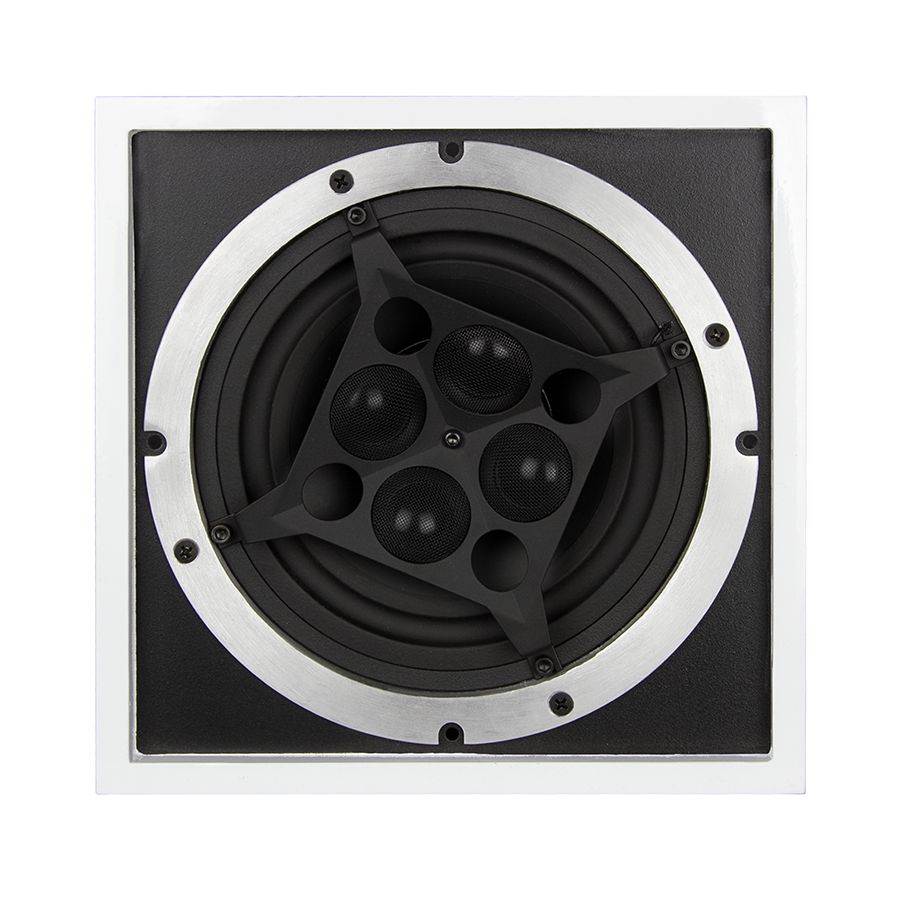

Title: FXCQ620S Square In-Ceiling Speaker

Size	Resolution	(Right-click: Save link as...)
81.08 KB	900x900	FXCQ620-2_Front_nogrille.jpg

FXCQ620S - Available downloads

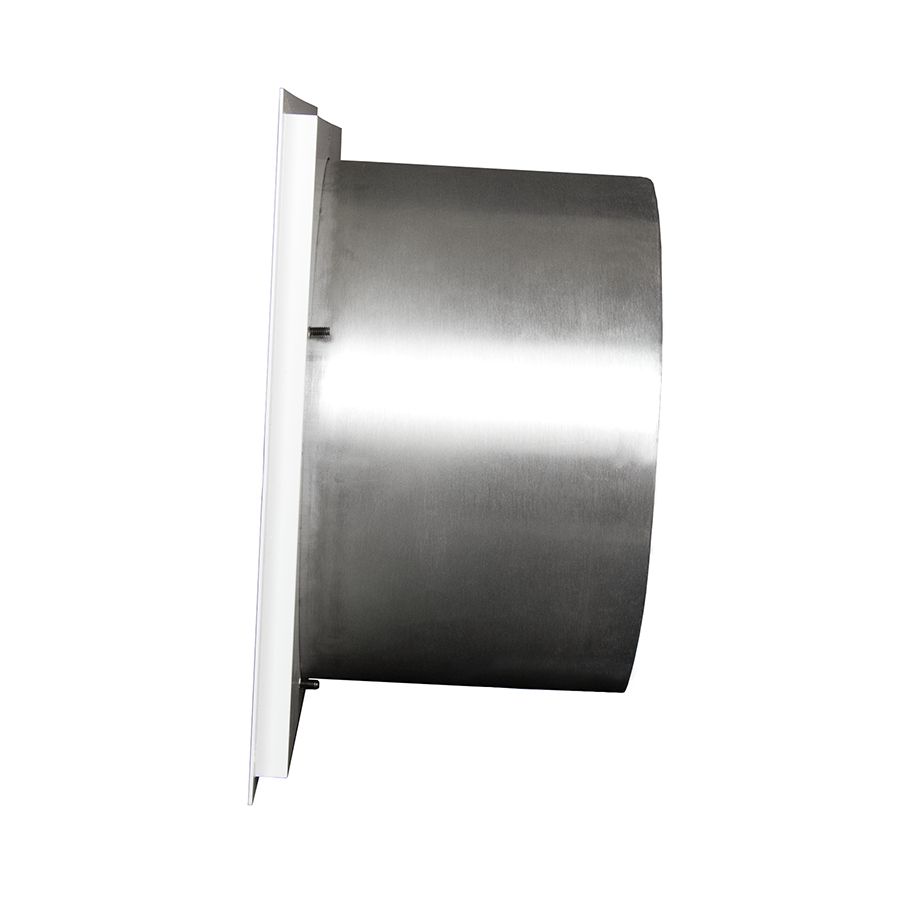

Title: FXCQ620S Square In-Ceiling Speaker

Size	Resolution	(Right-click: Save link as...)
33.60 KB	900x900	FXCQ620_Side.jpg

FXCQ620S - Available downloads

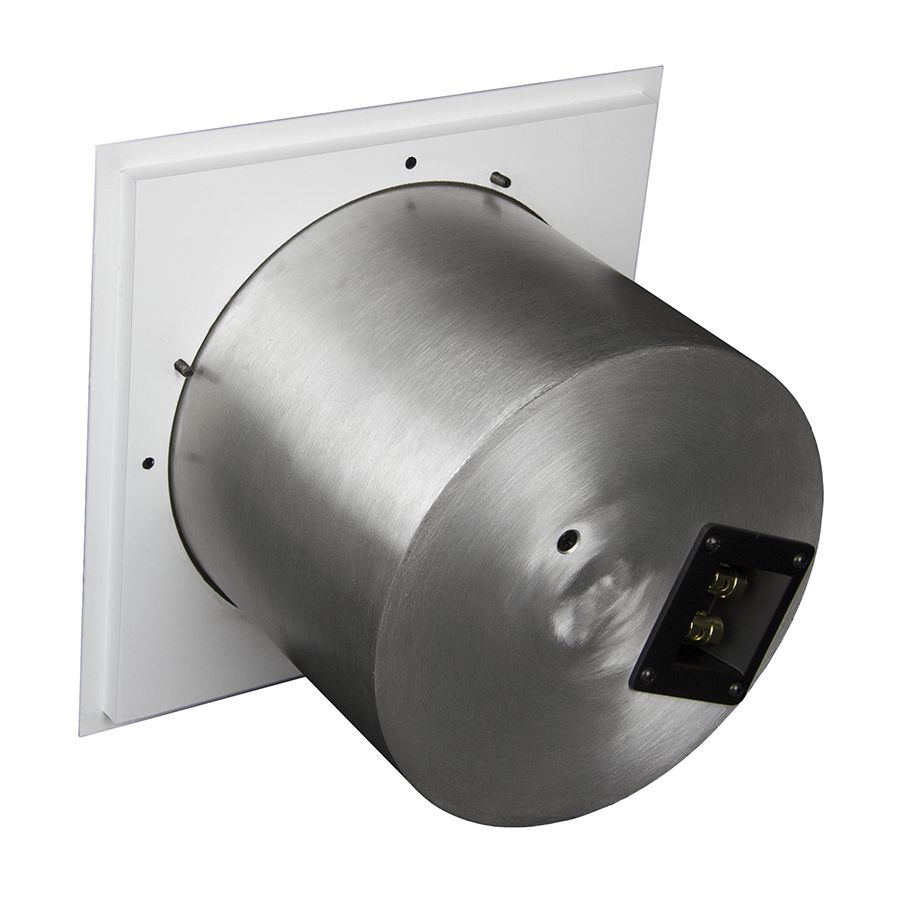

Title: FXCQ620S Square In-Ceiling Speaker

Size	Resolution	(Right-click: Save link as...)
59.44 KB	900x900	FXCQ620_Rear_ISO.jpg

FXCQ620S - Available downloads

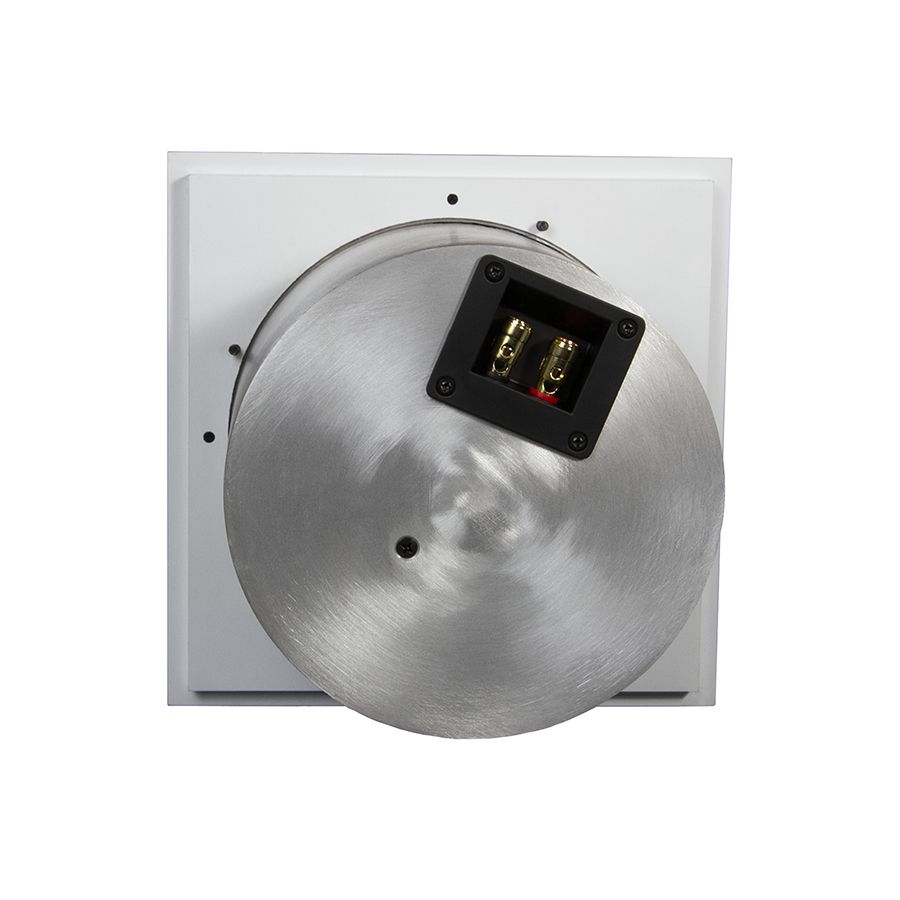

Title: FXCQ620S Square In-Ceiling Speaker
