MISC.ELBOW.004
PowerPipe 4" Diameter Tube 90-Degree Elbow

Tags:

The MISC.ELBOW.004 is a 90-degree elbow for use with 4" diameter powerpipe subwoofers tubes to provide a smooth 90-degree bend in a powerpipe tube.

- It is unique in that one end is female and the other is male, removing the need for any additional couplers.

- Our power pipe tubes are difficult to bend, so these would be useful when a small radius bend is needed in tight spaces.

- Ideal uses would be 2x10 and 2x12 stud bays where the client is using a QXC or SA toekick.

- Fits within 9” of depth when using the adapter with these toekicks.

NOTE: The effective acoustic length of the tube will be reduced approximately 6-8” when using this elbow adapter so consider your tube length to maintain tuning.

Specifications

Product Documents

CAD drawings
- AuotCAD drawing (DWG)
- CAD Drawing (PDF)

MISC.ELBOW.004 - Available downloads

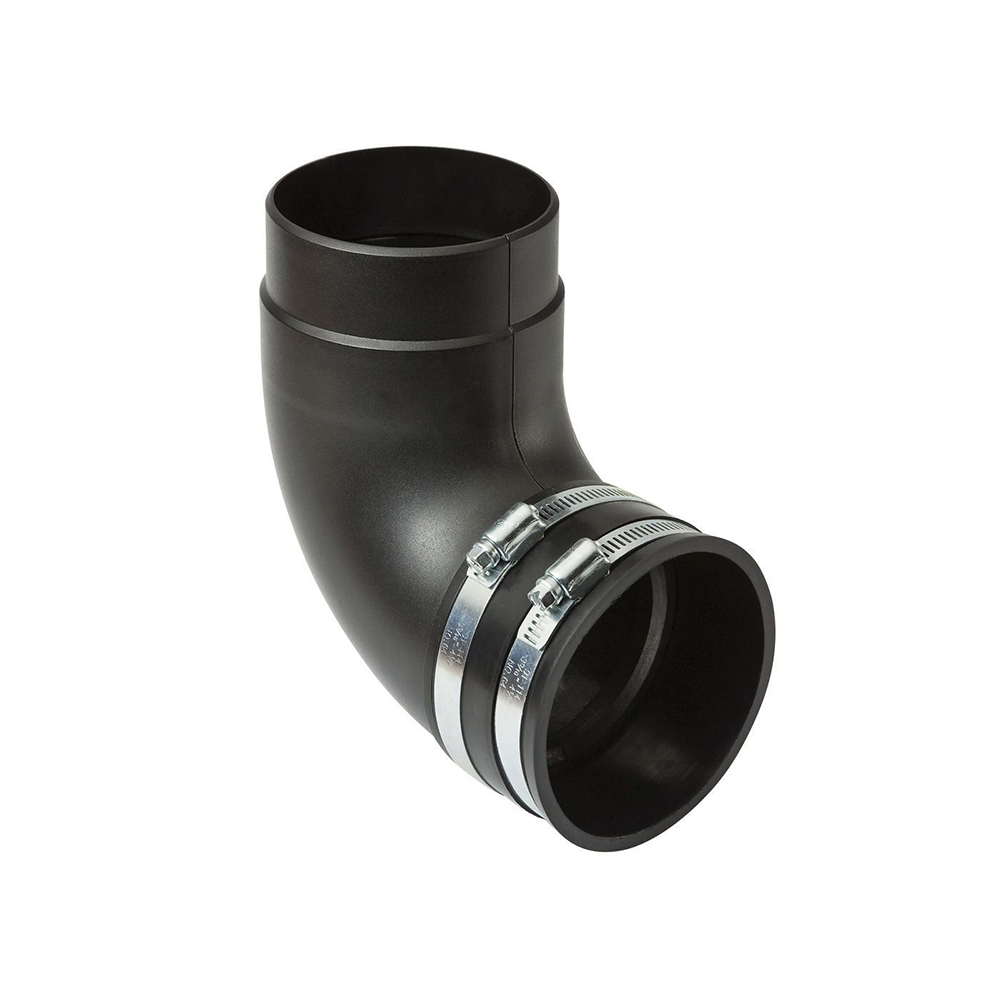

Title: 90-degree 4" PowerPipe Elbow

Size	Resolution	(Right-click: Save link as...)
154.06 KB	1000x1000	MISC.ELBOW.004-1.jpg

MISC.ELBOW.004 - Available downloads

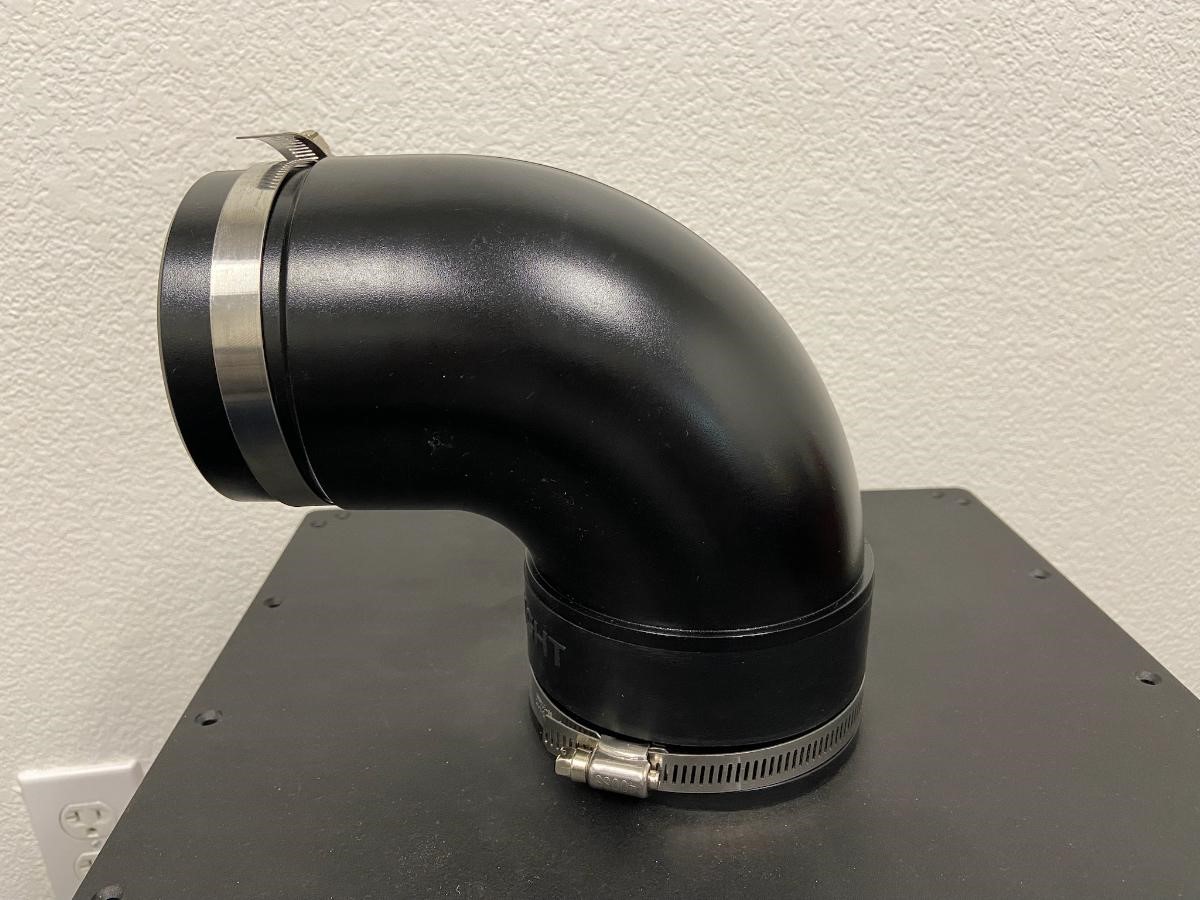

Title: MISC.ELBOW.004 on PowerPipe Subwoofer before tube install

Size	Resolution	(Right-click: Save link as...)
180.46 KB	1200x900	MISC.ELBOW.004_2.jpg

MISC.ELBOW.004 - Available downloads

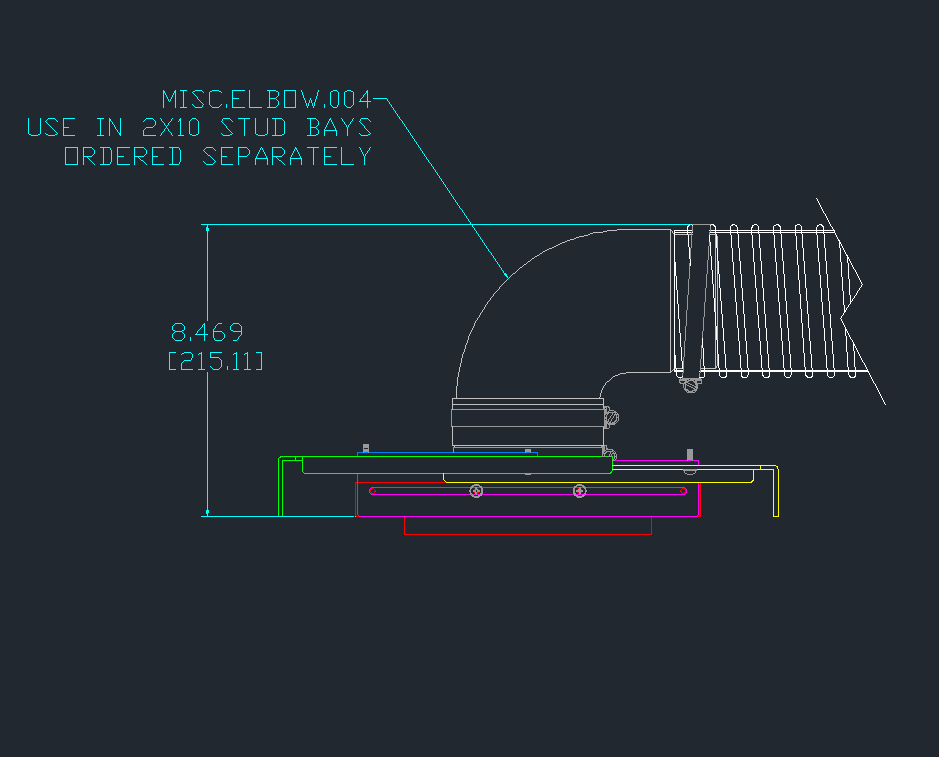

Title: Application drawing for use

Size	Resolution	(Right-click: Save link as...)
14.22 KB	939x757	MISC.ELBOW.004_useage.png

MISC.ELBOW.004 - Available downloads

Title: PowerPipe Hidden Under Staircase

Size	Resolution	(Right-click: Save link as...)
69.68 KB	600x900	Stairs_PP.jpg

MISC.ELBOW.004 - Available downloads

Title: GALLERY Architectural-Hidden-LR_IMG_1555-copy.jpg

Size	Resolution	(Right-click: Save link as...)
425.72 KB	2400x1600	LR_IMG_1555-copy.jpg
425.72 KB	2400x1600	IMG_1555-copy.jpg

MISC.ELBOW.004 - Available downloads

Title: PowerPipe floor vent installation

Size	Resolution	(Right-click: Save link as...)
95.08 KB	900x900	PP_floor_vent.jpg

MISC.ELBOW.004 - Available downloads

Title: Toekick in marble

Size	Resolution	(Right-click: Save link as...)
134.21 KB	1191x900	powerpipe_in_marble.jpg

MISC.ELBOW.004 - Available downloads

Title: PowerPipe Disguised as Ventilation Grate

Size	Resolution	(Right-click: Save link as...)
196.77 KB	1121x900	PP_Hidden_Theater.jpg

MISC.ELBOW.004 - Available downloads

Title: PowerPipe under outdoor BBQ

Size	Resolution	(Right-click: Save link as...)
154.13 KB	480x480	PT_under_BBQ.jpg

MISC.ELBOW.004 - Available downloads

Title: PowerPipe Outdoors

Size	Resolution	(Right-click: Save link as...)
166.21 KB	1200x900	under_stair_deck_3.jpg
166.21 KB	1200x900	under_stair_deck_3.jpg

MISC.ELBOW.004 - Available downloads

Title: Powerpipe in a marine installation with custom wood grille

Size	Resolution	(Right-click: Save link as...)
82.76 KB	675x900	powerpipe-marine-1.jpg

Expand Collapse

Category FAQs

Answer:

We get at least one question per week about making a powerpipe tube longer or shorter, and ask if it is possible, or what the ramifications would be. It is important to realize that a powerpipe subwoofer is a completely integrated design including the transducer, enclosure and the tube, or port – it is a sophisticated tuned system. With that in mind, let’s look at how the tube, or port length, affects the performance. Powerpipes are a bandpass system, meaning their frequency response has a bandpass shape with a low frequency cutoff and a high frequency cut off.

In the graph below, the red curve is a perfectly tuned powerpipe. The 1W sensitivity is about 89dB, the lower -3dB point is around 25Hz and the upper -3dB point is 90 Hz – perfect for a subwoofer.

The two additional curves show the affect of using a tube which is half the correct length and twice the correct length. The longer tube (black curve) tunes the system much lower so some efficiency is lost, the lower cutoff has moved down, but so has the upper, and shape has tilted. The shorter tube (blue curve) has the opposite effect, raising the lower cutoff and raising the upper cutoff, while also raising the efficiency. Again, the curve is tilted but in the opposite direction. One thing not shown in the simulation is how much port noise is created in each tuning and at what frequency – so guessing which has the least audible affect is difficult.

So even though the tube lengths have been drastically altered, with judicial use of EQ and additional amplifier power, these 2 modified tubes might still be acceptable in an installation, so if you have no choice but to shorten or lengthen a tube by 50%, it might still work for you. But we recommended about a ±6-inch change to the tubes provided, which is always less than a 50% change.

If you need to run a very long distance, we can modify the port diameter and possibly get you the performance you need – please call the engineering group for more information.
