SPL5Q-CS

5.25", Centergy Pair, SoundBar 3.5" Depth

Technology header click
Tags:

The SPL5Q-CS SoundBar sets new levels in sound output and wide frequency response. James Loudspeaker has taken their proprietary quad-tweeter technology from the BE reference series and scaled it down to a compact array of four 0.75” (19mm) aluminum dome tweeters to provide a wide dispersion angle. When combined with James Loudspeaker's high output 5.25” (133mm) woofers, the SPL5Q-CS has a remarkable 89dB sensitivity with bass down below 65Hz, delivering high efficiency, low distortion, and crisp clear audiophile sound. Designed to use centergy technology, this SoundBar pair combines a right and left channel in either bar with a center channel split between the two, perfect for applications where 3 channels are needed, but the available space is only to the sides of the TV. The cabinet design features all aircraft grade aluminum for strength, sonic performance, and suitability for outdoor/marine applications. Complete with a custom fit and colored aluminum perforated grille, this bar mounts directly to any TV. James custom fits each bar to fit your TV perfectly to seamlessly integrate this speaker into any entertainment system, delivering a subdued visual effect, designed to be as unobtrusive as possible. Also available for wall mounting or configurable for other custom applications, this SoundBar combines high quality audio with elegant design for the perfect home entertainment solution. Custom TV mounting brackets for CS pair SoundBars must be purchased separately (PL-B-CUSTOM). Blind through holes are incorporated into each bar for wall mounting.

For outdoor/marine applications, order the SPL5Q-CS-M.

Specifications
Frequency Response

65Hz-24kHz +/-3dB

Nominal Impedance

8 ohms (Center channel 4/8 ohms - Config. Dependent)

Sensitivity

89dB 2.83V/1m

Recommended Power Range

25 - 150W

Woofer

(3) 5.25" (127mm) Aluminum

Tweeter

(8) 0.75" (19mm) Aluminum

Enclosure

Aircraft Marine Grade Aluminum

Finishes

Studio Black, Satin Black, Gloss Black, Dark Titanium, Light Titanium, Mirror Silver

Width

5.75 in (146.05 mm)

Depth

3.5 in (88.90 mm)

Height

Custom / (22.5-inch minimum length)

Product Documents

Related Documents

Click photo for download image options

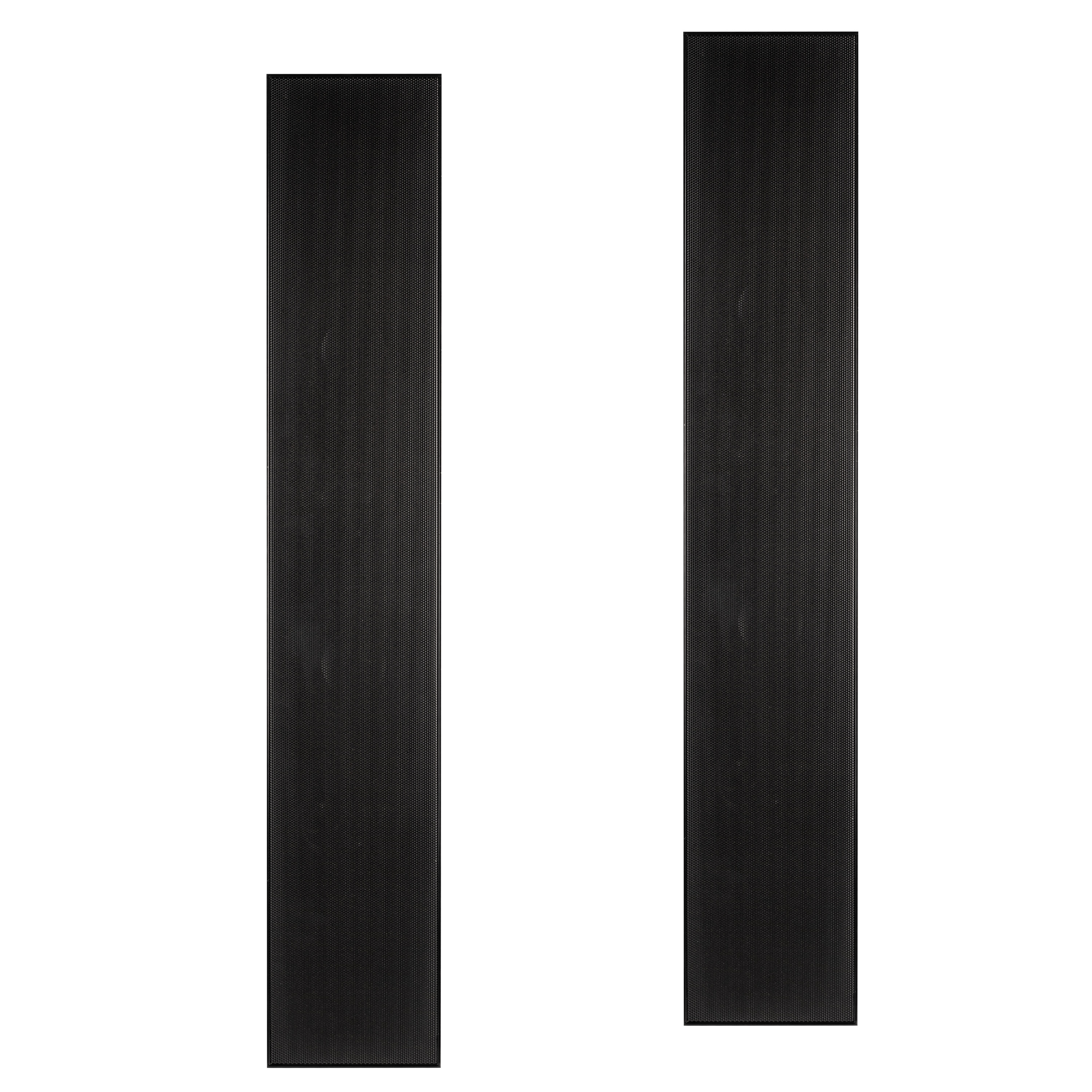

Spl5q cs front view

SPL5Q-CS - Available downloads

Title: SPL5Q-CS pr. front

Spl5q cs front view
Size Resolution (Right-click: Save link as...)
36.45 KB 900x900 SPL5Q-CS-front-view.jpg

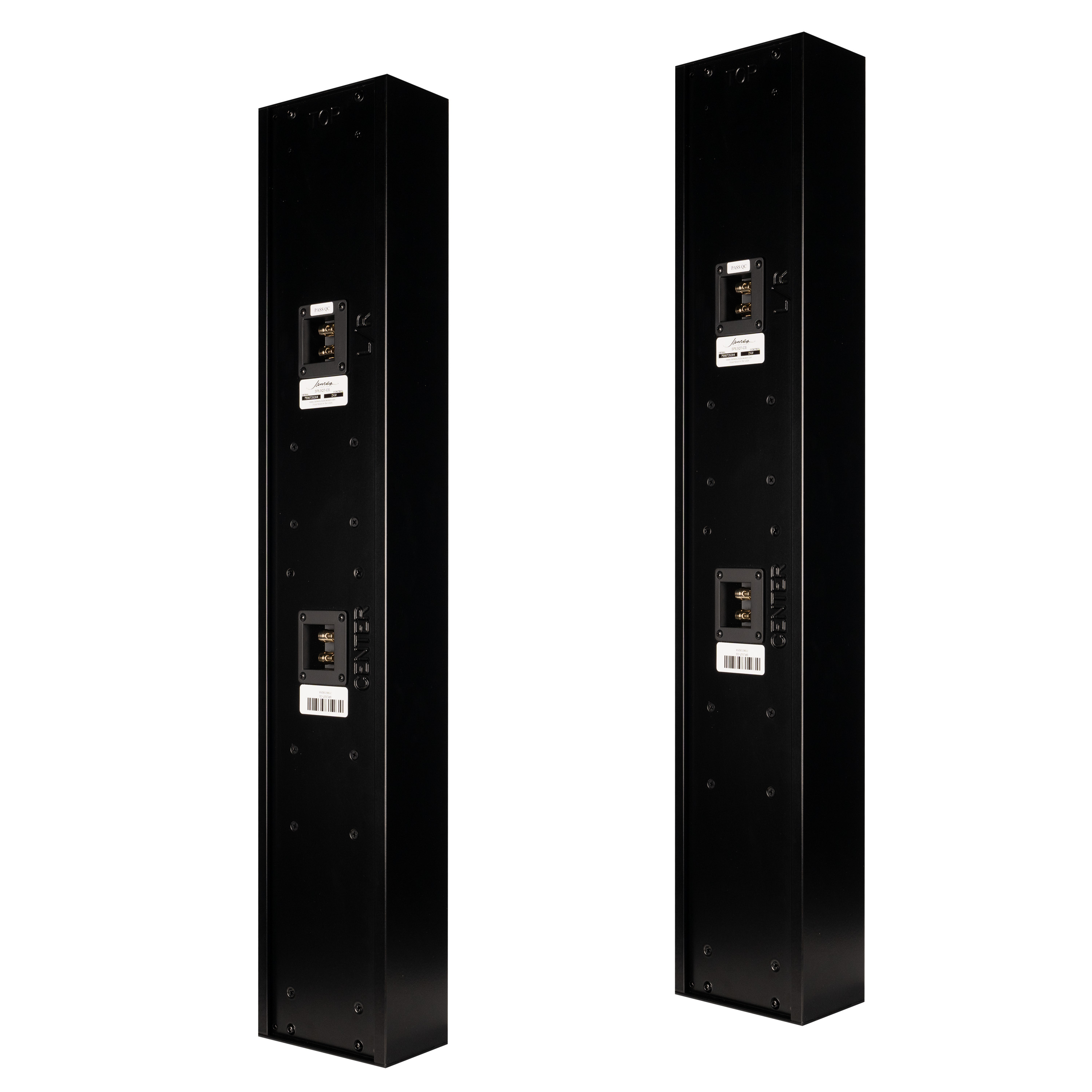

Spl5q cs back view
