AL32

3" 2-Way Bookshelf - All Aluminum

This product has been discontinued
Technology header click
Tags:

James Loudspeaker introduces the ultimate indoor/outdoor speakers. The performance is fabulous. It’s the same James sound you’ve come to expect. Solid aluminum enclosures and all weather high excursion 3” woofers and 1” neodymium soft dome tweeters ensure years of enjoyment in or out of doors. Designed for easy installation just about anywhere you want great sound. Available in both 8 ohm (32AL) or 70 volt (32AL70) versions. Keyhole mounts on rear. NOTE: Wall brackets are not included. U-brackets are available, must be specified at time of order.

Specifications
Frequency Response

80Hz-22kHz +/-3dB

Nominal Impedance

8 ohms

Sensitivity

85dB 2.83V/1m

Recommended Power Range

25 - 100W

Woofer

(1) 3" (76mm) High Excursion

Tweeter

(1) 1" (25mm) Neodymium Soft Dome

Enclosure

Aircraft Marine Grade Aluminum

Finishes

Gloss Black, Gloss White, Custom

Width

4 in (101.60 mm)

Depth

4.5 in (114.30 mm)

Height

7.375 in (187.32 mm)

Grille Height

7.375 in (187.32 mm)

Grille Width

4 in (101.60 mm)

Product Documents

Related Documents

Click photo for download image options

32al

AL32 - Available downloads

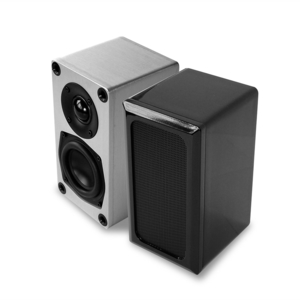

Title: 32AL front

32al
Size Resolution (Right-click: Save link as...)
165.71 KB 900x900 32AL.jpg
Rock wall 8

AL32 - Available downloads

Title: 33AL In Rock Wall

Rock wall 8
Size Resolution (Right-click: Save link as...)
208.99 KB 1001x900 rock-wall-8.jpg
