The James Loudspeaker 2.1 Format L/R/SUB sound bars produce left and right-channel audio as well as bass energy from a center-mounted built-in subwoofer. These L/R/SUB format sound bars, which can be customized to match nearly any flat-panel display, are ideal for bringing clarity and full-range sound to applications where an external subwoofer is impractical.

The James Loudspeaker L/R/SUB sound bars are ideally suited for boardrooms, conference rooms, lobbies, retail showrooms and nightclubs, as well as residential applications such as bedrooms or other zones where a flat-panel TV is present but surround sound is not required. Currently available in the company’s SPL5 and SPL6 Series sound bars, the L/R/SUB versions offer high-output, superb clarity and bass extension below 60Hz from nearly any size form factor. The 2.1 configuration of the L/R/SUB sound bars make them a perfect match to the James Loudspeaker A2.1 three-channel amplifier, which features onboard crossovers and independent controls for easy system calibration.

James Loudspeaker sound bars are built from elegant aircraft-grade aluminum for strength, sonic performance and durability when used for outdoor or marine applications. Each sound bar features proprietary aluminum cone woofers and either aluminum or beryllium dome quad tweeters for unsurpassed dispersion and musicality. All L/R/SUB sound bars can be custom fit and painted to match any display or décor. Each bar comes with a matching aluminum perforated grille. L/R/SUB sound bars can be mounted directly to any TV for a seamless presentation or wall-mounted using available brackets. Like all products from James Loudspeaker, L/R/SUB 2.1 sound bars are fully customizable to suit any commercial or residential application. For wall mounting, optional Z-brackets or U-brackets can be purchased separately. Blind through holes are incorporated into each bar for wall mounting.

For outdoor/marine applications, order the SPL5Q-LRSUB-M.

Product Documents

• CAD drawings

  • SPL5Q-LRSUB CAD Drawing (PDF)
  • SPL5Q-LRSUB CAD Drawing (DWG)

• Datasheets/Cutsheets

  • SPL5Q-LRSUB Datasheet

• Installation Guides and Info

  • Through-Hole Installation Guide
  • BRK.Z Installation Guide

• Manuals

  • Paintable Grille Instructions

Related Documents

• Brochures

  • Full Line Brochure

Click photo for download image options

SPL5Q-LRSUB - Available downloads

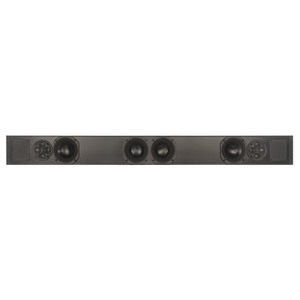

Title: SPL5QLR-S Front No Grille

Size	Resolution	(Right-click: Save link as...)
25.59 KB	900x900	SPL5Q-LRSUB-front-no-grille.jpg

SPL5Q-LRSUB - Available downloads

Title: SPL5Q-LRSUB Grille

Size	Resolution	(Right-click: Save link as...)
18.39 KB	900x900	SPL5Q-LRSUB-front-with-grille.jpg

SPL5Q-LRSUB - Available downloads

Title: SPL5Q-LCR back

Size	Resolution	(Right-click: Save link as...)
25.27 KB	900x900	SPL5Q-LCR-back.jpg

SPL5Q-LRSUB - Available downloads

Title: SoundBar & QX320 Installation

Size	Resolution	(Right-click: Save link as...)
91.64 KB	1108x900	SoundBar-_-QX-inwall.jpg
