AT85QTi-BA

8" Woofer, High output, 3-Way, AT Outdoor Tower Loudspeaker (Bi-amp only)

Technology header click
Tags:

The new James Loudspeaker AT85QTi-BA is a high-performance tower speaker designed to deliver concert-level performance outdoors. The AT85QTi-BA features a titanium quad array tweeter for wide dispersion and crisp fidelity. It includes dual 6.5” woofers for detailed midrange and its sealed bass enclosure with dual 8” subwoofers is bi-amped for a smooth and powerful bass response. Their robust engineering and design allow the James Loudspeaker AT Outdoor Tower speakers to effortlessly deliver high SPL playback over extended periods of time.

The "BA" in the AT85QTi-BA model number designates this as a bi-amplifiered design so 2 channels of amplification are required for every speaker.  Bi-amplification allows for more power delivery and maximum output capabilities.

Any AT Outdoor Tower speaker can be installed using our internal mount (a beautifully hidden mounting solution for permanent installation into hardscape), or external mount (a wider mounting plate, best suited for permanent landscape installations, or for moveable hardscape installations). For simplified installation and configuration, James Loudspeaker offers optional custom wiring harnesses. The speaker also has access through the front grille for easy in-field servicing.

This model can be ordered with two base mounting options.  For use on flat surfaces, landscape areas and burial applications, a large base version (external mount) is available as the model AT85QTi-BA-EM.  For a smaller footrprint for when the speaker will be fastened to a hardscape, an internal mount base can be ordered as the AT85QTi-BA-IM. This option requires fastening to the surface.

Each AT Outdoor Tower may be ordered in low impedance or 70V configurations. Can be built to custom height, up to 96” (50” minimum). Available in 10 standard finishes or infinite custom finishes options.

ORDER NUMBERS:
AT85QTi-BA-IM / AT85QTi-BA-IM-70 - internal mount (hidden base) 4ohm or 70V
AT85QTi-BA-EM / AT85QTi-BA-EM-70 - external mount (large base) 4ohm or 70V

Specifications
Frequency Response

30Hz - 24kHz

Nominal Impedance

Subwoofer: 4 Ohms
Woofer/Tweeter: 4 Ohm
(70V Option Available)

Sensitivity

95dB 2.83V/1m

Recommended Power Range

Subwoofer: 250W-750W
Woofer/Tweeter: 100W-300W

(When wired for 70V)
Subwoofer (70V): 200W
Woofer/Tweeter (70V): 100W

Subwoofer

(2) 8" Aluminum

Woofer

(2) 6.5" Aluminum

Tweeter

(4) 1" (25mm) Titanium Tweeters in Quad-array

Enclosure

Aircraft Marine Grade Aluminum

Finishes

Marine Powder Coat in 10 Standard Colors, Custom Optional

Input Connector/Terminal

(2) M19 dual-pin female waterproof connectors

Width

10" x 7.3" elliptical

Height

Externally Mounted: 50.25" (with feet)
Internally Mounted: 50"
(Customizable up to 96”)

Supplied Accessories

(2) ATE2-1M1P cables

Click photo for download image options

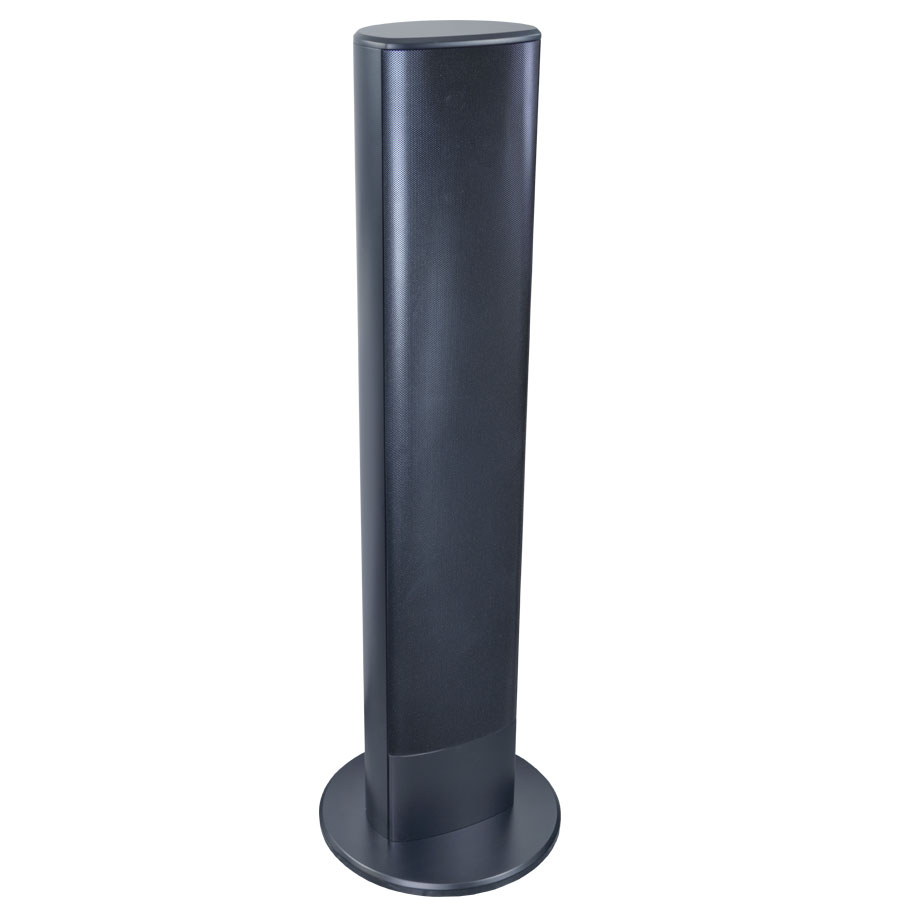

At85qti ba with grille

AT85QTi-BA - Available downloads

Title: AT85QTi-BA-EM

At85qti ba with grille
Size Resolution (Right-click: Save link as...)
33.47 KB 900x900 AT85QTi-BA-With-Grille.jpg

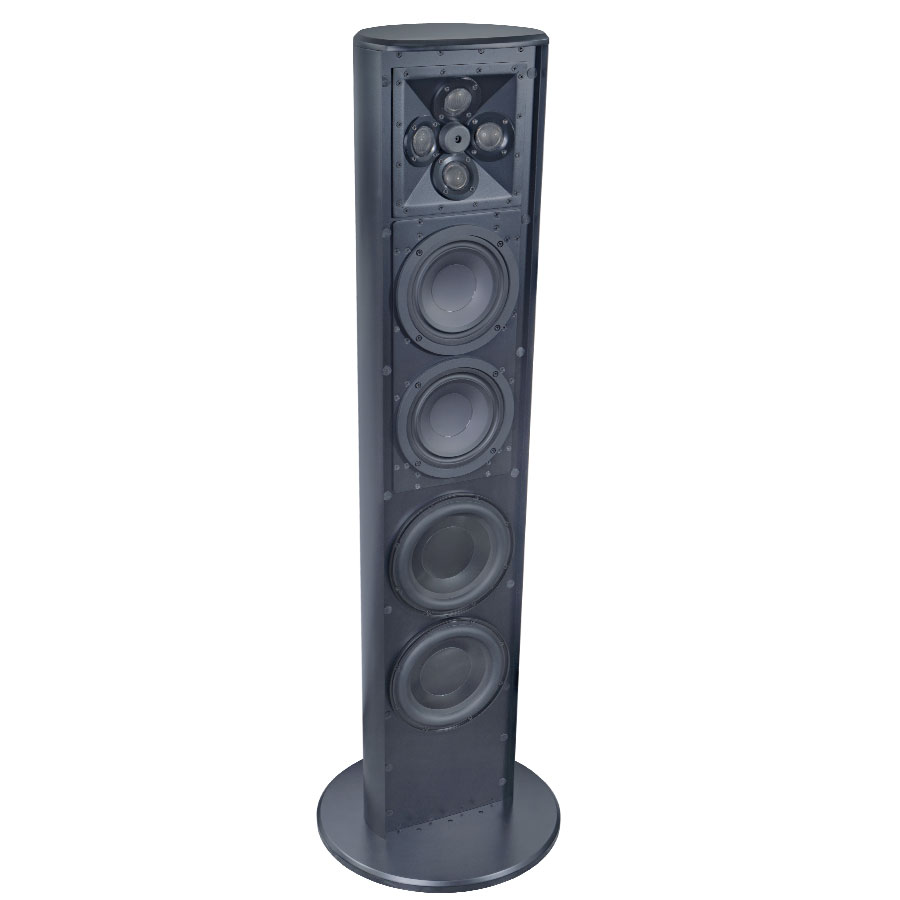

At85qti ba no grille

AT85QTi-BA - Available downloads

Title: AT85QTi-BA-EM No Grille

At85qti ba no grille
Size Resolution (Right-click: Save link as...)
40.96 KB 900x900 AT85QTi-BA-No-Grille.jpg

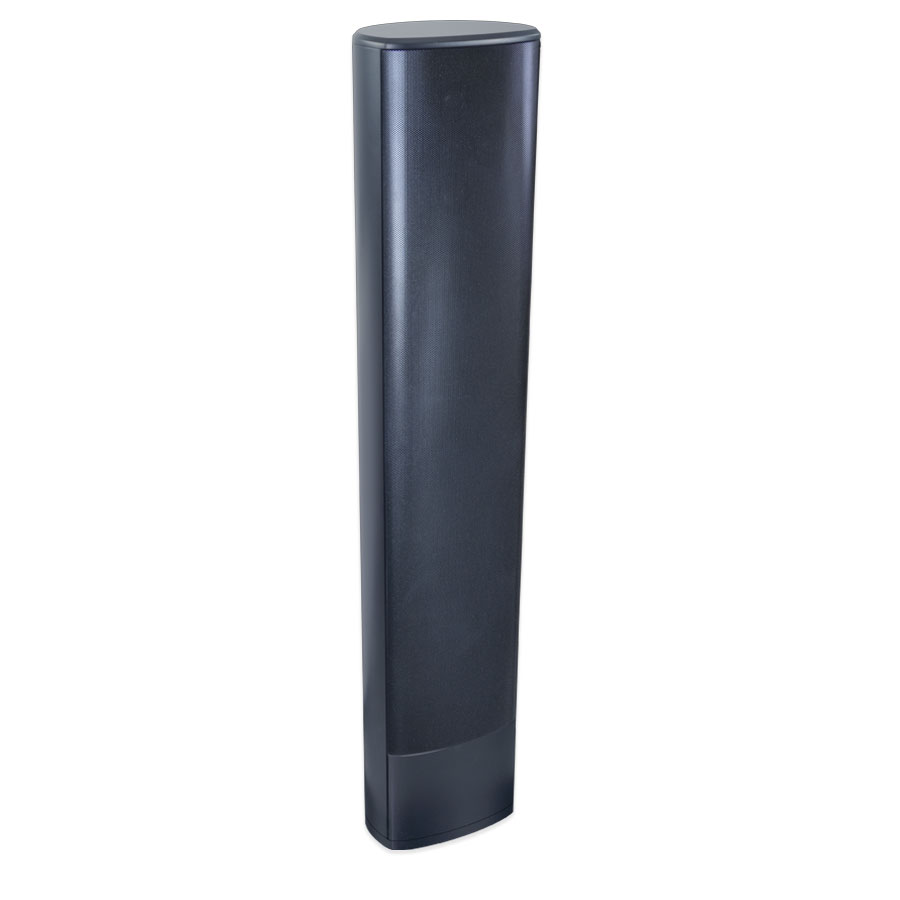

At85qti ba im

AT85QTi-BA - Available downloads

Title: AT85QTi-BA-IM

At85qti ba im
Size Resolution (Right-click: Save link as...)
29.34 KB 900x900 AT85QTi-BA-IM.jpg
