OT84-4

8" Woofer, 3-Way, High Output, Full-Range, Outdoor Tower Loudspeaker

Technology header click
Tags:

The new James Loudspeaker OT84-4 is a high-performance tower speaker designed to deliver concert-level performance outdoors. The OT84-4 features a 6.5" coaxial midrange with a 1" aluminum dome tweeter, and an 8" woofer with an 8" passive radiator for outstanding bass performance down to 35 Hz.  All seemlessly integrated into a full-range design with a precision multi-elment passive network. Their robust engineering and design allow the James Loudspeaker Outdoor Tower speakers to effortlessly deliver high SPL playback over extended periods of time.

Any Outdoor Tower speaker can be installed using our internal mount (a beautifully hidden mounting solution for permanent installation into hardscape), or external mount (a wider mounting plate, best suited for permanent landscape installations, or for moveable hardscape installations). For simplified installation and configuration, James Loudspeaker offers optional custom wiring harnesses. The speaker also has access through the front grille for easy in-field servicing.

This model includes the OT-BRK-EM, external mount for use on flat surfaces, landscape areas and burial applications. For a smaller footrprint when the speaker will be fastened to a hardscape, please order the optional internal mount, OT-BRK-IM. This option requires fastening to the surface.

Can be built to custom height, up to 96” (32” minimum). Available in 10 standard finishes or infinite custom finishes options.

ORDER NUMBERS:
OT84-4 (Loudspeaker, ships with included OT-BRK-EM)

OT-BRK-IM internal mount (hidden base, optional)
OT-BRK-EM external mount (large base, included)

Specifications
Frequency Response

35Hz - 20kHz +/-3 dB

Nominal Impedance

4 ohms

Sensitivity

90 dB 2.83V/1m

Recommended Power Range

75-300W

Woofer

(1) 8" high power aluminum,
(1) 8" high-excursion aluminum passive radiator

Tweeter

(1) Aluminum 1" (25mm) dome

Enclosure

Marine Grade Aluminum

Finishes

Marine Powder Coat in 10 Standard Colors, Custom Optional

Width

10 in (254.00 mm)

Depth

7.3 in (185.42 mm)

Height

31 in (787.40 mm) 31.25" with base

Product Documents

Related Documents

Click photo for download image options

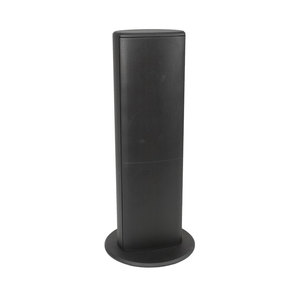

Ot84 4 isometric with grille

OT84-4 - Available downloads

Title: OT84-4 iso with grille

Ot84 4 isometric with grille
Size Resolution (Right-click: Save link as...)
28.29 KB 900x900 OT84-4-isometric-with-grille.jpg
Ot84 4 isometric no grille

OT84-4 - Available downloads

Title: OT84-4 iso no grille

Ot84 4 isometric no grille
Size Resolution (Right-click: Save link as...)
34.16 KB 900x900 OT84-4-isometric-no-grille.jpg
Ot84 4 hero shot no grille

OT84-4 - Available downloads

Title: OT84-4 hero no grille

Ot84 4 hero shot no grille
Size Resolution (Right-click: Save link as...)
35.25 KB 900x900 OT84-4-hero-shot-no-grille.jpg
