SA853QT-9

SA853QT-9 Ultra-High Output Small Aperture Speaker with Quadratech

Technology header click
Icon caliper revc
Sa853qt web.003
Tags:

James Small Aperture® Ultra-High Output Full-Range speaker now features the NEW James Quadratech tweeter design. The James Small Aperture® ceiling/in-wall speaker features a 8.5” round or 7”x 7” square sound aperture while packing a full 3-way system experience for deep bass and wide frequency response. A seamless edge detail keeps 853 looking smart and modern yet discreet. The SA853QT-9 includes a mini 8” PowerPipe subwoofer, 5.25” midrange, and Quadratech tweeter for exceptional performance, dispersion, and experience. Having a real subwoofer allows the system to play  rich, deep bass and high SPL.

The all aircraft-grade aluminum construction and modular design provide long life, easy service, and high reliability. The SA853QT-9 is bi-amped and has a small footprint with a 9” depth, best suited for in-ceiling mounting.

Order woofer enclosure, mid-range Quadratech module, and grille kits separately. Custom and wood trim kits available and quoted individually.

This model of Small Aperture ships with a 16" stud bay bracket as standard. The 16" stud bay bracket can collapse down to 10” and expand to 16”. An optional 24" stud bay bracket can be ordered (range of 14"- 24"). If the 24" bracket is required, please specify at the time of order.

This speaker can be ordered in 70V which will include a 50W transformer on the mid/high and a 100W transformer for the subwoofer section. Bi-ampling still required.

Specifications
Frequency Response

37Hz-20kHz +/-3dB

Nominal Impedance

6 ohms (mid/high) / 8 ohms (sub)

Sensitivity

90dB 2.83V /1m

Recommended Power Range

Mid/High section 50W-150W Subwoofer section 100W-300W

70V Power

If ordered as 70V, 50W mid/high, 100W subwoofer

Bi-amplified only

Yes, electronic/DSP crossover required at 80 Hz

Subwoofer

(1) 8" (204mm) Aluminum

Woofer

(1) 5.25" (133mm) Aluminum

Tweeter

0.75” (19mm) four titanium domes, Ferrofluid-cooled, acoustic back chamber

Enclosure

Aluminum

Finishes

See Trim Kit Options

Width

10 in (254.00 mm)

Depth

9 in (228.60 mm)

Height

20 in (508.00 mm)

Net Weight

Sub 29 lbs, module 5 lbs, 34 lbs total

Shipping Weight

Sub 31 lbs, module 6 lbs

Product Documents

Related Documents

Click photo for download image options

Sa853qt web.003

SA853QT-9 - Available downloads

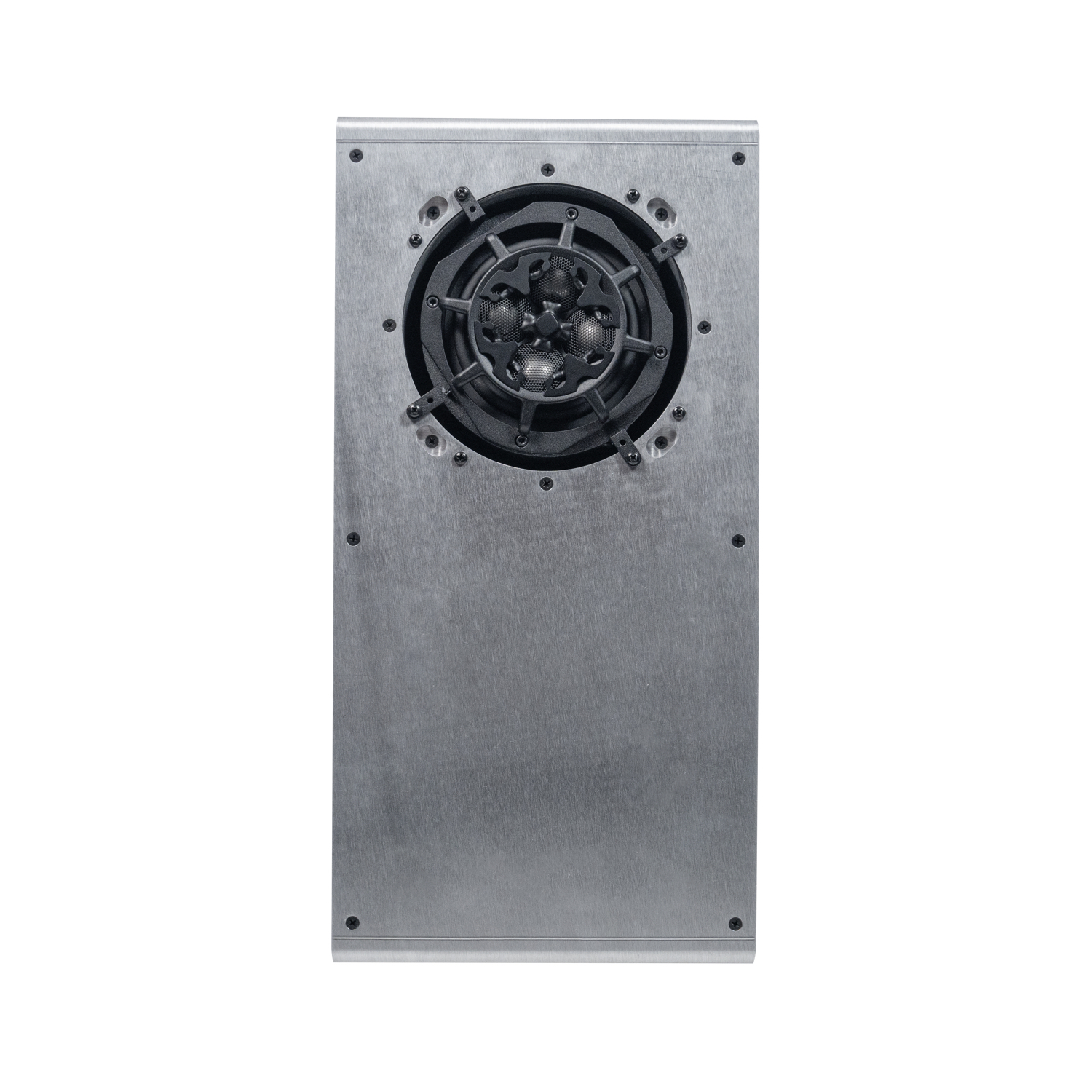

Title: SA853QT-9 ENC and MOD Front

Sa853qt web.003
Size Resolution (Right-click: Save link as...)
811.36 KB 1500x1500 SA853QT_WEB.003.jpeg
Sa853qt web.005

SA853QT-9 - Available downloads

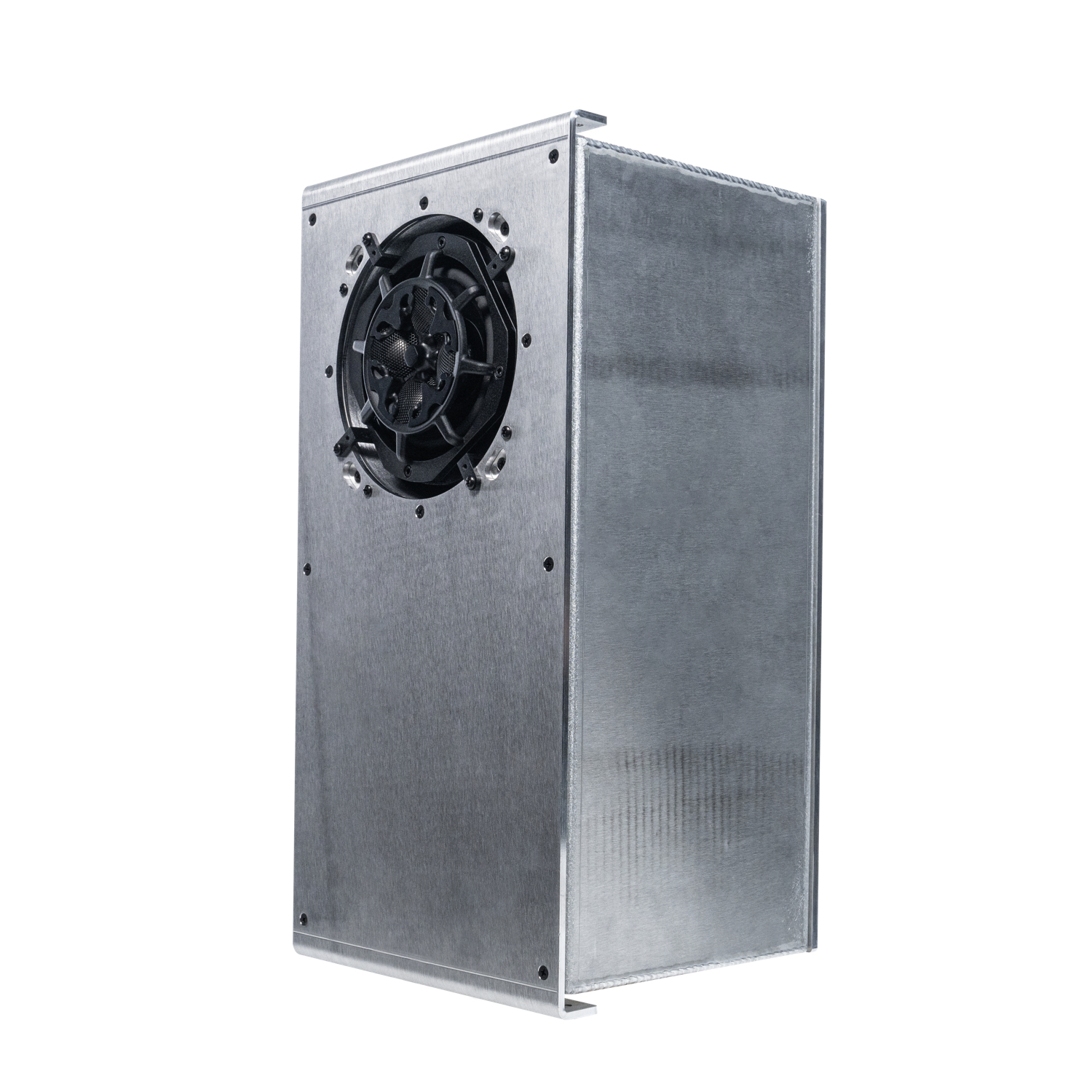

Title: SA853QT-9 ENC and MOD 45 R

Sa853qt web.005
Size Resolution (Right-click: Save link as...)
1.01 MB 1500x1500 SA853QT_WEB.005.jpeg
Sa853qt web.001

SA853QT-9 - Available downloads

Title: SA853QT-9 ENC Terminals

Sa853qt web.001
Size Resolution (Right-click: Save link as...)
783.26 KB 1500x1500 SA853QT_WEB.001.jpeg
Sa853qt web.002

SA853QT-9 - Available downloads

Title: SA853QT-9 ENC Side

Sa853qt web.002
Size Resolution (Right-click: Save link as...)
569.26 KB 1500x1500 SA853QT_WEB.002.jpeg
Sa853qt web.006

SA853QT-9 - Available downloads

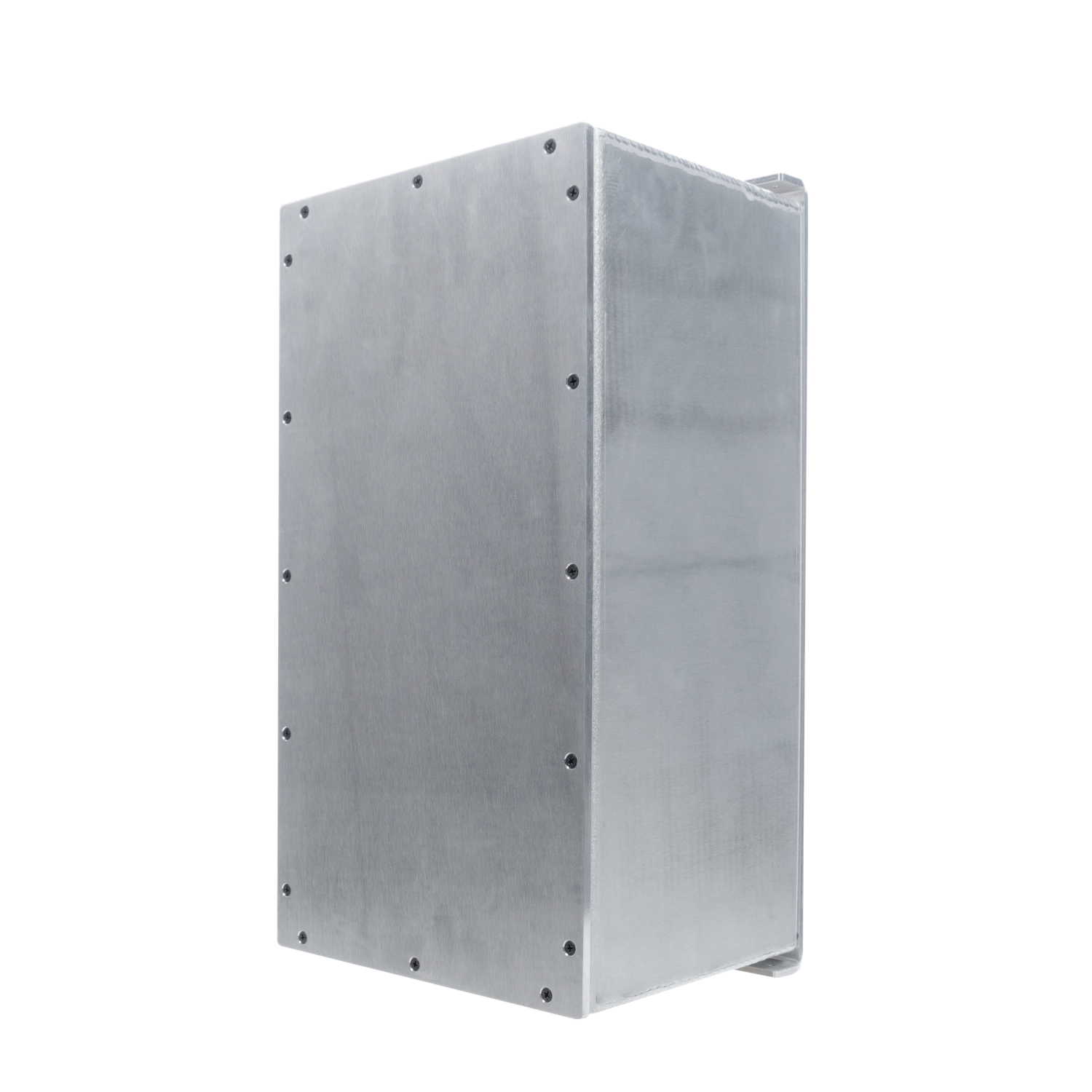

Title: SA853QT-9 ENC Back 45
