SA853QT-6

SA853QT-6 Ultra-High Output, Full-Range Small Aperture Speaker with Quadratech for Shallow 2x6 Construction

Technology header click
Icon caliper revc
Sa853qt web.017
Tags:

James Small Aperture® Ultra-High Output Full-Range SHALLOW DEPTH speaker now features the NEW James Quadratech tweeter design. The James Small Aperture® ceiling/in-wall speaker features a 8.5” round or 7”x 7” square sound aperture while packing a full 3-way system experience for deep bass and wide frequency response. A seamless edge detail keeps 853 looking smart and modern yet discreet. The SA853QT-6 includes a mini 10” PowerPipe subwoofer, 5.25” midrange, and Quadratech tweeter for exceptional performance, dispersion, and experience. Having a real subwoofer allows the system to play  rich, deep bass and high SPL.

The all aircraft-grade aluminum construction and modular design provide long life, easy service, and high reliability. The SA853QT-6 is bi-amped and has a small footprint with a 6” depth, best suited for 2x6 Stud Bay installations.

Order woofer enclosure, mid-range Quadratech module, and grille kits separately. Custom and wood trim kits available and quoted individually.

This model of Small Aperture ships with a 16" stud bay bracket as standard. The 16" stud bay bracket can collapse down to 10” and expand to 16”. An optional 24" stud bay bracket can be ordered (range of 14"- 24"). If the 24" bracket is required, please specify at the time of order.

This speaker can be ordered in 70V which will include a 50W transformer on the mid/high and a 100W transformer for the subwoofer section. Bi-ampling still required.

Specifications
Frequency Response

37Hz-20kHz +/-3dB

Nominal Impedance

6 Ohms (mid/high) / 8 Ohms (sub)

Sensitivity

90dB 2.83V/1m

Recommended Power Range

Mid/High: 50-150W Sub: 100-300W

70V Power

If ordered as 70V, 50W mid/high, 100W subwoofer

Bi-amplified only

Yes, electronic/DSP crossover required at 80 Hz

Subwoofer

(1) 10" (204mm) Aluminum

Woofer

(1) 5.25" (133mm) Aluminum

Tweeter

0.75" (19mm) four titanium domes, Ferrofluid-cooled, acoustic back chamber

Enclosure

Aluminum

Finishes

See Trim Kit Options

Input Connector/Terminal

(2) push terminals, option pigtails

Required Mounting Depth

6 in (152.40 mm)

Width

12 in (304.80 mm)

Depth

5.4 in (137.16 mm)

Height

34 in (863.60 mm)

Product Documents

Related Documents

Click photo for download image options

Sa853qt web.017

SA853QT-6 - Available downloads

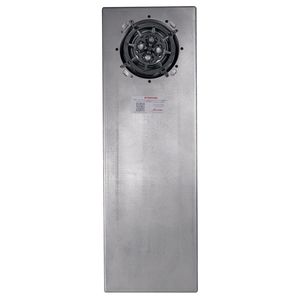

Title: SA853QT-6 ENC and MOD Front

Sa853qt web.017
Size Resolution (Right-click: Save link as...)
790.52 KB 1500x1500 SA853QT_WEB.017.jpeg
Sa853qt web.016

SA853QT-6 - Available downloads

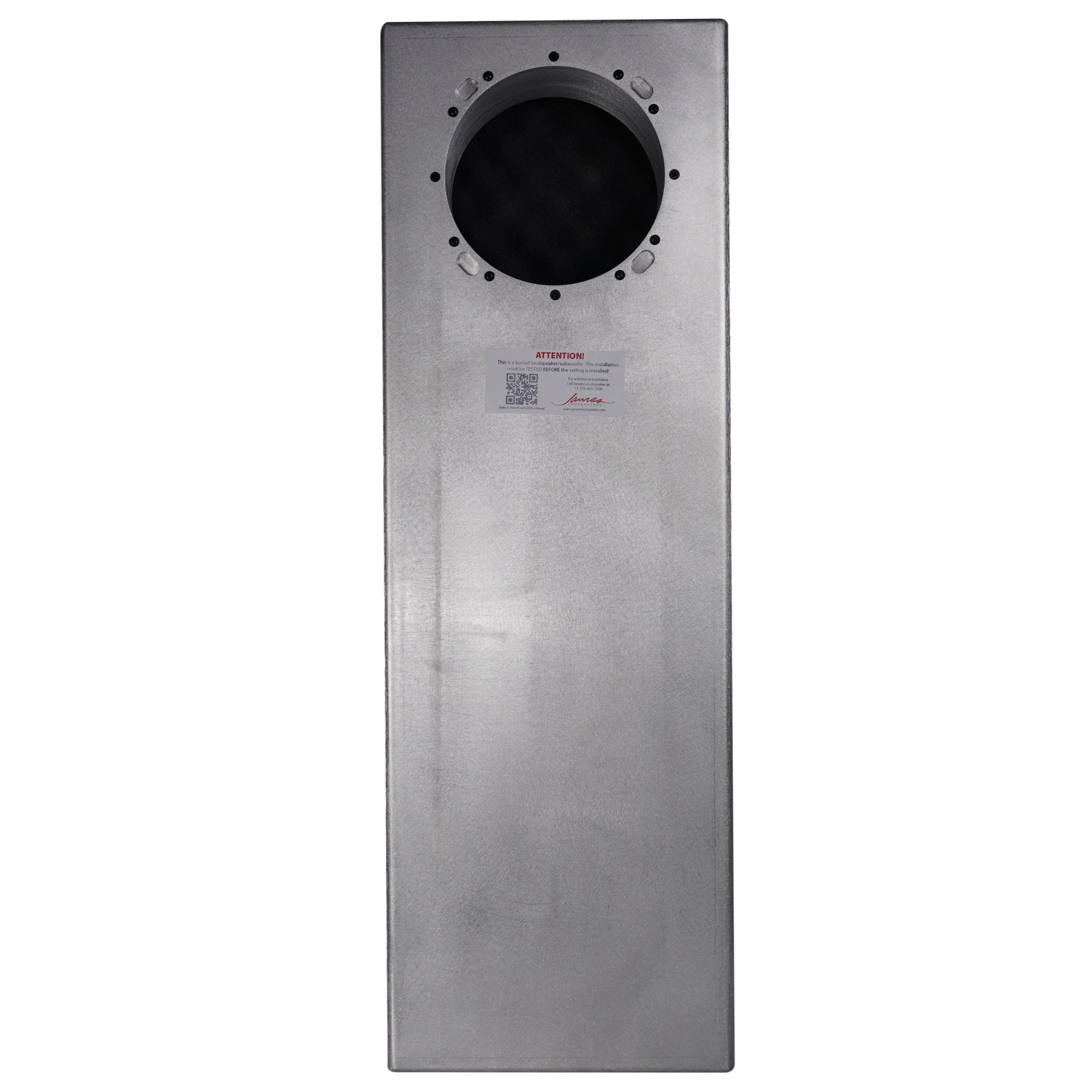

Title: SA853QT-6 ENC Front

Sa853qt web.016
Size Resolution (Right-click: Save link as...)
762.70 KB 1500x1500 SA853QT_WEB.016.jpeg
Sa853qt web.015

SA853QT-6 - Available downloads

Title: SA853QT-6 ENC Front 45

Sa853qt web.015
Size Resolution (Right-click: Save link as...)
731.17 KB 1500x1500 SA853QT_WEB.015.jpeg
Sa853qt web.012

SA853QT-6 - Available downloads

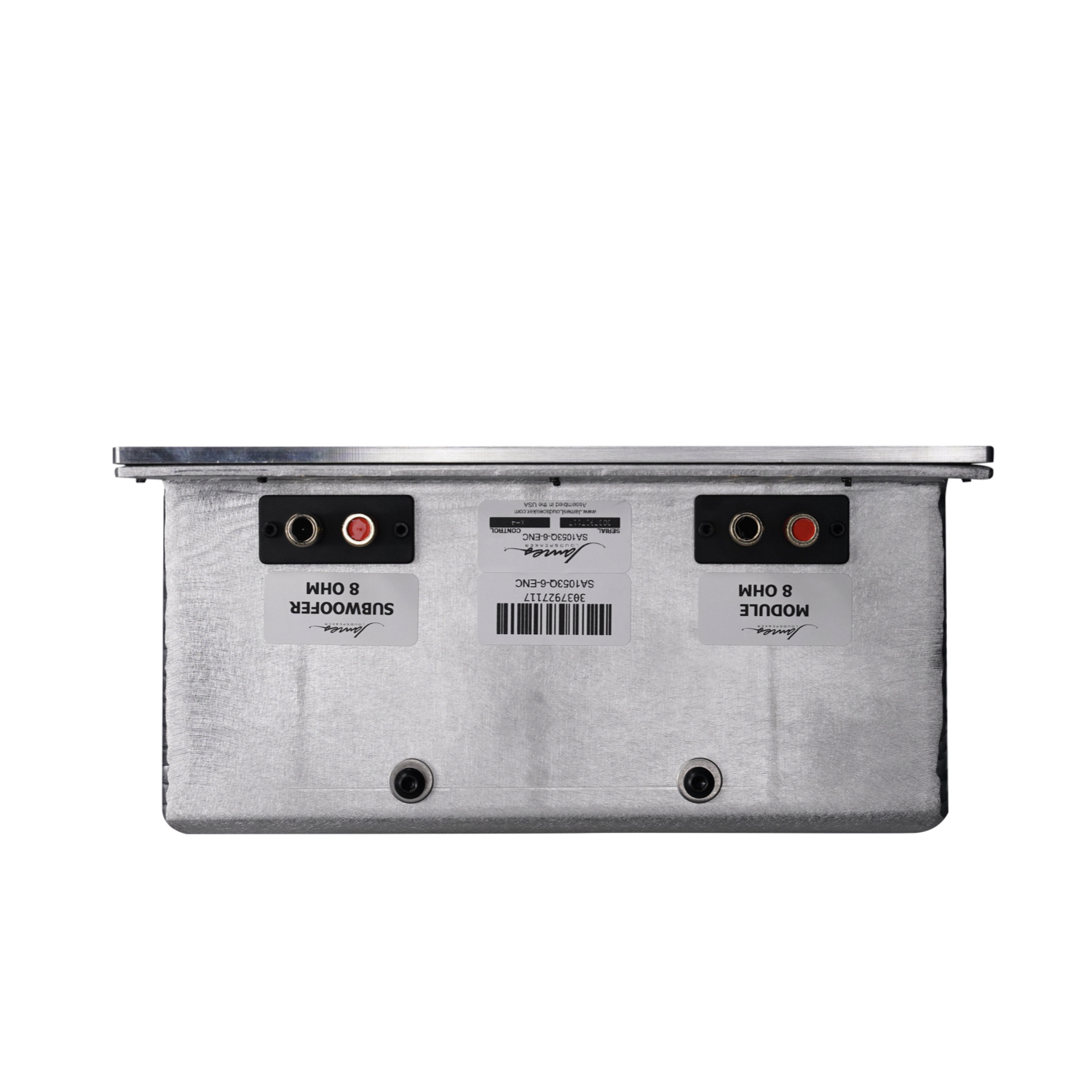

Title: SA853QT-6 ENC Terminals

Sa853qt web.012
Size Resolution (Right-click: Save link as...)
673.31 KB 1500x1500 SA853QT_WEB.012.jpeg
Sa853qt web.014

SA853QT-6 - Available downloads

Title: SA853QT-6 ENC side

Sa853qt web.014
Size Resolution (Right-click: Save link as...)
402.37 KB 1500x1500 SA853QT_WEB.014.jpeg
Sa853qt web.013

SA853QT-6 - Available downloads

Title: SA853QT-6 ENC Back

Sa853qt web.013
Size Resolution (Right-click: Save link as...)
825.72 KB 1500x1500 SA853QT_WEB.013.jpeg
Sa853qt web.008

SA853QT-6 - Available downloads

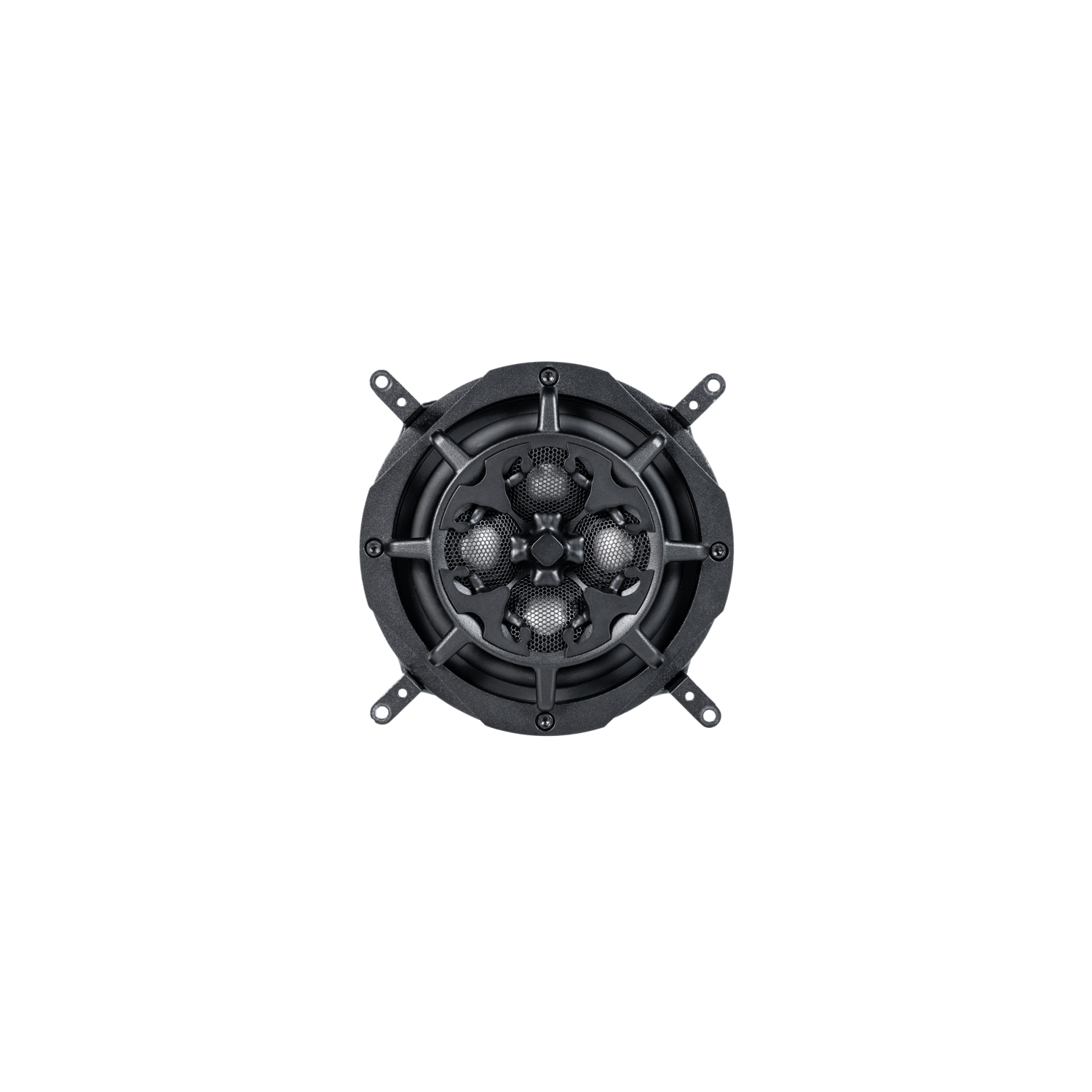

Title: SA853QT-9 MOD Front

Sa853qt web.008
Size Resolution (Right-click: Save link as...)
351.87 KB 1500x1500 SA853QT_WEB.008.jpeg
Sa853qt web.011

SA853QT-6 - Available downloads

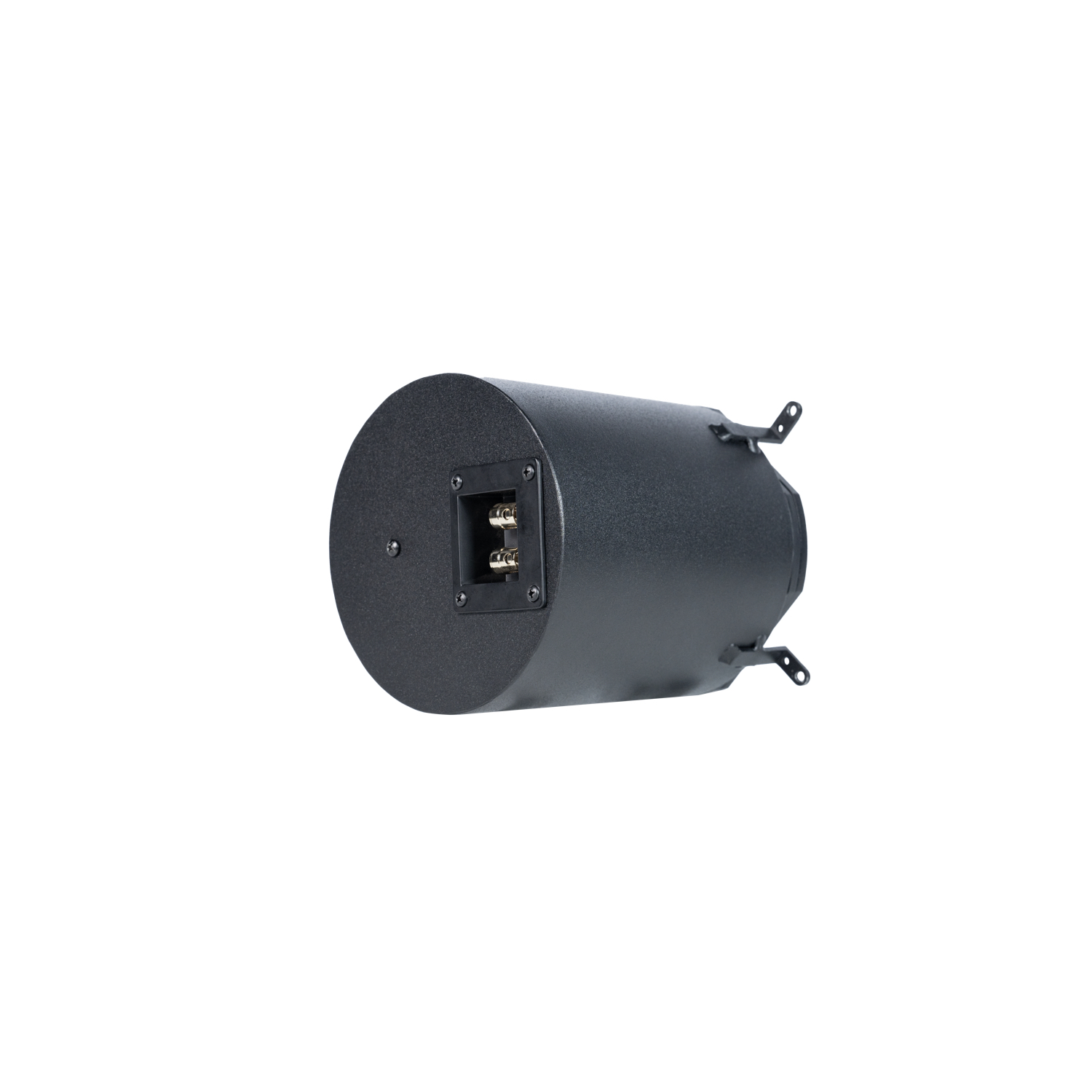

Title: SA853QT-9 MOD Back 45

Sa853qt web.011
Size Resolution (Right-click: Save link as...)
355.97 KB 1500x1500 SA853QT_WEB.011.jpeg
Sa853qt web.010

SA853QT-6 - Available downloads

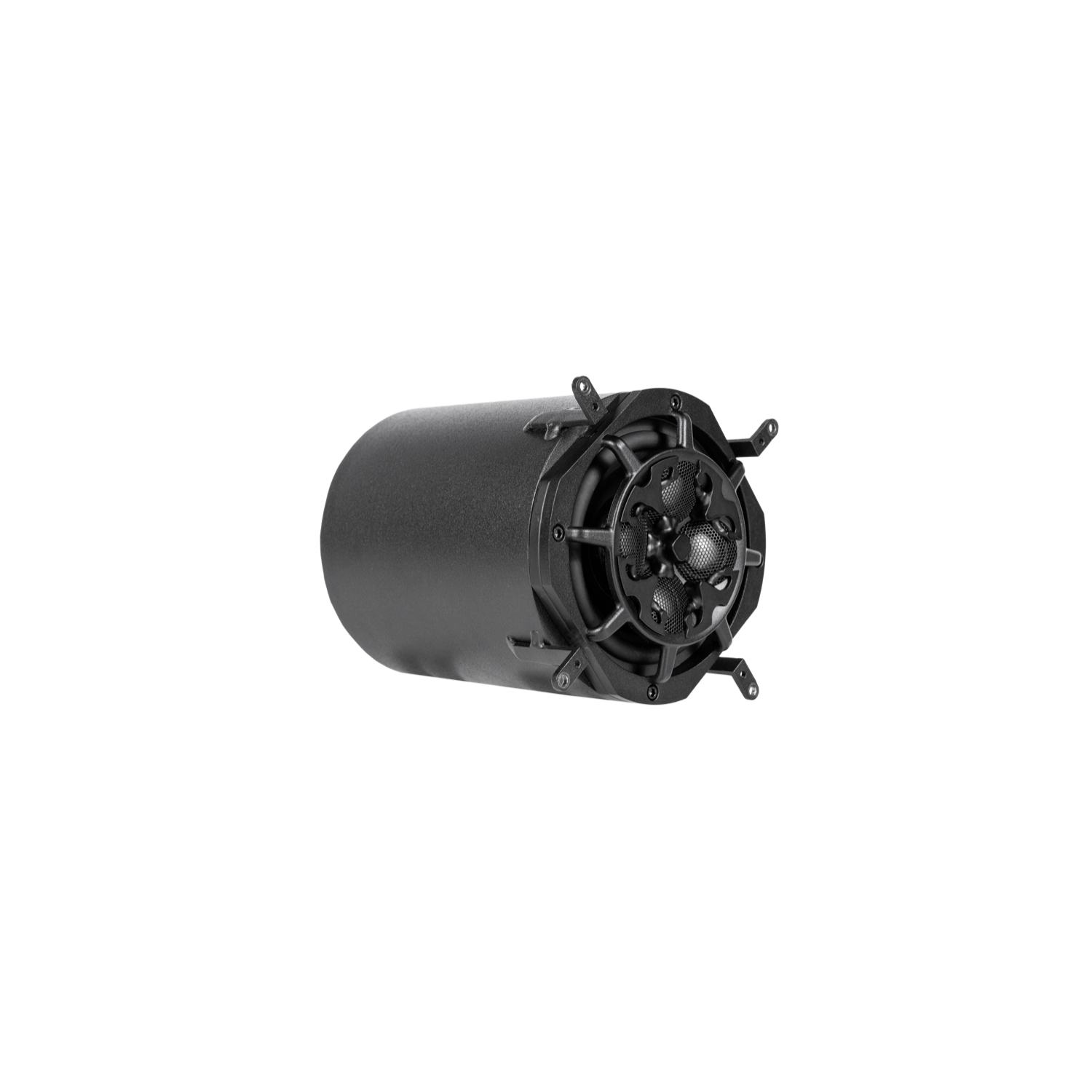

Title: SA853QT-9 MOD Front 45

Sa853qt web.010
Size Resolution (Right-click: Save link as...)
271.50 KB 1500x1500 SA853QT_WEB.010.jpeg
Sa853qt web.007

SA853QT-6 - Available downloads

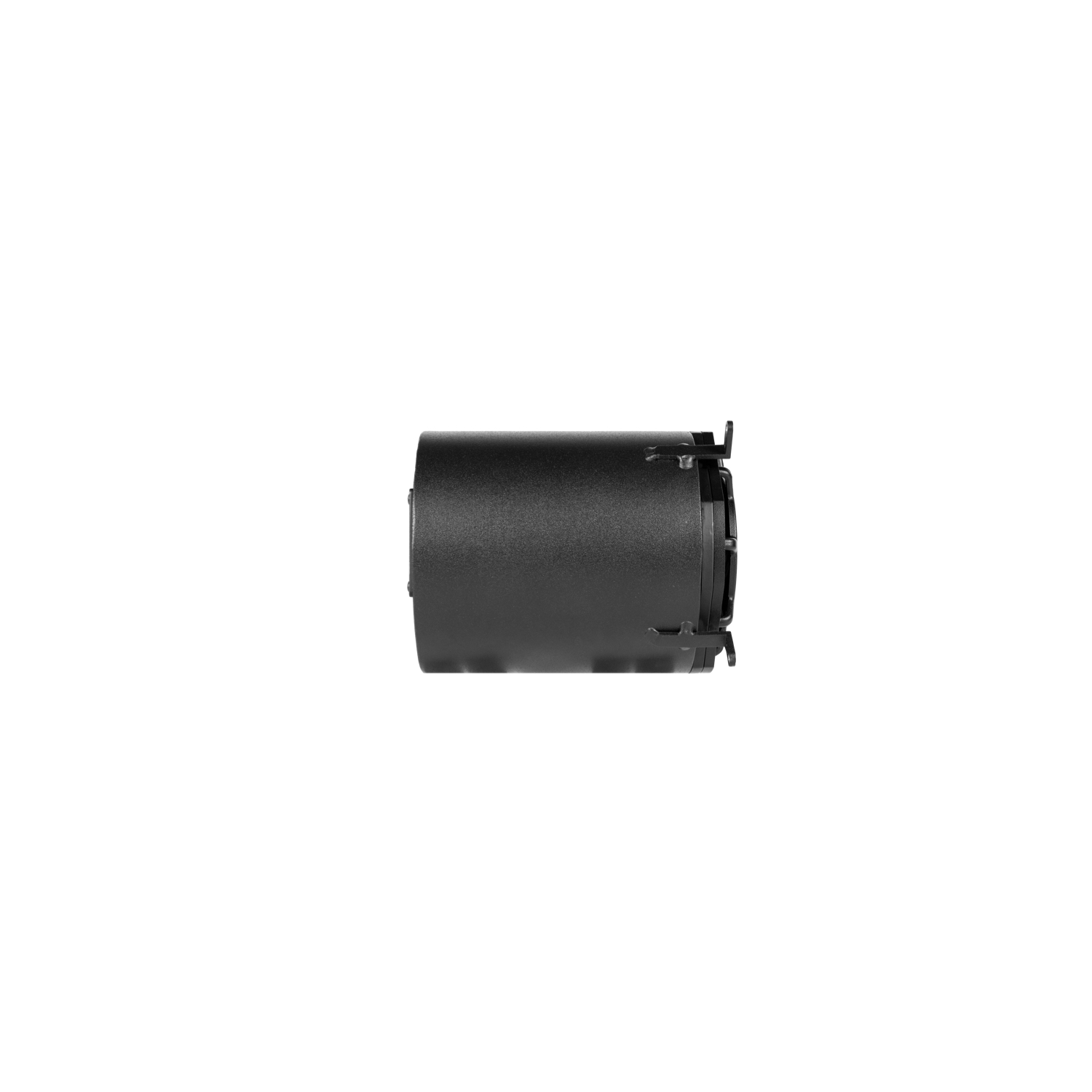

Title: SA853QT-9 MOD Side

Sa853qt web.007
Size Resolution (Right-click: Save link as...)
155.94 KB 1500x1500 SA853QT_WEB.007.jpeg
Sa853qt web.009

SA853QT-6 - Available downloads

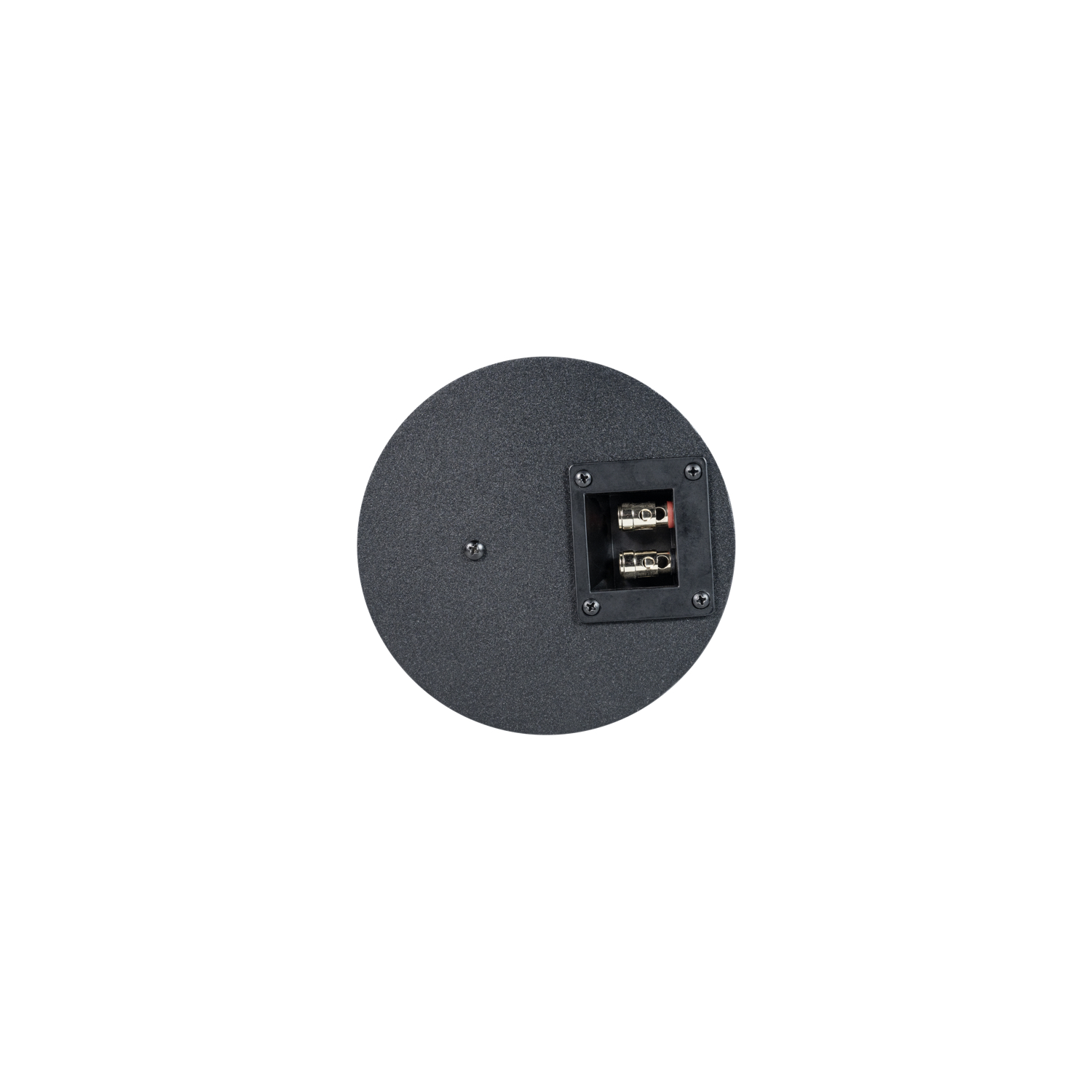

Title: SA853QT-9 MOD Back
