SPL6Q-LCR

6.5", LCR SoundBar 4" Depth, High-Output

Technology header click
Tags:

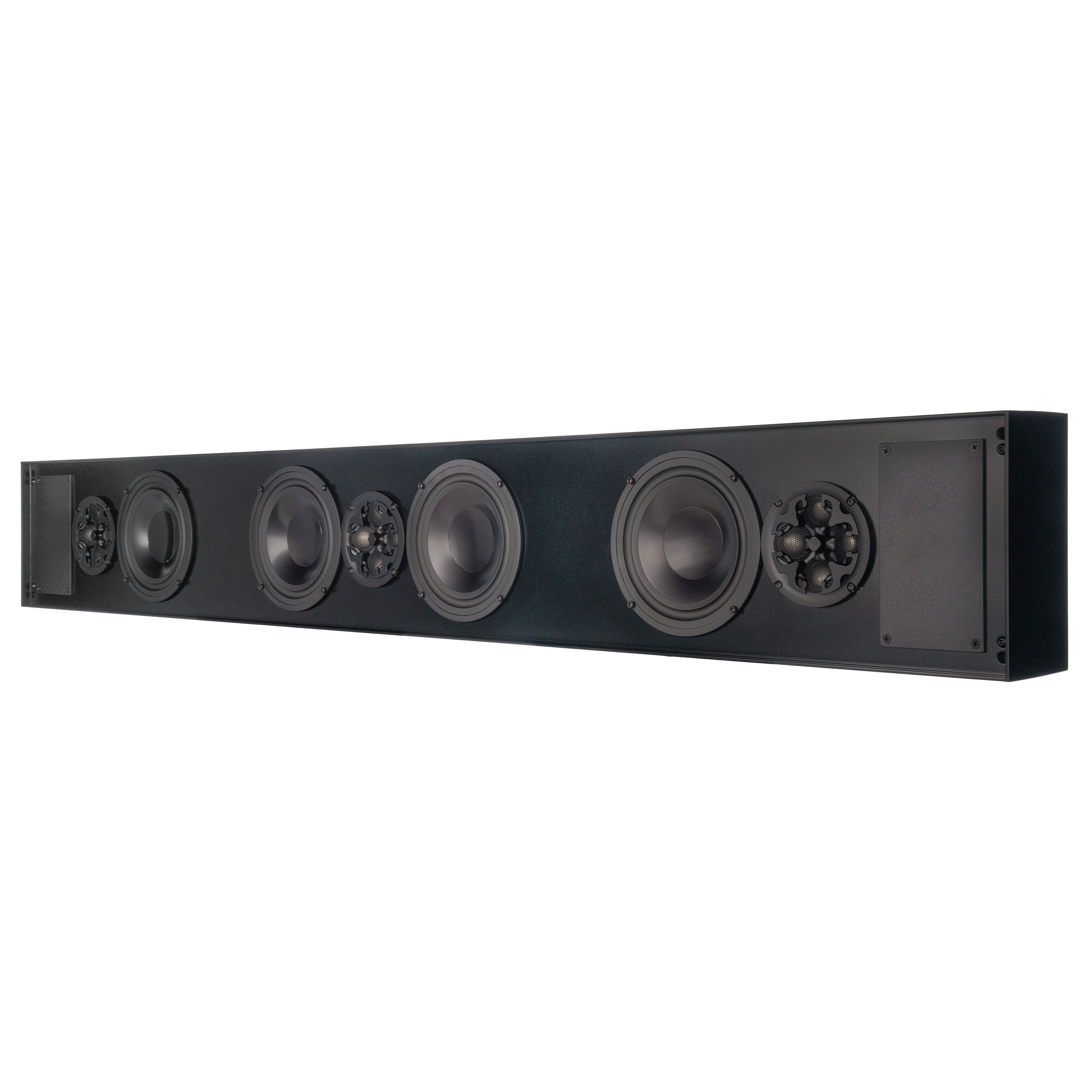

The SPL6Q-LCR raises the bar in sound output and wide frequency response. James Loudspeaker has taken their proprietary quad-tweeter technology from the BE reference series and scaled it down to a compact array of four 0.75” (19mm) aluminum dome tweeters to provide a wide dispersion angle. When combined with James’ high output 6.5” (165mm) woofers, the SPL6Q-LCR has a remarkable 91dB sensitivity with bass down below 60Hz, delivering high efficiency, low distortion, and crisp clear audiophile sound. Designed as a left, right, and center channel, the SPL6Q-LCR is perfect for any 3 channel system application. The cabinet design features all aircraft grade aluminum for strength, sonic performance, and suitability for outdoor/marine applications. Complete with a custom fit and colored aluminum perforated grille, this bar  mounts directly to any TV using our custom PL brackets or by using our universal SPL6 bracket (BRK.SPL6.UN). James custom fits each bar to fit your TV perfectly to seamlessly integrate this speaker into any entertainment system, delivering a subdued visual effect, designed to be as unobtrusive as possible. Also available for wall mounting or configurable for other custom applications, this sound bar combines high quality audio with elegant design for the perfect home entertainment solution. For wall mounting, optional Z-brackets or U-brackets can be purchased separately. Blind through holes are incorporated into each bar for wall mounting.

For outdoor/marine applications, order the SPL6Q-LCR-M.

Specifications
Frequency Response

60Hz-24kHz +/-3dB

Nominal Impedance

4/8 ohms (Config. Dependent)

Sensitivity

91dB 2.83V/1m

Recommended Power Range

50 - 200W

Woofer

(4-8) 6.5" (165mm) Low Profile

Tweeter

(12) 0.75" (19mm) Aluminum

Enclosure

Aircraft Marine Grade Aluminum

Finishes

Studio Black, Satin Black, Gloss Black, Dark Titanium, Light Titanium, Mirror Silver

Width

Custom / (Absolute Minimum Width: 47")

Depth

4 in (101.60 mm)

Height

8.125 in (206.38 mm)

Click photo for download image options

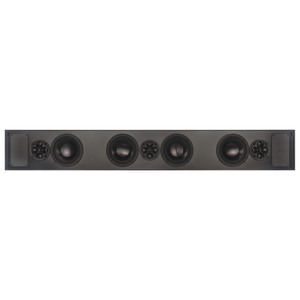

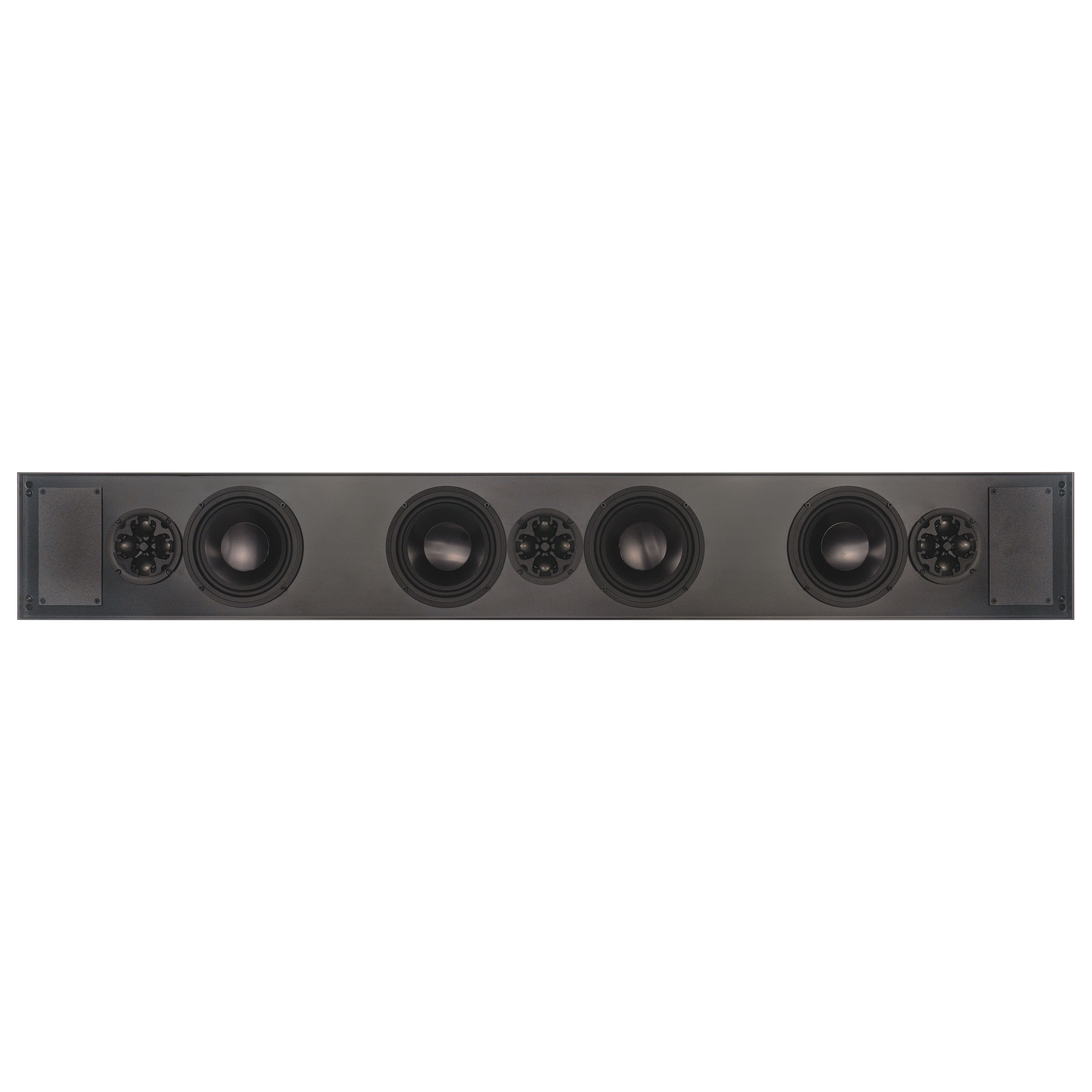

Spl6q lcr front no grille

SPL6Q-LCR - Available downloads

Title: SPL6Q-LCR front no grille

Spl6q lcr front no grille
Size Resolution (Right-click: Save link as...)
26.41 KB 900x900 SPL6Q-LCR-front-no-grille.jpg

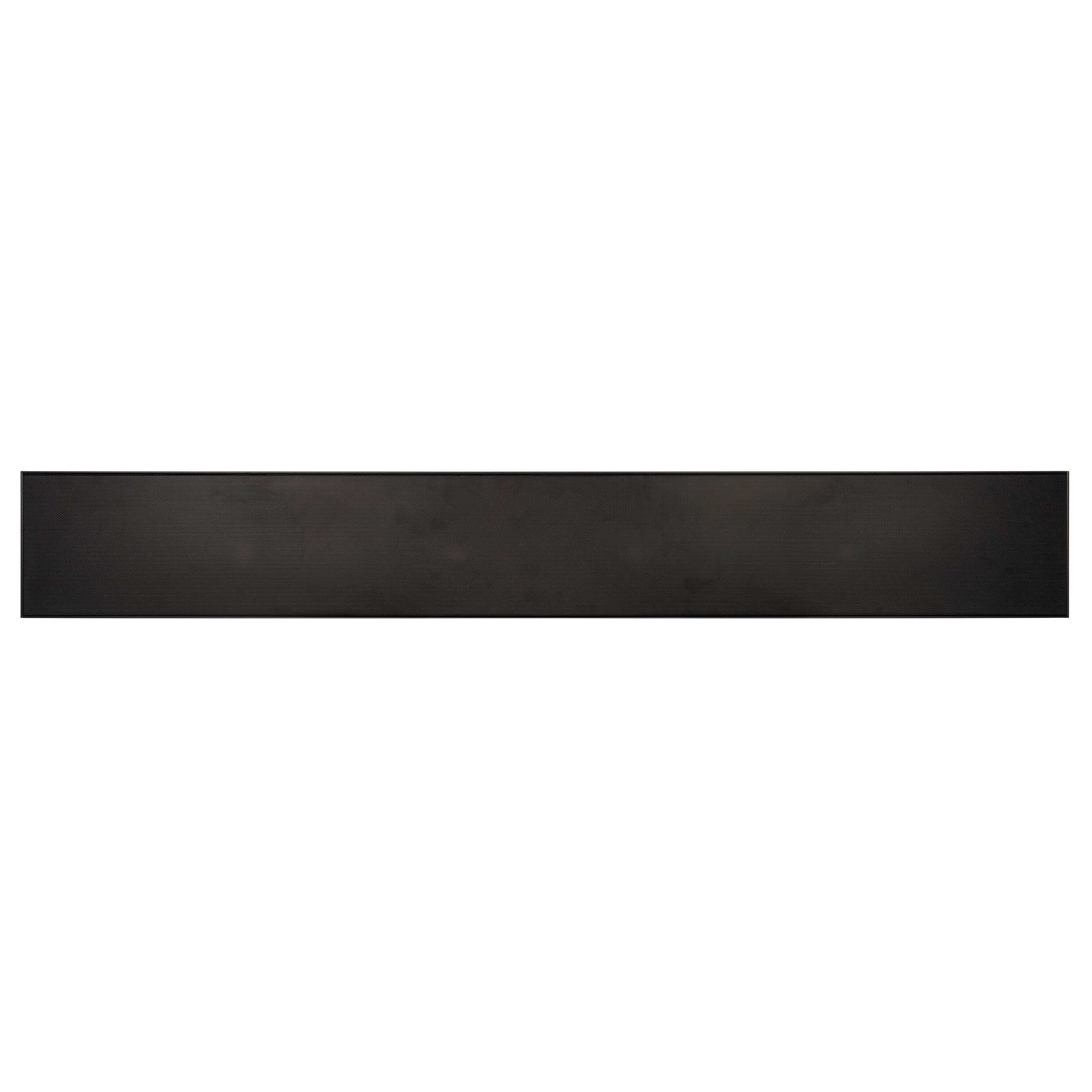

Spl6q lcr front with grille

SPL6Q-LCR - Available downloads

Title: SPL6Q-LCR-BE front grille

Spl6q lcr front with grille
Size Resolution (Right-click: Save link as...)
19.98 KB 900x900 SPL6Q-LCR-front-with-grille.jpg
Spl6q lcr back

SPL6Q-LCR - Available downloads

Title: SPL6Q-LCR rear

Spl6q lcr back
Size Resolution (Right-click: Save link as...)
21.64 KB 900x900 SPL6Q-LCR-back.jpg
Colors web

SPL6Q-LCR - Available downloads

Title: SPL3 series colors

Colors web
Size Resolution (Right-click: Save link as...)
88.41 KB 900x900 Colors_Web.jpg
Screen shot 2023 01 06 at 2.30.02 pm

The James Loudspeaker SoundBar Experience


Maxresdefault

Professional Audio Video Engineering Uses James Loudspeaker products in Nashville Penthouse

Professional Audio Video Engineering (PAVE) in Nashville works with James Loudspeaker to outfit a luxury penthouse with 20 Small Aperture speakers, subwoofer and a 1.5" tall custom SoundBar.

"Our relationship with James Loudspeaker is an integral part of our business," says Stafford. "They don't know the word 'no.' At times I have actually told them that I wish they could train others."

"I can't tell you how many custom products I have done in the last 10 or 15 years with James," says Stafford. "Every time I throw something at them, they throw it back, and it outperforms what we really wanted. If other manufacturers could follow that pattern, I would be very happy."
