SPL6Q-LCR-BE
6.5", LCR SoundBar 4" Depth High-Output
Tags:
The SPL6Q-LCR-BE is James Loudspeaker’s premier full range, high output LCR sound-bar for large format video displays. Representing the ultimate home entertainment sound system, this bar offers a powerful punch in an elegantly designed package. Using the same quad-tweeter technology as the BE reference series, as well as James’ low profile high output aluminum woofers, the SPL6Q-LCR-BE delivers unrivaled audio performance. With an impressive 96dB sensitivity with bass down below 60Hz, this sound bar comes custom fit to each TV, providing seamless integration to any environment. This combination of elegant design and high quality sound makes the SPL6Q-LCR-BE the perfect no-compromise solution for designers and audiophiles alike. The cabinet design features all aircraft grade aluminum for strength, sonic performance, and suitability for outdoor/marine applications. Complete with a custom fit and colored aluminum perforated grille, this SoundBar mounts directly to any TV using our custom PL brackets or by using our universal bracket (BRK.SPL6.UN). Also available for wall mounting or configurable for other custom applications, this ultimate sound bar is perfect for any home entertainment solution. For wall mounting, optional Z-brackets or U-brackets can be purchased separately. Blind through holes are incorporated into each bar for wall mounting.
For outdoor/marine applications, order the SPL6Q-LCR-TI-M.
60Hz-40kHz +/-3dB
4/8 ohms (Config. Dependent)
96dB 2.83V/1m
50 - 200W
(4-6) 6.5" (165mm) Low Profile
(12) 1" (25mm) Beryllium
Aircraft Marine Grade Aluminum
Studio Black, Satin Black, Gloss Black, Dark Titanium, Light Titanium, Mirror Silver
Custom / (Absolute Minimum Width: 56")
4 in (101.60 mm)
8.125 in (206.38 mm)
Product Documents
-
CAD drawings
-
Datasheets/Cutsheets
-
Installation Guides and Info
-
Manuals
Related Documents
-
Brochures
Click photo for download image options
SPL6Q-LCR-BE - Available downloads

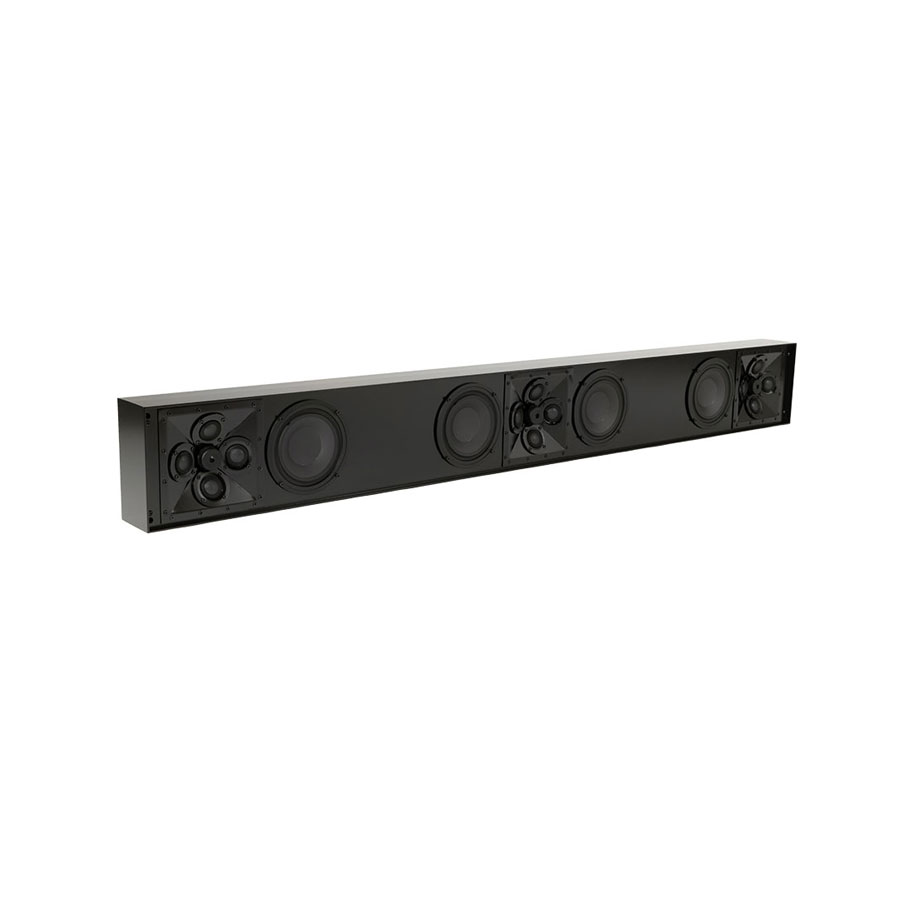

Title: SPL6Q-LCR-BE
| Size | Resolution | (Right-click: Save link as...) |
|---|---|---|
| 26.30 KB | 900x900 | SPL6Q-LCR-BE-front-no-grille.jpg |
SPL6Q-LCR-BE - Available downloads
Title: SPL6Q-LCR-BE Front Grille
| Size | Resolution | (Right-click: Save link as...) |
|---|---|---|
| 21.68 KB | 900x900 | SPL6Q-LCR-BE-front-with-grille.jpg |
SPL6Q-LCR-BE - Available downloads
Title: SPL6Q-LCR-BE Rear
| Size | Resolution | (Right-click: Save link as...) |
|---|---|---|
| 23.00 KB | 900x900 | SPL6Q-LCR-BE-back.jpg |
SPL6Q-LCR-BE - Available downloads
Title: SPL3 series colors
| Size | Resolution | (Right-click: Save link as...) |
|---|---|---|
| 88.41 KB | 900x900 | Colors_Web.jpg |
The James Loudspeaker SoundBar Experience
Professional Audio Video Engineering Uses James Loudspeaker products in Nashville Penthouse
Professional Audio Video Engineering (PAVE) in Nashville works with James Loudspeaker to outfit a luxury penthouse with 20 Small Aperture speakers, subwoofer and a 1.5" tall custom SoundBar.
"Our relationship with James Loudspeaker is an integral part of our business," says Stafford. "They don't know the word 'no.' At times I have actually told them that I wish they could train others."
"I can't tell you how many custom products I have done in the last 10 or 15 years with James," says Stafford. "Every time I throw something at them, they throw it back, and it outperforms what we really wanted. If other manufacturers could follow that pattern, I would be very happy."
