SPL4QLR-P

SPL4QLR-P Powered SoundBar

This product has been discontinued
Technology header click
Tags:

The SPL4QLR-P Powered SoundBar features a James Loudspeaker designed amplifier built into the center of the bar. The powered SoundBar amplifier inputs include AUX/Analog In (RCA Jacks), Coax Digital In (RCA Jack), Optical/Digital In (TosLink), HDMI-ARC, and Bluetooth. The external output is a Subwoofer Pre-Out (RCA Jack). It sets new levels in sound output and wide frequency response. James Loudspeaker has taken their proprietary quad-tweeter technology from the BE reference series and scaled it down to a compact array of four 0.75” (19mm) aluminum dome tweeters to provide a wide dispersion angle. When combined with James’ high output 4” (102mm) woofers, the SPL4QLR-P has bass down below 65Hz, delivering high efficiency, low distortion, and crisp clear audiophile sound. Designed as a left and right channel, the SPL4LR-P is perfect for any stereo system application.

The cabinet design features all aircraft-grade aluminum for strength and sonic performance. Complete with a custom fit and colored stainless steel perforated grille, this SoundBar mounts directly to any TV. James custom fits each SoundBar to fit your TV perfectly to seamlessly integrate this speaker into any entertainment system, delivering a subdued visual effect, designed to be as unobtrusive as possible.

Also available for wall mounting or configurable for other custom applications, this SoundBar combines high-quality audio with elegant design for the perfect home entertainment solution. The SPL5 extrusion is used to construct this bar, and the SPL5 universal bracket (BRK.SPL5.UN) is ordered separately for mounting.

Specifications
Frequency Response

65Hz-24kHz +/-3dB

Max SPL

106-109 dB/1m

Amplifier Power

2 x 100W, Bi-amped

Woofer

(2-8) 4” (102mm) Aluminum

Tweeter

(8) 0.75” (19mm) Aluminum

Enclosure

Aluminum

Finishes

Studio Black (STUDIOBK), Satin Black (STBK), Gloss Black (GLBK), Dark Titanium (DKTI), Light Titanium (LITI), Mirror Silver (MRSLV)

Inputs

AUX/Analog In (RCA Jacks), Coax Digital In (RCA Jack), Optical/Digital In (TosLink), HDMI-ARC, Bluetooth

Outputs

Subwoofer Pre-Out (RCA Jack)

Width

Custom

Depth

3.5" (88.90 mm)

Height

5.75" (146.05 mm)

Click photo for download image options

Spl4qlr p

SPL4QLR-P - Available downloads

Title: SPL4QLR-P

Spl4qlr p
Size Resolution (Right-click: Save link as...)
22.54 KB 900x900 SPL4QLR-P.jpg
Splqlr p amp zoom web

SPL4QLR-P - Available downloads

Title: Powered SoundBar Amplifier

Splqlr p amp zoom web
Size Resolution (Right-click: Save link as...)
41.47 KB 900x900 SPLQLR-P-Amp-Zoom-Web.jpg
M102 rear web

SPL4QLR-P - Available downloads

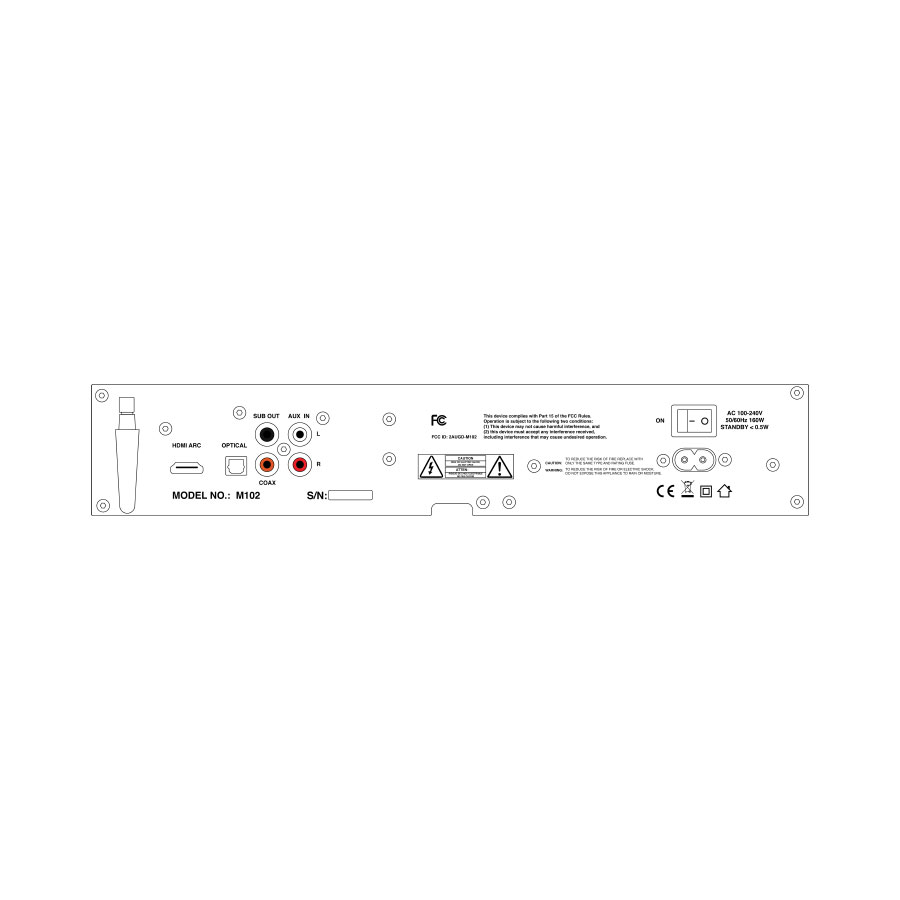

Title: M102 Amp Rear

M102 rear web
Size Resolution (Right-click: Save link as...)
28.93 KB 900x900 M102-Rear-Web.jpg
M102 rear closed web

SPL4QLR-P - Available downloads

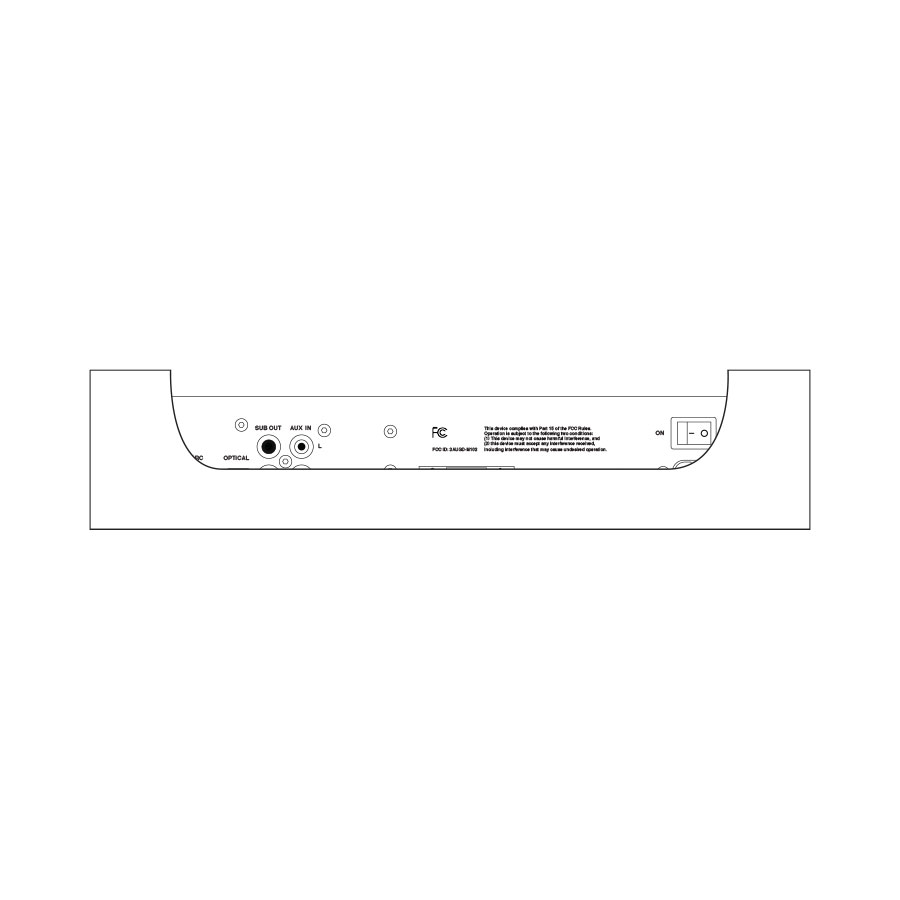

Title: Top View of M102 Amp in SoundBar When Closed.

M102 rear closed web
Size Resolution (Right-click: Save link as...)
20.05 KB 900x900 M102-Rear-Closed-Web.jpg
Remote front web

SPL4QLR-P - Available downloads

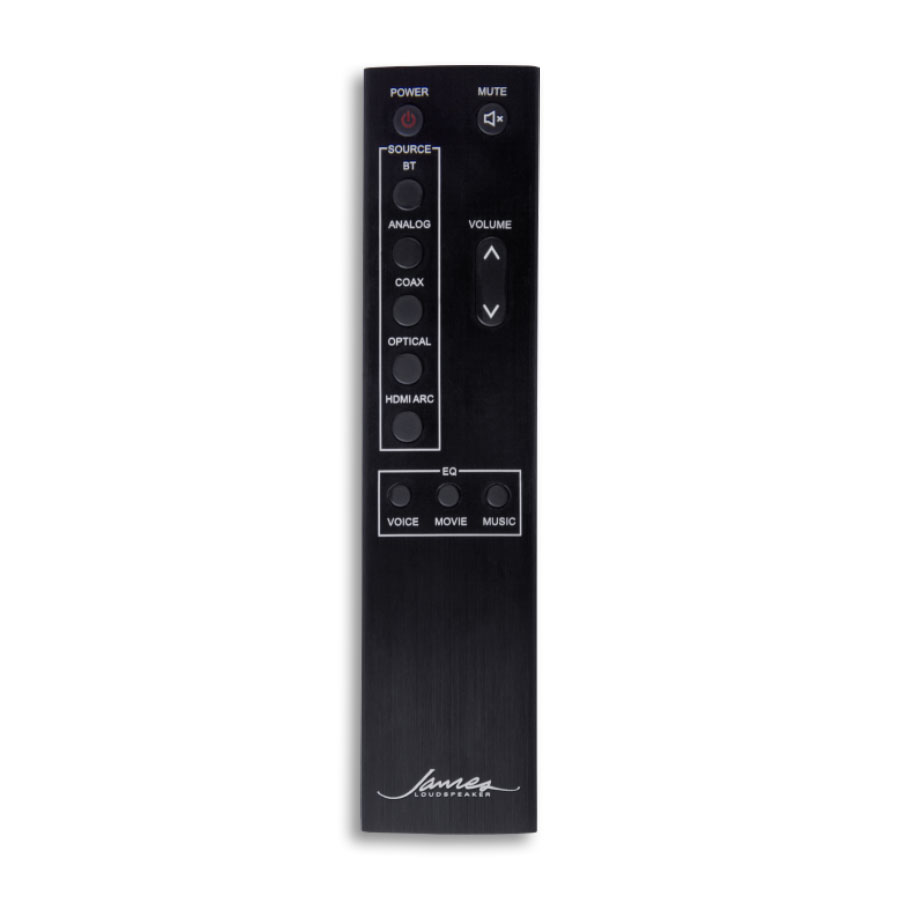

Title: M102 Amplifier Remote

Remote front web
Size Resolution (Right-click: Save link as...)
29.59 KB 900x900 Remote-Front-Web.jpg
