SA68

James SA68 Small Aperture Series speaker

Technology header click
Icon caliper revc
Sa68 0000s 0006 jamessa68n rotate 00239
Tags:
Specifications
Frequency Response

45Hz–25kHz +/-3dB

Nominal Impedance

8 ohms nominal (6 ohms minimum)

Sensitivity

82dB SPL (2.83V/1M)

Crossover

James CDX Crossover Technology

Recommended Power Range

5 watts minimum to 150 watts maximum

Woofer

6.5" (165mm) Thin Ply Carbon Fiber/Rohacell cone, rubber surround

Mid

2.0" (50mm) Thin Ply Carbon Fiber cone, rubber surround

Enclosure

Aircraft Grade Aluminum

Finishes

Grille default finish: Brilliant White (RAL 9003), or any of the 16 standard colors at no additional cost

Input Connector/Terminal

Recessed spring-loaded speaker wire terminals

Mounting Technology

Bracket bracing to joist or studs

Required Mounting Depth

7"

Width

7.75 in (196.85 mm)

Depth

6.375 in (161.92 mm)

Height

15.625 in (396.87 mm)

Shipping Weight

22 lbs (9.98 kg)

UOM

EACH

Product Documents

Related Documents

Click photo for download image options

Sa68 0000s 0006 jamessa68n rotate 00239

SA68 - Available downloads

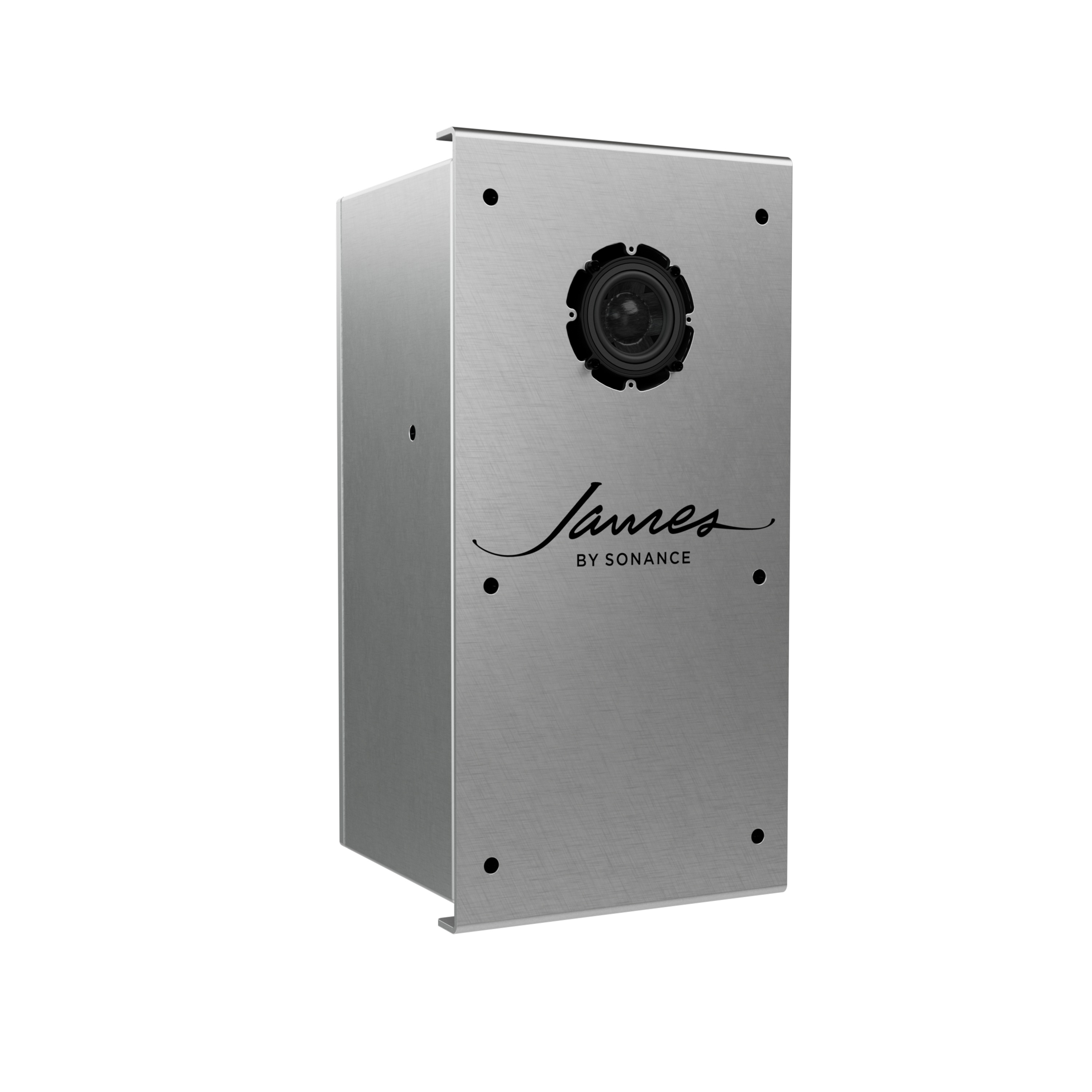

Title: SA68 F 45 R

Sa68 0000s 0006 jamessa68n rotate 00239
Size Resolution (Right-click: Save link as...)
526.11 KB 3000x3000 SA68_0000s_0006_JamesSA68N-Rotate_00239.jpg
Sa68 parts

SA68 - Available downloads

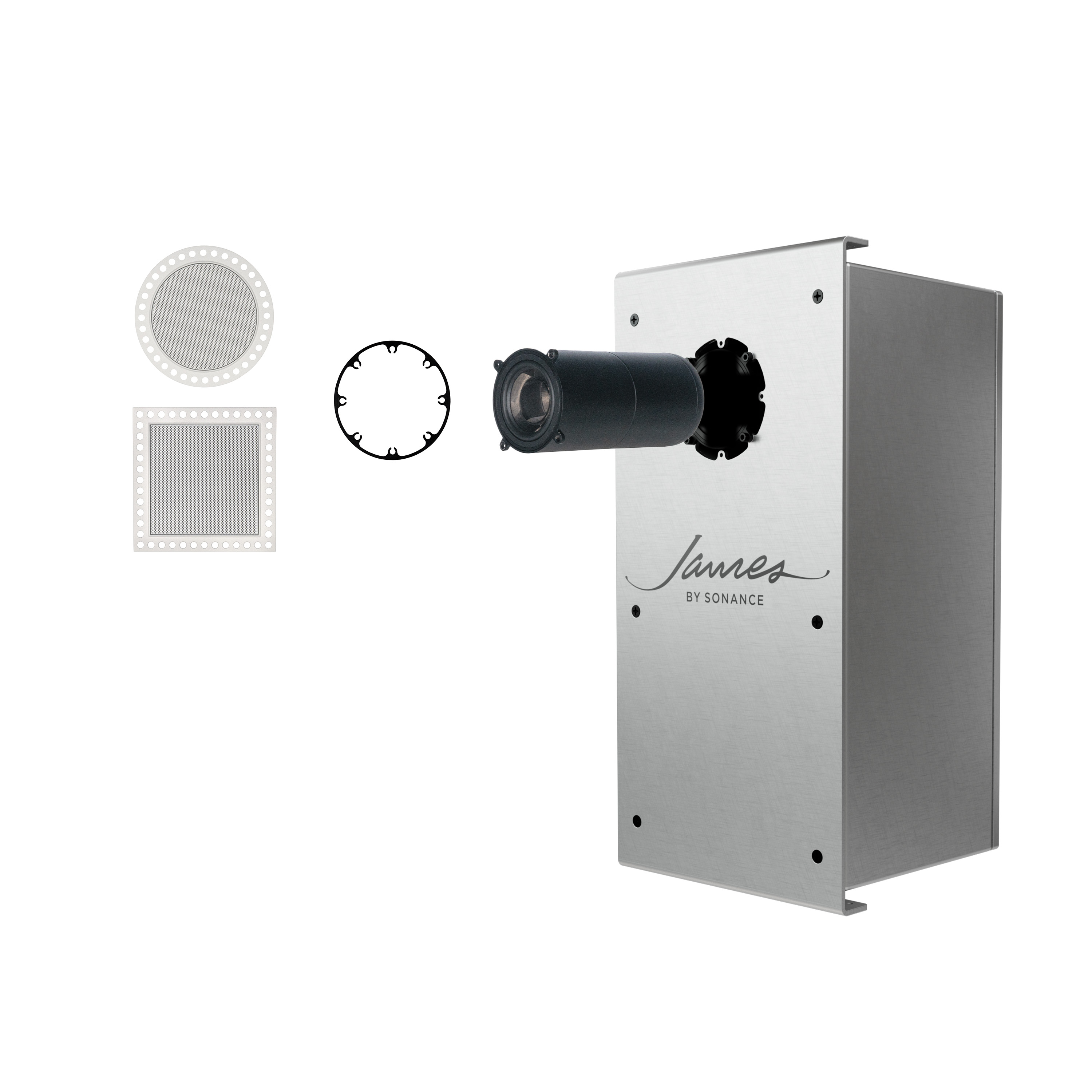

Title: SA68 ENC and MOD

Sa68 parts
Size Resolution (Right-click: Save link as...)
457.44 KB 3000x3000 SA68_Parts.jpg
60597 sa68 james front

SA68 - Available downloads

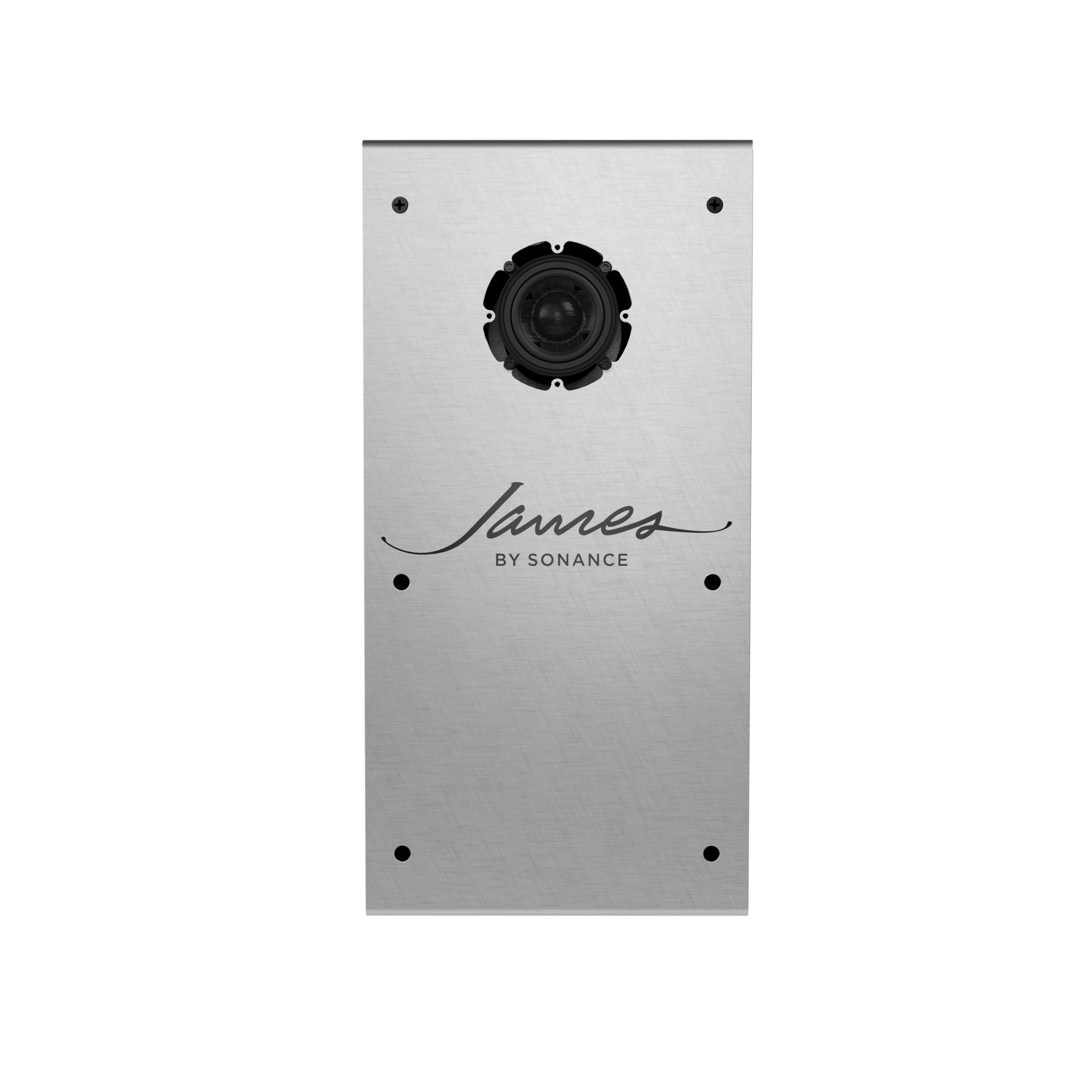

Title: SA68 Front

60597 sa68 james front
Size Resolution (Right-click: Save link as...)
499.13 KB 3000x3000 60597_SA68_JAMES_Front.jpg
Sa68 0000s 0004 jamessa68n rotate 00193

SA68 - Available downloads

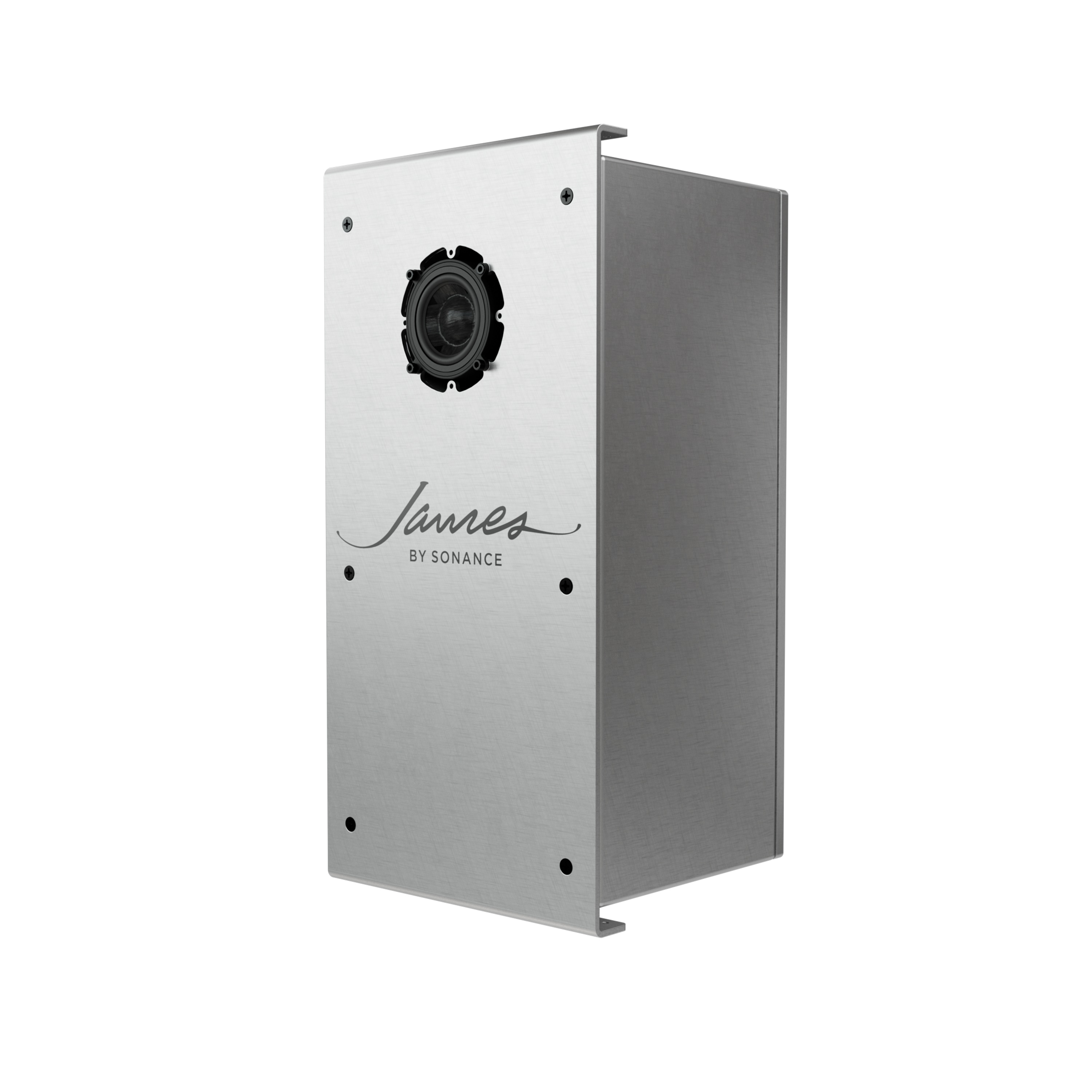

Title: SA68 F 45 L

Sa68 0000s 0004 jamessa68n rotate 00193
Size Resolution (Right-click: Save link as...)
507.28 KB 3000x3000 SA68_0000s_0004_JamesSA68N-Rotate_00193.jpeg
Sa68 0000s 0000 jamessa68n rotate 00164

SA68 - Available downloads

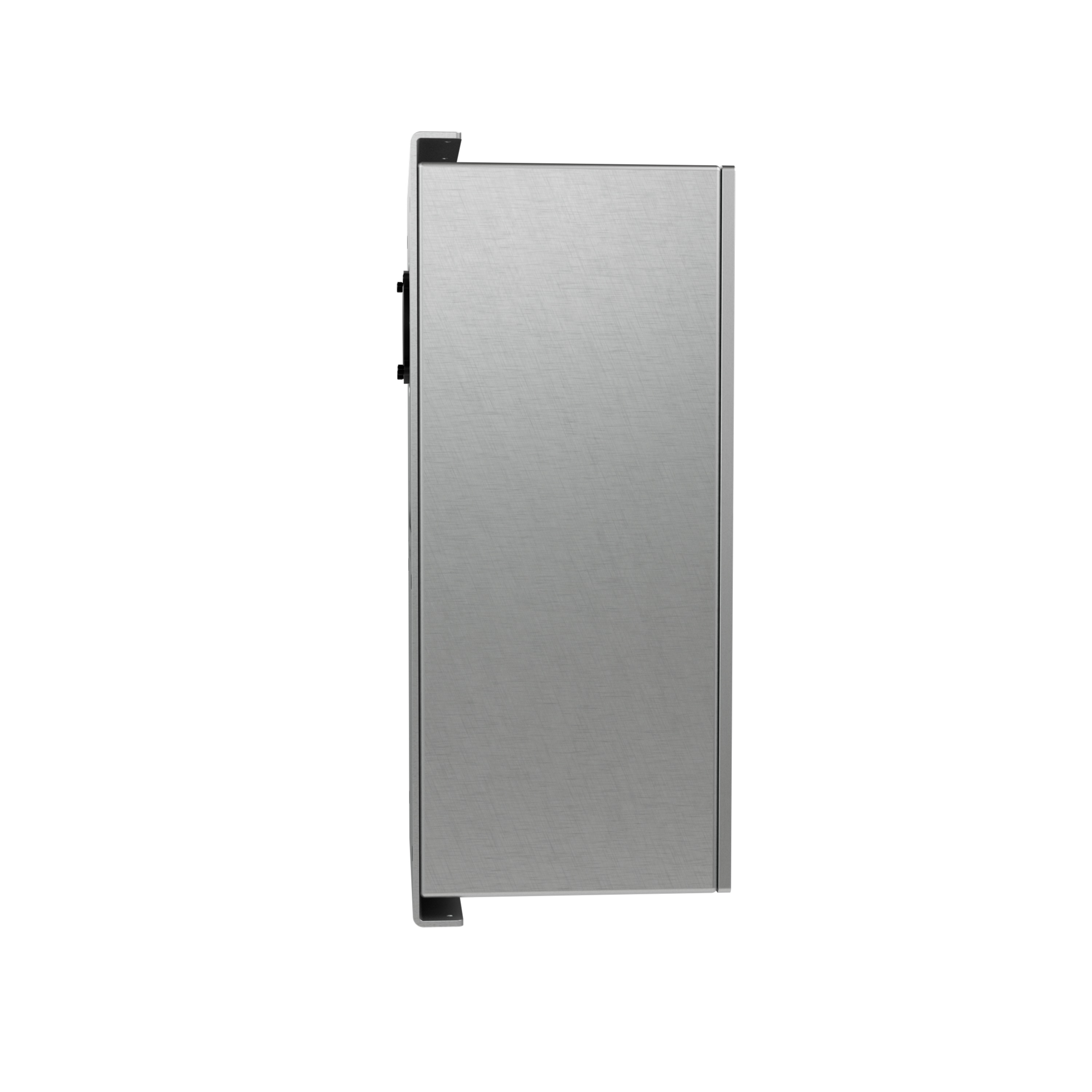

Title: SA68 Side L

Sa68 0000s 0000 jamessa68n rotate 00164
Size Resolution (Right-click: Save link as...)
423.34 KB 3000x3000 SA68_0000s_0000_JamesSA68N-Rotate_00164.jpeg
Sa68 0000s 0003 jamessa68n rotate 00105

SA68 - Available downloads

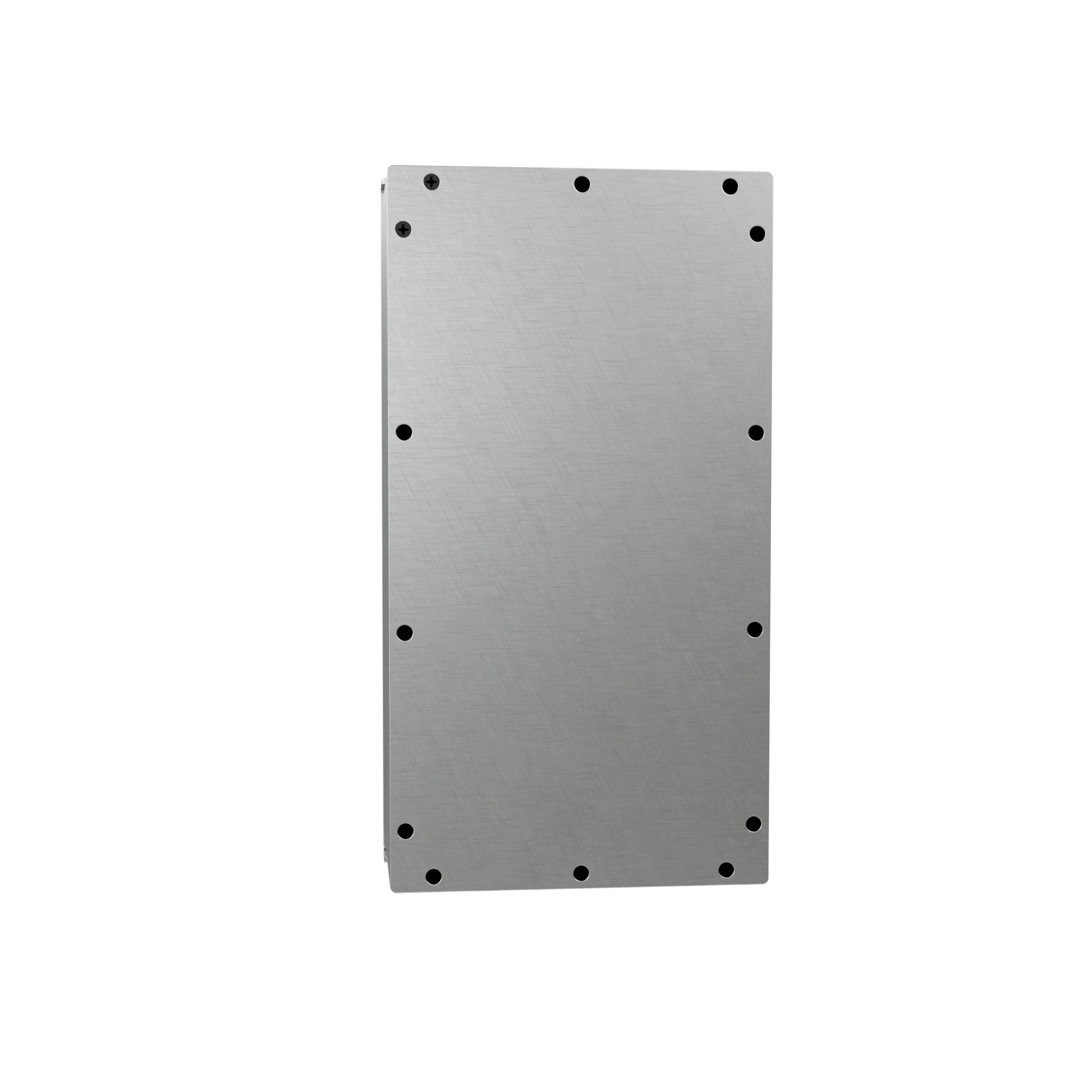

Title: SA68 Back

Sa68 0000s 0003 jamessa68n rotate 00105
Size Resolution (Right-click: Save link as...)
456.50 KB 3000x3000 SA68_0000s_0003_JamesSA68N-Rotate_00105.jpeg
Sa68 0000s 0002 jamessa68n rotate 00069

SA68 - Available downloads

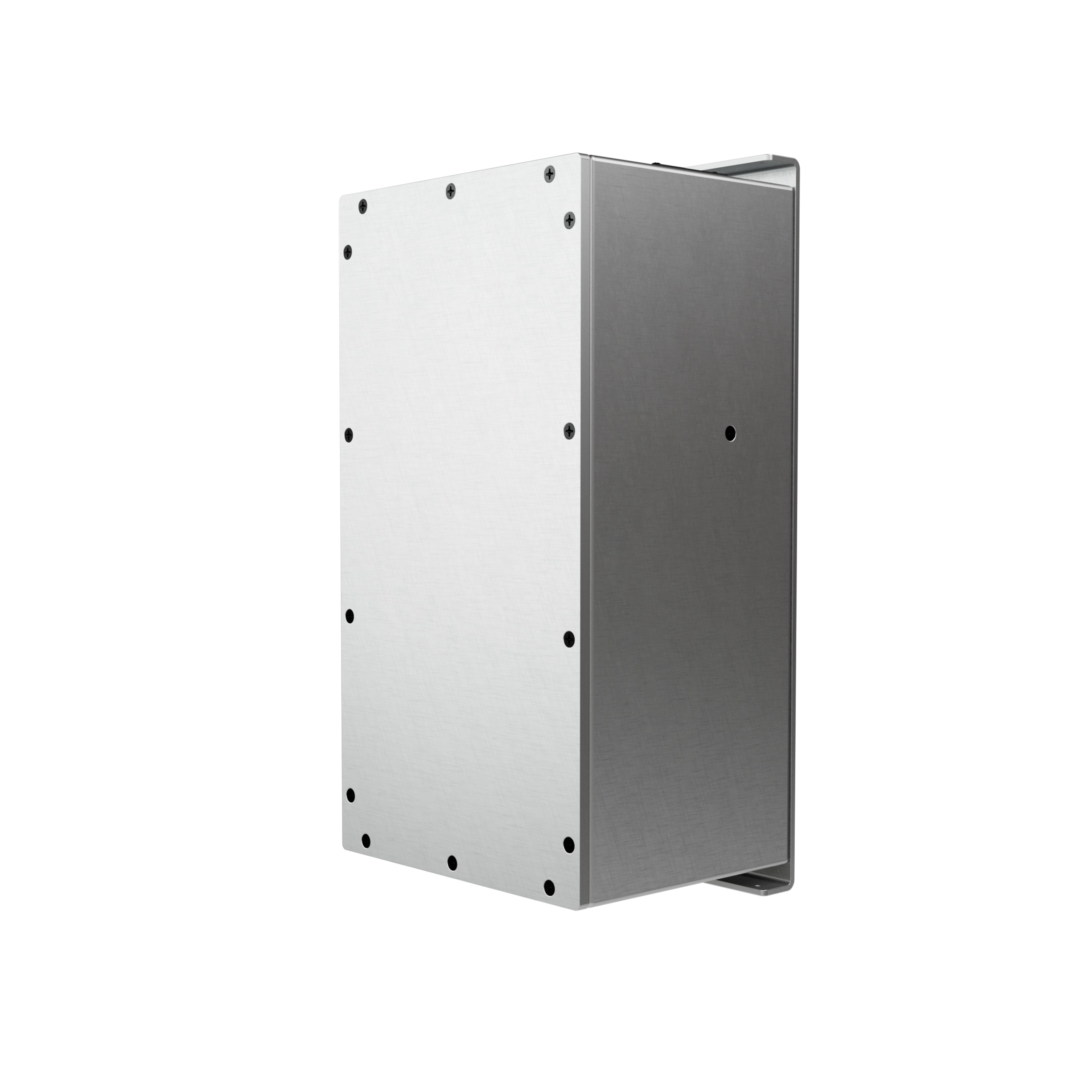

Title: SA68 Back 45 R

Sa68 0000s 0002 jamessa68n rotate 00069
Size Resolution (Right-click: Save link as...)
455.90 KB 3000x3000 SA68_0000s_0002_JamesSA68N-Rotate_00069.jpeg
Sa68 0000s 0001 jamessa68n rotate 00041

SA68 - Available downloads

Title: SA68 Side R

Sa68 0000s 0001 jamessa68n rotate 00041
Size Resolution (Right-click: Save link as...)
423.86 KB 3000x3000 SA68_0000s_0001_JamesSA68N-Rotate_00041.jpg
63sa7 with spacers

SA68 - Available downloads

Title: Spacers in use to set trim kit to material surface

63sa7 with spacers
Size Resolution (Right-click: Save link as...)
17.43 KB 400x400 63sa7_with_spacers.jpg
Wooden trimkit solidsurface front

SA68 - Available downloads

Title: Solid Surface Trim Kit - Wooden Finish - Front

Wooden trimkit solidsurface front
Size Resolution (Right-click: Save link as...)
61.90 KB 900x900 Wooden_Trimkit_SolidSurface_Front.jpg
Wooden trimkit solidsurface iso

SA68 - Available downloads

Title: Solid Surface Trim Kit - Wooden Finish - ISO

Wooden trimkit solidsurface iso
Size Resolution (Right-click: Save link as...)
63.89 KB 900x900 Wooden_Trimkit_SolidSurface_ISO.jpg
Custom trim 1

SA68 - Available downloads

Title: Standard lighting trim made into a grille to match the lights

Custom trim 1
Size Resolution (Right-click: Save link as...)
1.01 MB 596x579 custom_trim_1.png
Sa grille matching lights

SA68 - Available downloads

Title: SA series with custom trims to match lighting fixtures - courtesy Harry's Home Automation

Sa grille matching lights
Size Resolution (Right-click: Save link as...)
148.41 KB 900x512 SA_grille_matching_lights.jpg
Lounge sa walkway

SA68 - Available downloads

Title: Small Aperture Speakers Along Ceiling

Lounge sa walkway
Size Resolution (Right-click: Save link as...)
97.65 KB 600x900 Lounge_SA_Walkway.jpg
Lounge sa

SA68 - Available downloads

Title: Lounge with Hidden SA Installation

Lounge sa
Size Resolution (Right-click: Save link as...)
168.05 KB 600x900 Lounge_SA.jpg
Sa grillterracotta900

SA68 - Available downloads

Title: SA Install in Terra Cotta Ceiling

Sa grillterracotta900
Size Resolution (Right-click: Save link as...)
200.04 KB 1200x900 SA-grillterracotta900.jpg
63sa 7 round grille wood 1

SA68 - Available downloads

Title: 63SA-7

63sa 7 round grille wood 1
Size Resolution (Right-click: Save link as...)
115.06 KB 900x900 63SA-7_round_grille_wood_1.jpg
63sa install sheetrock

SA68 - Available downloads

Title: 63SA-4 round sheetrock installation before 63SAm-7 and grille are installed. Foam protection plug still visible

63sa install sheetrock
Size Resolution (Right-click: Save link as...)
256.71 KB 900x900 63SA-install-sheetrock.jpg
Sa painted

SA68 - Available downloads

Title: 3" SA Drywall Install-Painted Grille

Sa painted
Size Resolution (Right-click: Save link as...)
22.96 KB 1100x900 SA_painted.jpg
Sa wood trim 1

SA68 - Available downloads

Title: Custom wood grilles

Sa wood trim 1
Size Resolution (Right-click: Save link as...)
285.54 KB 900x900 SA_wood_trim_1.jpg
