QX330

3", 2-Way, Full-Range, In-wall Loudspeaker

This product has been discontinued
Technology header click
Tags:

The new QX330 in-wall LCR loudspeaker features a sleek modern appearance with a borderless aluminum grille that protrudes less than 3/16” (5 mm) from the wall. James all new quad tweeter array, incorporating four 0.75" (19 mm) aluminum dome tweeters in a 22.5° offset array for wide dispersion, high power handling and low distortion promises to deliver audiophile-quality where it counts. Combined with two 3" (76 mm) high excursion aluminum woofers, the QX330 has an impressive 89dB sensitivity with bass down to below 70Hz. A multi-element network blends the highs and lows into a smooth and wide response. The sealed cabinet design features all aircraft aluminum construction for strength, sonic performance and suitability for outdoor/marine applications. A stainless steel grille provides protection to the components yet has a subdued visual effect, designed to be as unobtrusive as possible. Paintable grille available by request only. For marine/outdoor applications, order the QX330M.

Specifications
Frequency Response

70Hz-24kHz +/-3dB

Nominal Impedance

4 ohms

Sensitivity

89dB 2.83V/1m

Recommended Power Range

25 - 100W

Woofer

(2) 3" (76mm) High Excursion

Tweeter

(4) 0.75" (19 mm) Aluminum

Enclosure

Aircraft Marine Grade Aluminum

Finishes

White Paintable Grille (Paintable By Request Only)

Cutout

6.5" x 14.375"

Required Mounting Depth

3.875 in (98.42 mm)

Width

7.25 in (184.15 mm)

Depth

4.1 in (104.14 mm)

Height

15 in (381.00 mm)

Grille Height

15.125 in (384.17 mm)

Grille Width

7.25 in (184.15 mm)

Click photo for download image options

Qx330 web

QX330 - Available downloads

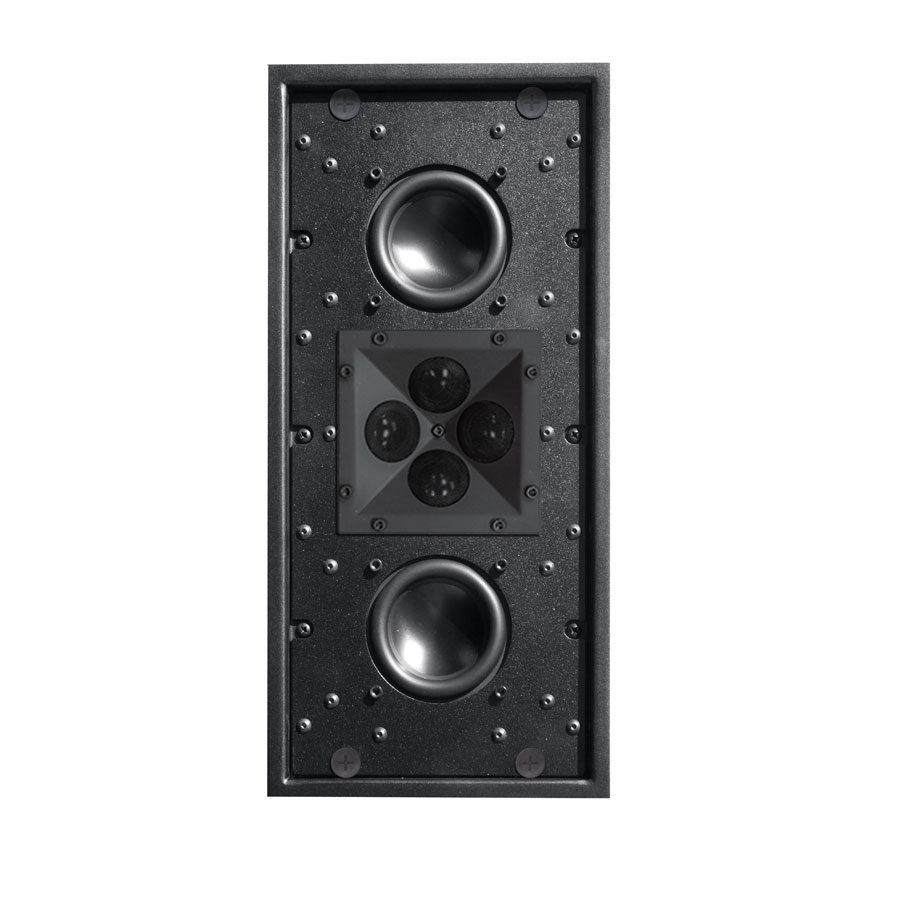

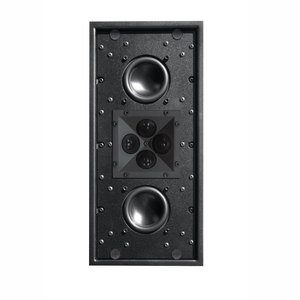

Title: QX330 front

Qx330 web
Size Resolution (Right-click: Save link as...)
65.80 KB 900x900 QX330_web.jpg
Qx terminal web

QX330 - Available downloads

Title: QX Terminals

Qx terminal web
Size Resolution (Right-click: Save link as...)
87.22 KB 900x900 QX-Terminal-web.jpg
Lr img 1757 result

QX330 - Available downloads

Title: GALLERY Architectural-Flush Mount-LR_IMG_1757_result.jpg

Lr img 1757 result
Size Resolution (Right-click: Save link as...)
70.33 KB 600x900 LR_IMG_1757_result.jpg
1.61 MB 3456x5184 IMG_1757_result.jpg
Qx grille rgb

QX330 - Available downloads

Title: QX series grille white

Qx grille rgb
Size Resolution (Right-click: Save link as...)
351.49 KB 900x900 QX_Grille_rgb.jpg
Maxresdefault

QX Series Dry Wall Installation Video

QX Series Installation Video


Maxresdefault

QX Grille Prep for Installation Video

QX Grille Prep for Installation Video


Maxresdefault

CEDIA 2013: QX Series In-wall

CEDIA 2013: QX Series In-wall


Maxresdefault

QX Grille Installation

A tutorial on how to properly install James Loudspeaker's QX style grilles. This is a required step for those looking to custom paint their grilles to match their installation area.
