QX806BE

8", 3-Way LCR, QX-Style, In-wall Loudspeaker

Technology header click
Tags:

The QX806BE in-wall reference loudspeaker features high-output driver components, set into a solid aluminum QX baffle, coupled with James' quad tweeter array, incorporating four 1" (25mm) beryllium dome tweeters in a 22.5° offset array for wide dispersion, high-power handling, and low distortion promises to deliver audiophile-quality where it counts. Combined with two high output 8" (203mm) aluminum cone woofers, the QX806BE has an impressive 96dB sensitivity with bass down to 45Hz. A multi-element network blends the highs and lows into a smooth and ultra-wide response. The sealed cabinet design features all aircraft aluminum construction for strength, sonic performance, and suitability for outdoor/marine applications. For marine version order QX806BE-M. Paintable grille available by request only.

Specifications
Frequency Response

45Hz-40kHz +/-3dB

Nominal Impedance

8 ohms

Sensitivity

96dB 2.83V/1m

Recommended Power Range

50 - 300W

Woofer

(2) 8" (203mm) Aluminum

Tweeter

(4) 1" (25mm) Beryllium

Enclosure

Aircraft Marine Grade Aluminum

Finishes

White Paintable Grille (Paintable By Request Only)

Cutout

13.375" x 32.425"

Required Mounting Depth

3.95 in (100.33 mm)

Width

14.095 in (358.01 mm)

Depth

4.125 in (104.77 mm)

Height

33.145 in (841.88 mm)

Grille Height

33.145 in (841.88 mm)

Grille Width

14.095 in (358.01 mm)

Preconstruction Board (PCB)

QX806BEPB

Flush Mount Preconstruction Board (PCBF)

QX806BE-PBF

Click photo for download image options

Qx830be

QX806BE - Available downloads

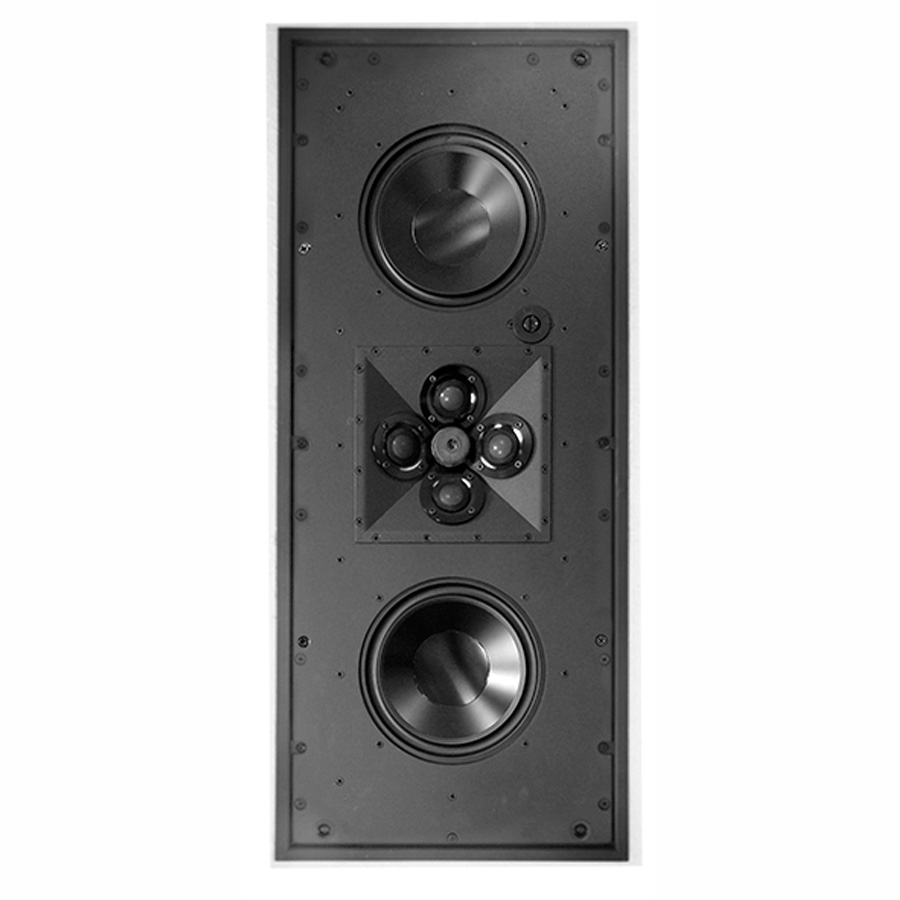

Title: QX806BE front
