QX820

2-Way Full-Range

Technology header click
Tags:

The QX820 is just one of many options in the QX series. Designed for in-wall installation, these speakers are perfect for any indoor or outdoor application where space is limited. This versatile speaker features a sleek modern appearance with a borderless aluminum grille which protrudes less than 3/16” (5mm) from the wall; it can also be mounted completely flush with one of our custom designed pre-construction boards, offering a subdued visual effect and making this speaker as unobtrusive as possible. Paintable grille available by request only. Perfect for home theater and stereo, this speaker’s high power-handling woofer offers high output over a broad range of frequencies while still maintaining a small footprint, offering a great no-compromise solution for designers and audiophiles alike. As with all QX models, this speaker comes equipped with a James Loudspeaker quad-tweeter array which delivers crisp highs over a wide dispersion angle, making these speakers some of the most versatile and effective speakers on the market. The sealed cabinet design features all aircraft grade aluminum for strength, sonic performance, and suitability for outdoor/marine applications.

For marine/outdoor applications, order the QX820M.

Specifications
Frequency Response

65Hz-24kHz±3dB

Nominal Impedance

8 ohms

Sensitivity

93dB 2.83V /1m

Crossover

2-Way

Recommended Power Range

50 - 300W

Woofer

(1) 8” (203 mm) Aluminum

Tweeter

(4) 0.75” (19 mm) Aluminum

Enclosure

Aircraft Marine Grade Aluminum

Finishes

White Paintable Grille (Paintable By Request Only)

Cutout

10.375" x 16.750"

Required Mounting Depth

3.875 in (98.42 mm)

Width

11.11 in (282.19 mm)

Depth

4.125 in (104.77 mm)

Height

17.465 in (443.61 mm)

Grille Height

17.465 in (443.61 mm)

Grille Width

11.11 in (282.19 mm)

Preconstruction Board (PCB)

QX820PB

Flush Mount Preconstruction Board (PCBF)

QX820PBF

Click photo for download image options

C qx820 web

QX820 - Available downloads

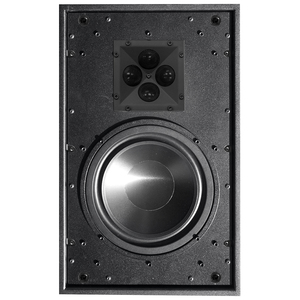

Title: QX820 In-Wall Speaker

C qx820 web
Size Resolution (Right-click: Save link as...)
422.19 KB 900x900 c-QX820_web.jpg
Qx terminal web

QX820 - Available downloads

Title: QX Terminals

Qx terminal web
Size Resolution (Right-click: Save link as...)
87.22 KB 900x900 QX-Terminal-web.jpg
Lr img 1757 result

QX820 - Available downloads

Title: GALLERY Architectural-Flush Mount-LR_IMG_1757_result.jpg

Lr img 1757 result
Size Resolution (Right-click: Save link as...)
70.33 KB 600x900 LR_IMG_1757_result.jpg
1.61 MB 3456x5184 IMG_1757_result.jpg
Qx grille rgb

QX820 - Available downloads

Title: QX series grille white

Qx grille rgb
Size Resolution (Right-click: Save link as...)
351.49 KB 900x900 QX_Grille_rgb.jpg
Maxresdefault

QX Series Dry Wall Installation Video

QX Series Installation Video


Maxresdefault

QX Grille Prep for Installation Video

QX Grille Prep for Installation Video


Maxresdefault

CEDIA 2013: QX Series In-wall

CEDIA 2013: QX Series In-wall


Maxresdefault

QX Grille Installation

A tutorial on how to properly install James Loudspeaker's QX style grilles. This is a required step for those looking to custom paint their grilles to match their installation area.
