QX-SPL5-CS

5.25", Dual Monaural In-wall SoundBar

Technology header click
Tags:

The QX-SPL5-CS speaker pair raises the bar of home entertainment systems, setting new levels in sound output and wide frequency response. The centergy format of this bar features three individual systems to provide left and right channels in either bar and a center channel split between them. Perfect for any home entertainment system, this versatile sound-bar pair can be custom built to match each individual TV, providing seamless integration and elegant design as well as high quality audio. Equipped with high output, low-profile woofers and the signature ultra-wide dispersion QX style quad aluminum tweeter array, this low-visibility sound-bar packs a powerful punch in a small package. Capable of reaching frequencies across a broad range down to below 65Hz, the QX-SPL5-CS offers full range response with an impressive 89dB sensitivity. The in-wall cabinet design features all aircraft grade aluminum for strength, sonic performance, and suitability for outdoor/marine applications. Complete with a matching borderless aluminum perforated grille which sits only 3/16” (5mm) off the wall or completely flush with the addition of a pre-construction board, this speaker pair is both study and reliable as well as elegantly integrated into each system, providing a subdued visual effect, designed to be as unobtrusive as possible. Paintable grille available by request only. Matching in-wall surrounds are available as well, model numbers QX520 and QX530. For outdoor/marine applications, order the QX-SPL5-CS-M.

Specifications
Frequency Response

65Hz-24kHz +/-3dB

Nominal Impedance

8 ohms (Center channel 4/8 ohms - Config. Dependent)

Sensitivity

89dB 2.83V/1m

Recommended Power Range

25 - 100W

Woofer

(3) 5.25" (133mm) Aluminum

Tweeter

(8) 0.75" (19mm) Aluminum

Enclosure

Aircraft Marine Grade Aluminum

Finishes

White Paintable Grille (Paintable By Request Only)

Required Mounting Depth

3.962 in (100.63 mm)

Width

8 in (203.20 mm)

Depth

4.182 in (106.22 mm)

Height

Custom

Grille Height

Custom

Grille Width

8.125 in (206.38 mm)

Click photo for download image options

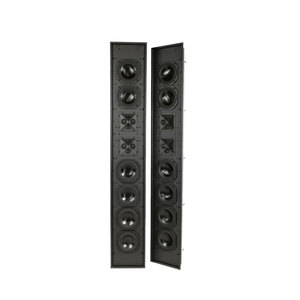

Qx spl5 cs front ismoetric
