The new QX830 in-wall loudspeaker features a sleek modern appearance with a borderless aluminum grille that protrudes less than 3/16” (5 mm) from the wall. James all new quad tweeter array, incorporating four .75" (19 mm) aluminum dome tweeters in a 22.5° offset array for wide dispersion, high power handling and low distortion promises to deliver audiophile-quality where it counts. Combined with two high output 8" (203 mm) aluminum cone woofers, the QX830 has an impressive 95dB sensitivity with bass down to below 60Hz. A multi-element network blends the highs and lows into a smooth and wide response. The sealed cabinet design features all aircraft aluminum construction for strength, sonic performance and suitability for outdoor/marine applications. A stainless steel grille provides protection to the components yet has a subdued visual effect, designed to be as unobtrusive as possible. Paintable grille available by request only. For marine/outdoor applications, order the QX830M.

Product Documents

• CAD drawings

  • QX830 CAD Drawing (PDF)
  • QX830 CAD Drawing (DWG)

• Datasheet/Cutsheet

  • QX830 Datasheet

• Manuals

  • Paintable Grille Instructions

Related Documents

• Brochure

  • Full Line Brochure

• Case Study

  • Case Study - Southwest Florida Cinema with Mavericks System (CS1007)

• Installation

  • PB Installation Guide
  • PBF Installation Guide
  • QX Series Installation

Click photo for download image options

QX830 - Available downloads

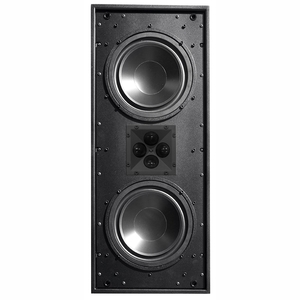

Title: QX830 front

Size	Resolution	(Right-click: Save link as...)
198.75 KB	900x900	QX830.jpg

QX830 - Available downloads

Title: QX Terminals

Size	Resolution	(Right-click: Save link as...)
87.22 KB	900x900	QX-Terminal-web.jpg

QX830 - Available downloads

Title: QX830 lifestyle 2

Size	Resolution	(Right-click: Save link as...)
299.18 KB	900x900	QX830_LIFESTYLE_INDIA1_image_2.JPG

QX830 - Available downloads

Title: QX830 lifestyle 1

Size	Resolution	(Right-click: Save link as...)
310.82 KB	900x900	QX830_LIFESTYLE_INDIA_image_1.JPG

QX830 - Available downloads

Title: GALLERY Architectural-Flush Mount-LR_IMG_1757_result.jpg

Size	Resolution	(Right-click: Save link as...)
70.33 KB	600x900	LR_IMG_1757_result.jpg
1.61 MB	3456x5184	IMG_1757_result.jpg

QX830 - Available downloads

Title: QX series grille white

Size	Resolution	(Right-click: Save link as...)
351.49 KB	900x900	QX_Grille_rgb.jpg
