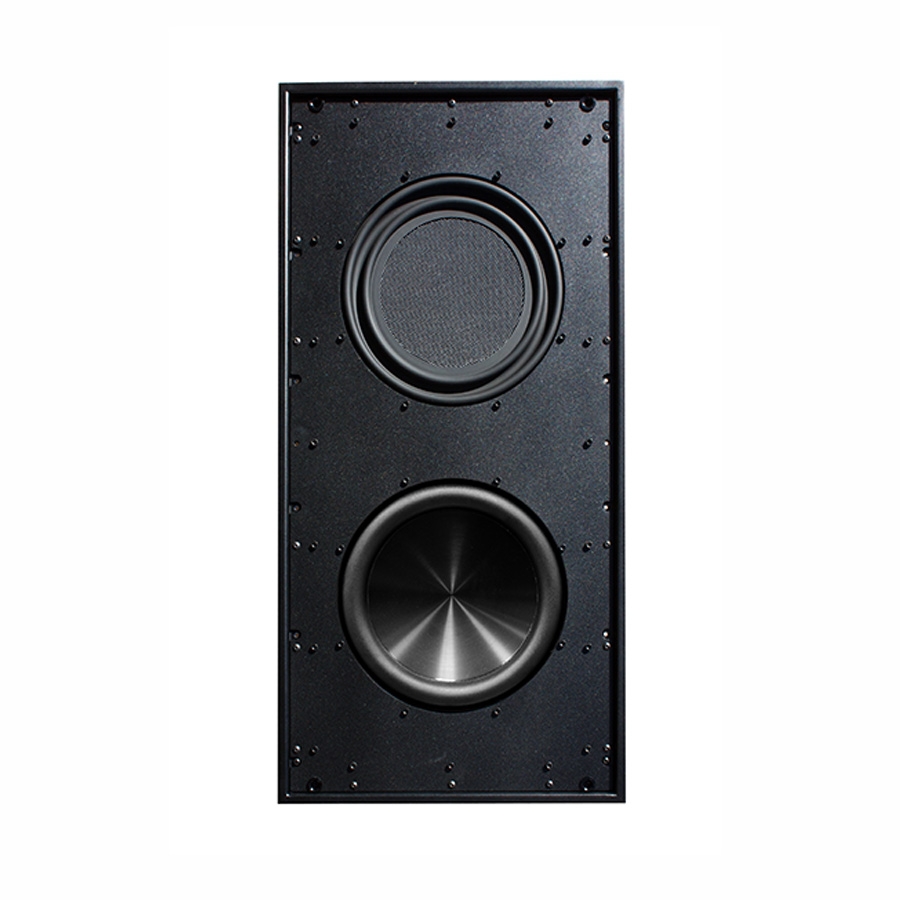

QX1020

10" Dual Shallow Depth Subwoofer

Technology header click
Tags:

The QX1020 is just one option in James Loudspeaker’s series of in wall subwoofers. These unique subs are designed to offer smooth, deep bass to compliment any audio system while maintaining a discrete and space-saving design which doesn’t break the budget. The QX1020 is a compact QX style in-wall subwoofer, using the same mounting system as other QX style speakers. With a single 10” active woofer and a matching 10” passive radiator, this sub offers a great solution for smaller footprint subwoofers while still delivering booming bass. Designed for mounting behind displays, this sub is extremely versatile and easily hidden.

The QX1020 is constructed entirely from aircraft grade aluminum for strength, sonic performance, and durability. Available for marine and outdoor use with the addition of a severe powder coat. Complete with a custom colored, perforated aluminum grille which sits only 3/16” off the wall or completely flush with the addition of a custom James pre-construction board, this sub can easily be integrated into any environment, offering a subdued visual effect, designed to be as unobtrusive as possible.

For marine/outdoor use, order the QX1020M.

Specifications
Frequency Response

22-140Hz +/-3dB

Nominal Impedance

8 ohms

Sensitivity

90dB 2.83V/1m

Cutout

13.563" x 27.750"

Recommended Power Range

150 - 500W

Woofer

(2) 10" (254mm) Active/Passive Laminated Aluminum Honeycomb

Enclosure

Aircraft Marine Grade Aluminum

Finishes

White Paintable Grille

Height

28.46 in (722.88 mm)

Width

14.32 in (363.73 mm)

Depth

4.125 in (104.77 mm)

Required Mounting Depth

3.875 in (98.42 mm)

Grille Height

28.46 in (722.88 mm)

Grille Width

14.32 in (363.73 mm)

Net Weight

26 lbs (11.79 kg)

Recommended Amplifier

M1000

Preconstruction Board (PCB)

QX1020PB

Flush Mount Preconstruction Board (PCBF)

QX1020PBF
